Unsere PV-Anlage im zweiten Betriebsjahr 2024

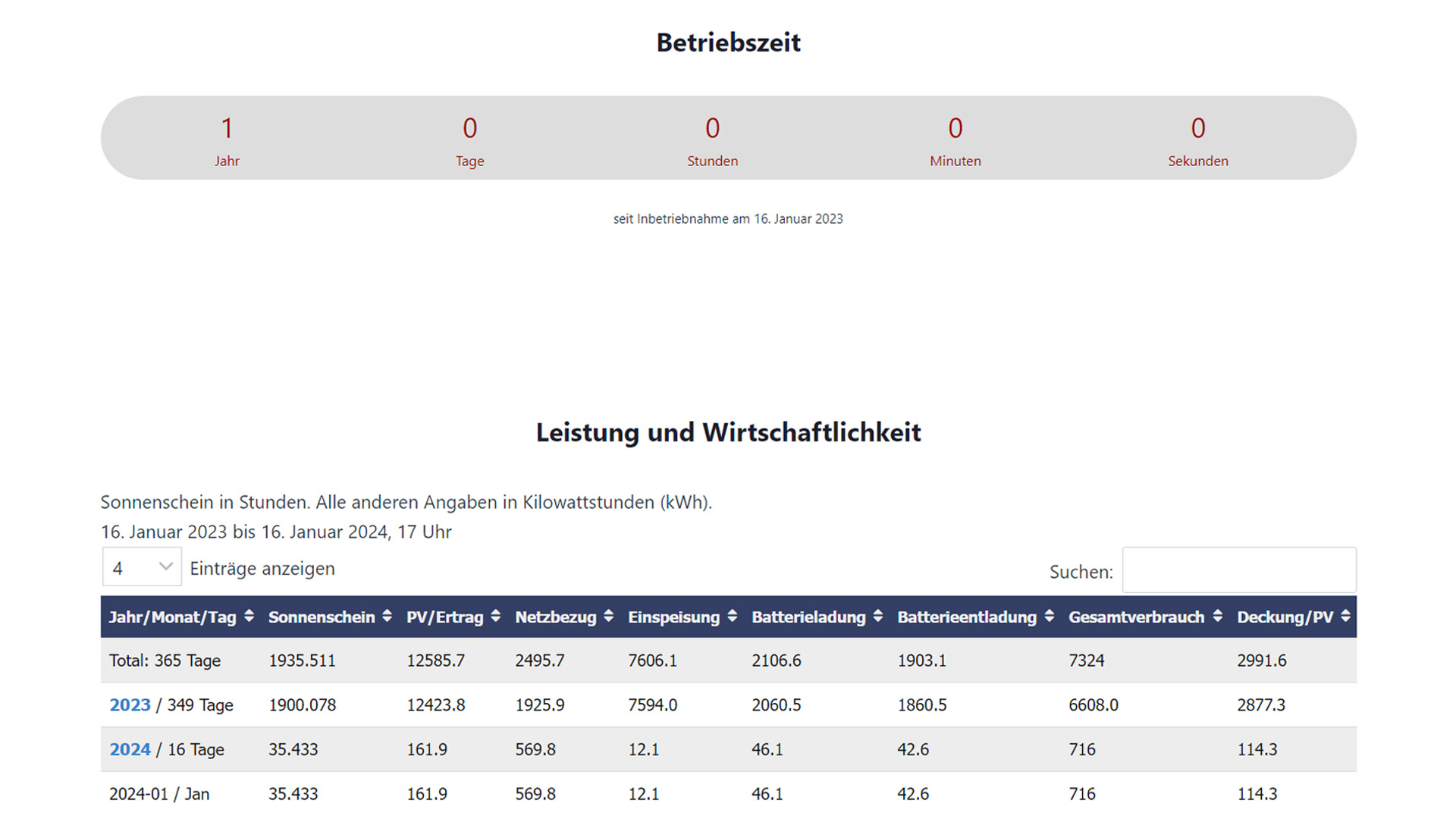

Am Nachmittag des 16. Januar 2024 waren es genau 365 Tage seit unsere PV-Anlage in Betrieb genommen wurde. Während dieser Zeit wurden rund 12.600 kWh Strom produziert. Das entspricht bei der Größe unserer Anlage von 13,175 kWp ganze 956 kWh pro kWp. Nach einem Jahr Betriebszeit bietet sich uns 2024 erstmals die Möglichkeit, die Leistungsfähigkeit der PV-Anlage mit den Zahlen des Vorjahrs 2023 zu vergleichen.
Inhaltsverzeichnis
- Aktuelle Betriebszeit
- Autarkiegrad
- Leistung und Wirtschaftlichkeit
- Technische Daten
- Störungen und Fehlerbehebung

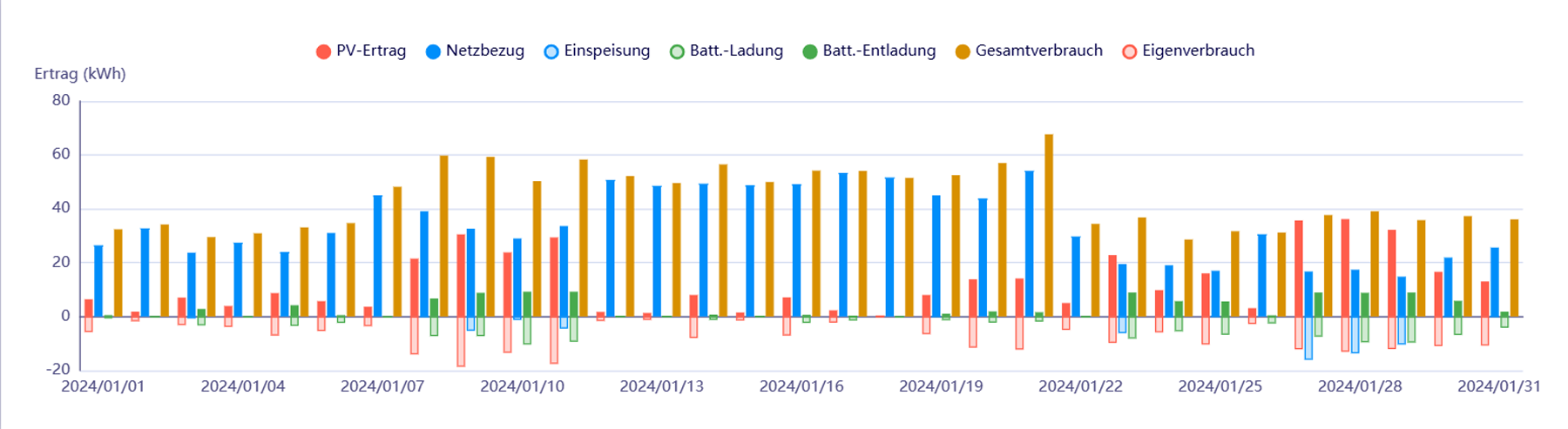

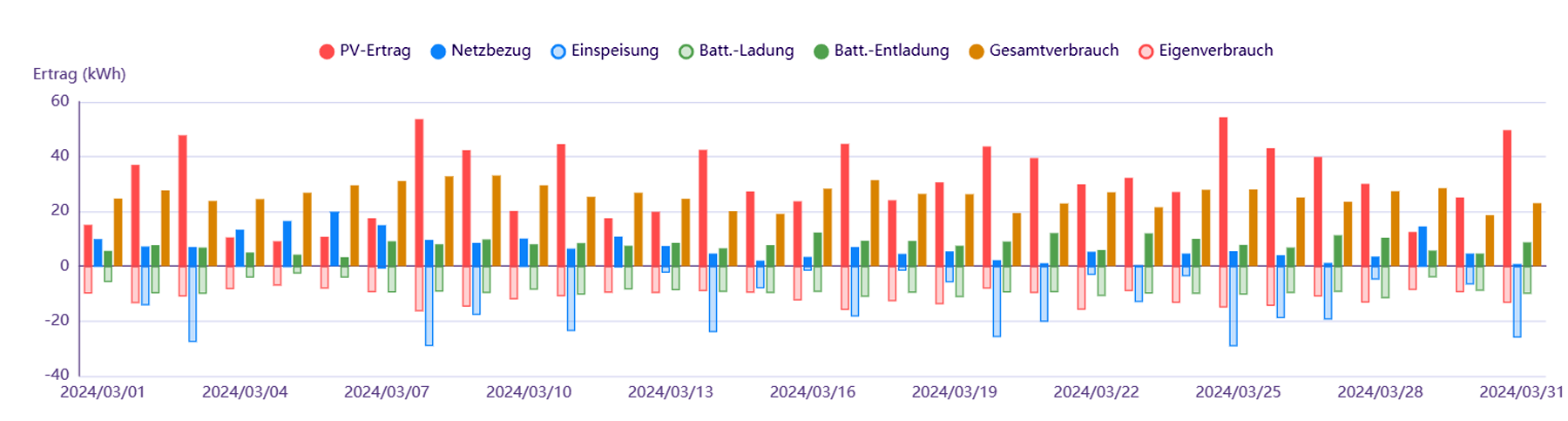

- Säulendiagramme Januar – August

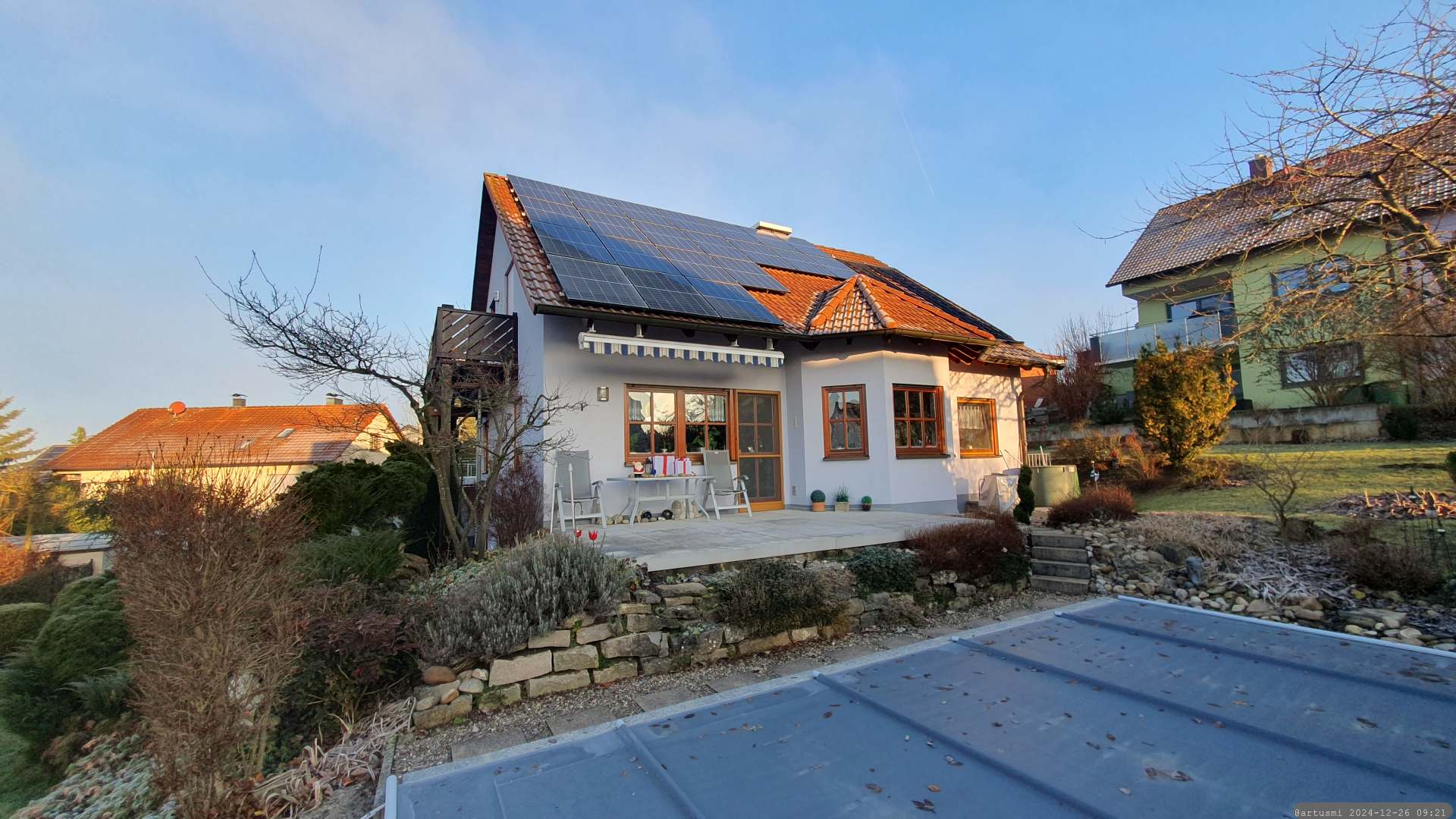

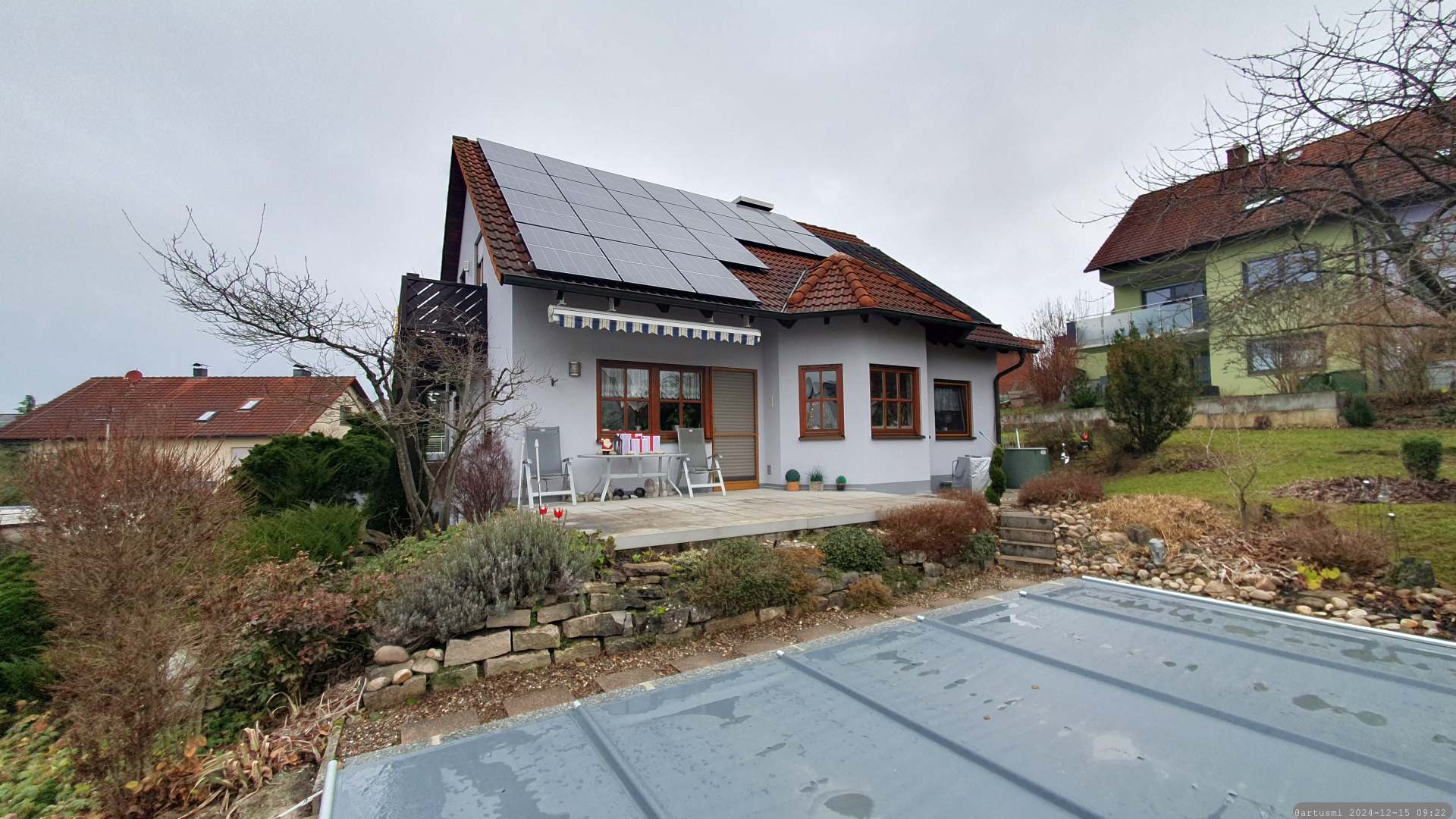

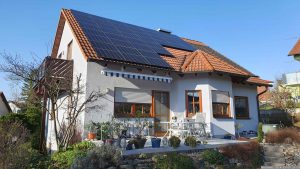

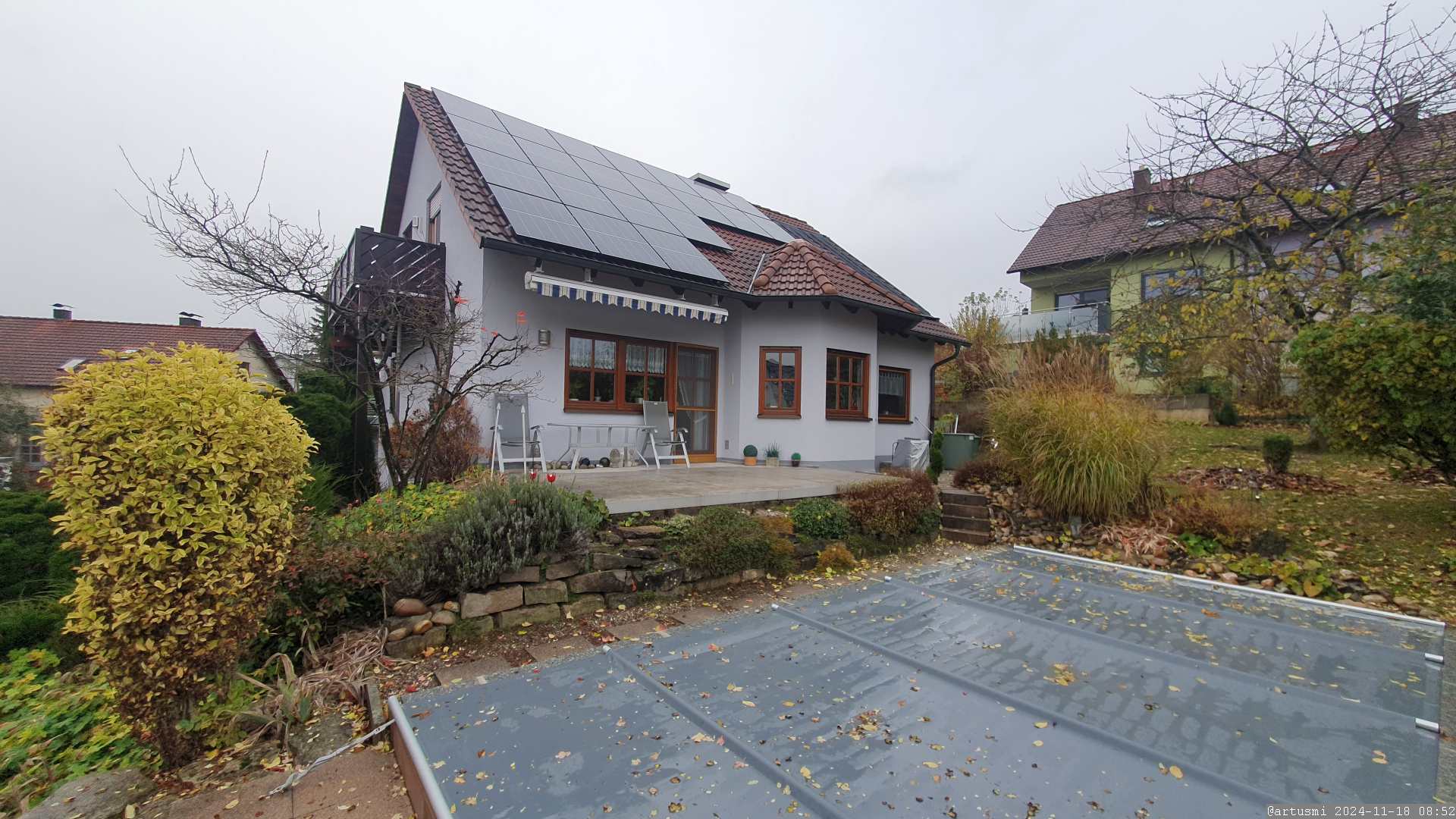

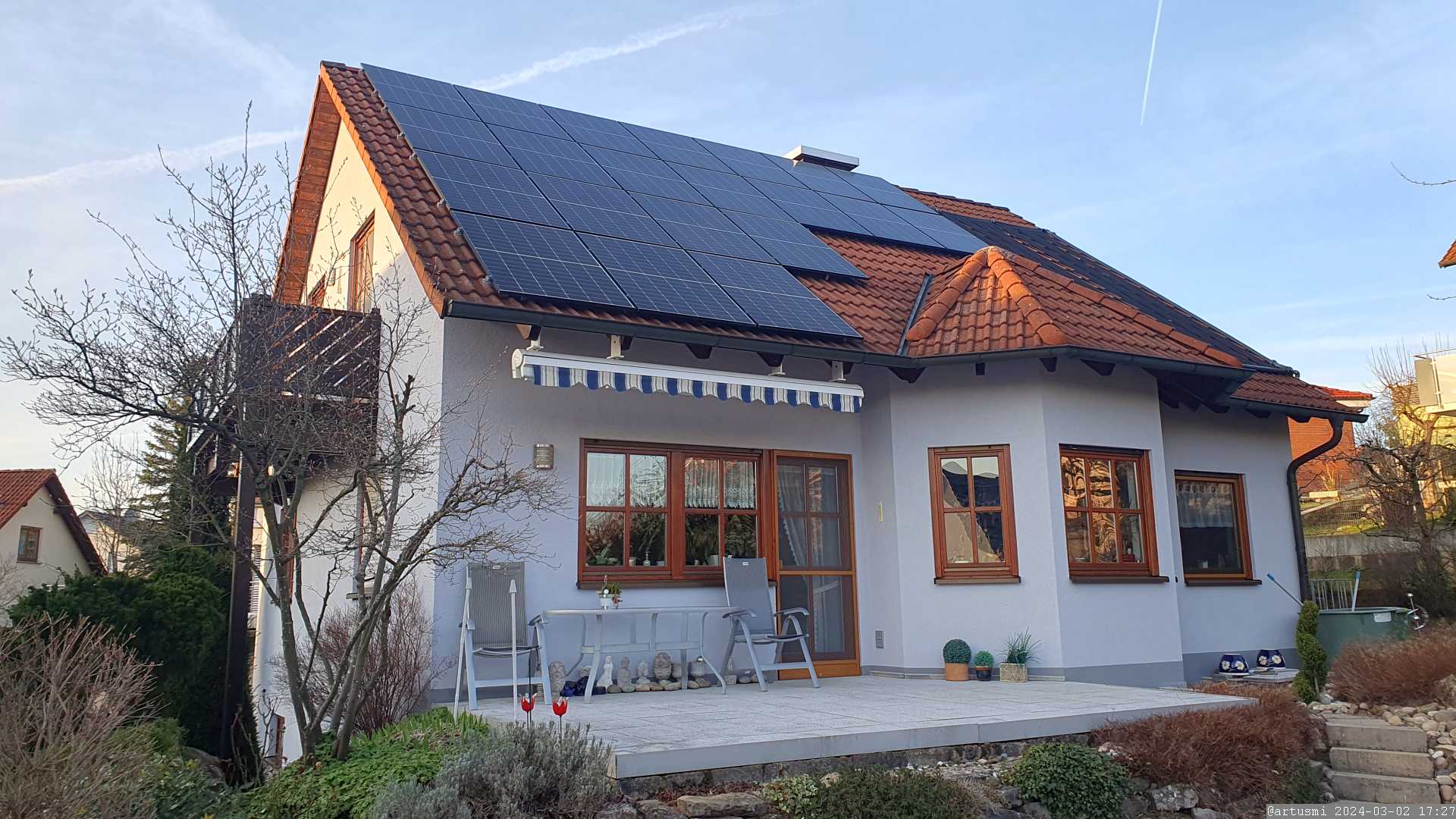

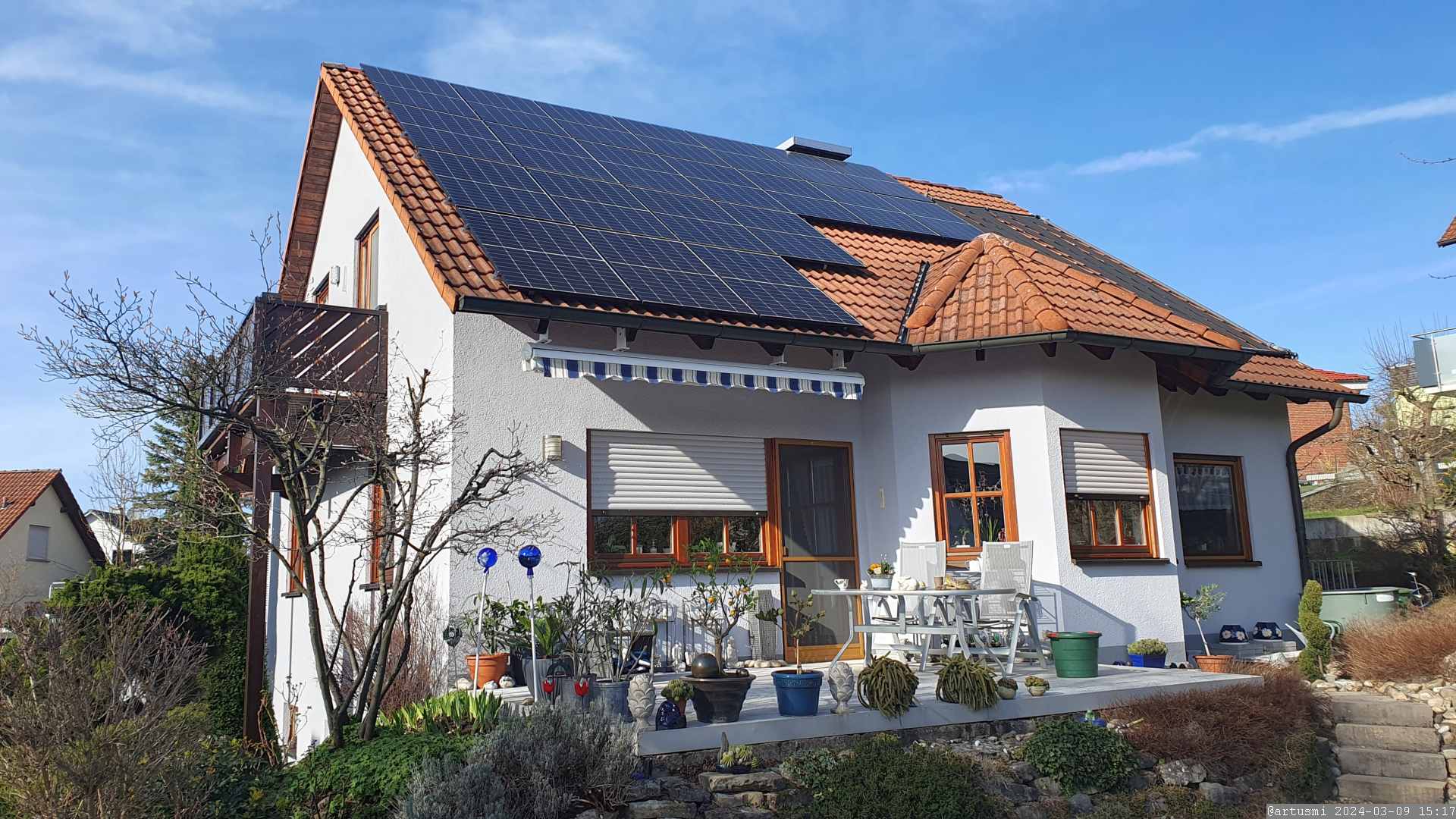

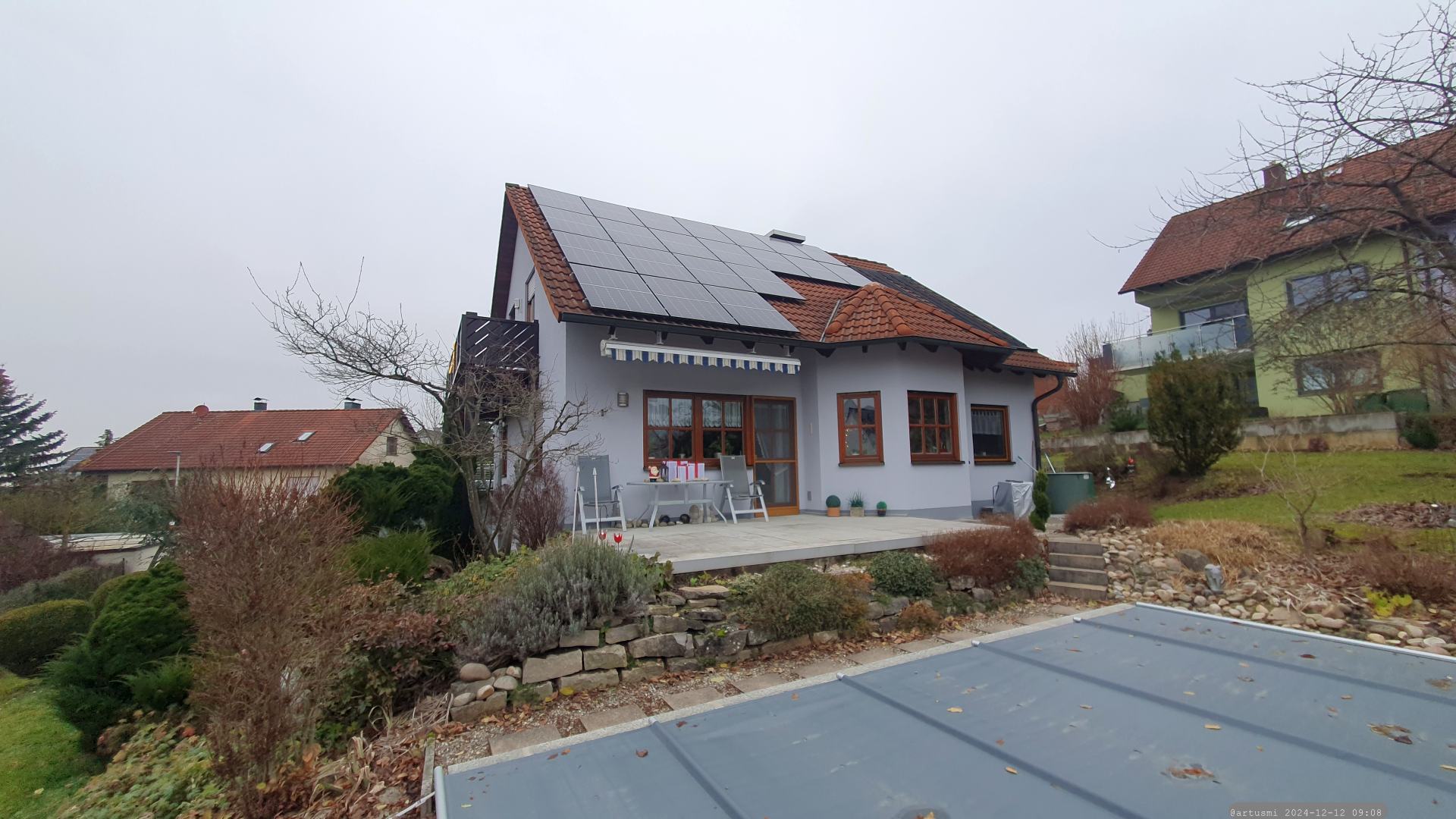

- Bildergalerie
- Weitere Infos
Aktuelle Betriebszeit
seit Inbetriebnahme am 16. Januar 2023
Autarkiegrad
Am 31. August 2024 lag der jahresdurchschnittliche Autarkiegrad bei 67,48 %
- im Januar 2024 waren es 22,00 % (2023: 18,84 %)
- im Februar 2024 waren es 45,37 % (2023: 69,83 %)
- im März 2024 waren es 69,10 % (2023: 85,27 %)
- im April 2024 waren es 88,28 % (2023: 93,77 %)
- im Mai 2024 waren es 94,80 % (2023: 95,64 %)
- im Juni 2024 waren es 94,85 % (2023: 95,90 %)
- im Juli 2024 waren es 96,11 % (2023: 95,56 %)
- im August 2024 waren es 95,67 % (2023: 94,23 %)
Leistung und Wirtschaftlichkeit
16. Januar 2023 – 16. September 2024Sonnenscheindauer in Stunden, ansonsten Kilowattstunden (kWh).
| Jahre/Monate/Tage | Sonnenschein | PV/Ertrag | Netzbezug | Einspeisung | Batterie/Ladung | Entladung | Gesamtverbrauch |
|---|---|---|---|---|---|---|---|
| Jahr 2 / Tag 609 | 3415.173 | 22980 | 3731.4 | 13387.5 | 3717 | 3352.7 | 12964.3 |
| 2023 / 349 Tage | 1900.078 | 12423.8 | 1925.9 | 7594.0 | 2060.5 | 1860.5 | 6608.0 |
| 2024 / Tag 260 | 1515.095 | 10556.2 | 1805.5 | 5793.5 | 1656.5 | 1492.2 | 6356.3 |
| 2024-01 / Jan | 83.799 | 398.8 | 1052 | 62 | 114.5 | 102.1 | 1364.7 |
| 2024-02 / Feb | 59.517 | 520.7 | 435 | 108 | 175.9 | 161.1 | 823.4 |
| 2024-03 / Mär | 135.065 | 974.2 | 220 | 355 | 277.3 | 248.7 | 804.6 |
| 2024-04 / Apr | 183.584 | 1367.2 | 51 | 743 | 227.6 | 202.6 | 648.3 |
| 2024-05 / Mai | 192.677 | 1553.8 | 4 | 1107 | 165.4 | 146.7 | 436.8 |
| 2024-06 / Jun | 219.749 | 1677.9 | 13 | 1095 | 174.6 | 157.6 | 582.4 |
| 2024-07 / Jul | 251.67 | 1755 | 7 | 1071 | 180.1 | 161.5 | 658.9 |
| 2024-08 / Aug | 296.933 | 1703.2 | 13 | 1022 | 204.8 | 189 | 665.2 |
| 2024-09 / Sep | 92.101 | 605.4 | 10.5 | 230.5 | 136.3 | 122.9 | 372 |
| 2024-01-01 | 1.567 | 6.4 | 26.2 | 0.0 | 0.7 | 0.5 | 32.4 |
| 2024-01-02 | 0.000 | 1.8 | 32.5 | 0.0 | 0.1 | 0.0 | 34.2 |
| 2024-01-03 | 0.833 | 7.0 | 23.7 | 0.7 | 3.3 | 2.8 | 29.5 |
| 2024-01-04 | 0.683 | 3.9 | 27.2 | 0.0 | 0.2 | 0.0 | 30.9 |
| 2024-01-05 | 0.617 | 8.7 | 23.7 | 0.0 | 3.5 | 4.2 | 33.1 |
| 2024-01-06 | 0.250 | 5.7 | 31.0 | 0.1 | 2.4 | 0.5 | 34.7 |
| 2024-01-07 | 0.200 | 3.6 | 44.8 | 0.0 | 0.2 | 0.0 | 48.2 |
| 2024-01-08 | 6.283 | 21.5 | 39.1 | 0.2 | 7.3 | 6.7 | 59.8 |
| 2024-01-09 | 7.983 | 30.5 | 32.6 | 5.3 | 7.3 | 8.8 | 59.3 |
| 2024-01-10 | 6.967 | 23.8 | 29.0 | 1.3 | 10.4 | 9.2 | 50.3 |
| 2024-01-11 | 8.000 | 29.4 | 33.6 | 4.5 | 9.4 | 9.2 | 58.3 |
| 2024-01-12 | 0.000 | 1.7 | 50.5 | 0.0 | 0.0 | 0.0 | 52.2 |
| 2024-01-13 | 0.000 | 1.3 | 48.3 | 0.0 | 0.0 | 0.0 | 49.6 |
| 2024-01-14 | 0.517 | 8.0 | 49.1 | 0.0 | 1.3 | 0.7 | 56.5 |
| 2024-01-15 | 0.933 | 1.5 | 48.5 | 0.0 | 0.0 | 0.0 | 50.0 |
| 2024-01-16 | 0.933 | 7.1 | 48.9 | 0.0 | 0.0 | 0.0 | 54.2 |
| 2024-01-17 | 0.000 | 2.3 | 53.1 | 0.0 | 1.5 | 0.2 | 54.1 |
| 2024-01-18 | 0.000 | 0.3 | 51.4 | 0.0 | 0.2 | 0.0 | 51.5 |
| 2024-01-19 | 2.517 | 8.0 | 45.0 | 0.1 | 1.4 | 1.0 | 52.5 |
| 2024-01-20 | 3.050 | 13.8 | 43.6 | 0.0 | 2.3 | 1.9 | 57 |
| 2024-01-21 | 3.933 | 14.1 | 53.9 | 0.0 | 1.9 | 1.6 | 67.7 |
| 2024-01-22 | 0.150 | 5.0 | 29.5 | 0.0 | 0.1 | 0.0 | 34.4 |
| 2024-01-23 | 4.233 | 22.8 | 19.5 | 6.2 | 8.2 | 8.9 | 36.8 |
| 2024-01-24 | 2.383 | 9.8 | 19.0 | 0.4 | 5.5 | 5.7 | 28.6 |
| 2024-01-25 | 4.067 | 16.0 | 17.0 | 0.1 | 6.8 | 5.6 | 31.7 |
| 2024-01-26 | 0.000 | 3.1 | 30.3 | 0.0 | 2.6 | 0.4 | 31.2 |
| 2024-01-27 | 8.517 | 35.7 | 16.7 | 16.1 | 7.5 | 8.9 | 37.7 |
| 2024-01-28 | 8.667 | 36.2 | 17.4 | 13.7 | 9.6 | 8.8 | 39.1 |
| 2024-01-29 | 7.900 | 32.2 | 14.8 | 10.4 | 9.7 | 8.9 | 35.8 |
| 2024-01-30 | 2.283 | 16.6 | 21.9 | 0.1 | 6.9 | 5.8 | 37.3 |
| 2024-01-31 | 0.333 | 21.0 | 30.2 | 2.8 | 4.2 | 1.8 | 36.1 |
| 2024-02-01 | 2.000 | 13.0 | 18.5 | 0.2 | 5.3 | 4.9 | 30.9 |
| 2024-02-02 | 1.733 | 13.5 | 21.1 | 0.0 | 4.7 | 4.2 | 34.1 |
| 2024-02-03 | 0.033 | 7.3 | 25.7 | 0.0 | 0.8 | 0.5 | 32.7 |
| 2024-02-04 | 0.000 | 5.0 | 33.2 | 0.1 | 0.2 | 0.0 | 37.9 |
| 2024-02-05 | 3.650 | 24.4 | 10.4 | 9.1 | 6.9 | 8.1 | 26.9 |
| 2024-02-06 | 0.000 | 7.4 | 24.0 | 0.0 | 0.6 | 1.3 | 32.1 |
| 2024-02-07 | 0.067 | 5.2 | 22.8 | 0.0 | 0.0 | 0.0 | 28.0 |
| 2024-02-08 | 0.000 | 4.6 | 27.6 | 0.0 | 3.8 | 0.8 | 29.2 |
| 2024-02-09 | 0.600 | 10.7 | 16.6 | 0.4 | 4.1 | 3.7 | 26.5 |
| 2024-02-10 | 0.000 | 8.6 | 17.6 | 0.0 | 1.5 | 1.1 | 25.8 |
| 2024-02-11 | 0.000 | 5.5 | 26.0 | 0.1 | 0.1 | 0.0 | 31.3 |
| 2024-02-12 | 0.350 | 8.7 | 22.6 | 0.0 | 2.3 | 1.9 | 30.9 |
| 2024-02-13 | 3.783 | 23.8 | 12.1 | 4.5 | 7.6 | 9.3 | 33.1 |
| 2024-02-14 | 0.000 | 9.2 | 20.5 | 0.0 | 3.4 | 1.7 | 28.0 |
| 2024-02-15 | 3.417 | 22.8 | 9.5 | 5.3 | 9.0 | 8.6 | 26.6 |
| 2024-02-16 | 2.850 | 19.6 | 6.9 | 3.4 | 10.2 | 9.9 | 22.8 |
| 2024-02-17 | 2.300 | 23.0 | 7.3 | 6.6 | 10.8 | 6.1 | 19.0 |
| 2024-02-18 | 3.600 | 22.6 | 3.0 | 0.8 | 10.0 | 12.6 | 27.4 |
| 2024-02-19 | 1.650 | 12.0 | 13.5 | 0.2 | 4.3 | 3.3 | 24.3 |
| 2024-02-20 | 3.683 | 30.9 | 6.3 | 11.4 | 9.2 | 6.4 | 23.0 |
| 2024-02-21 | 2.883 | 24.4 | 5.4 | 5.0 | 9.4 | 10.4 | 25.8 |
| 2024-02-22 | 0.000 | 6.6 | 15.6 | 0.0 | 3.2 | 2.9 | 21.9 |
| 2024-02-23 | 1.200 | 17.5 | 10.6 | 0.1 | 8.3 | 8.9 | 28.6 |
| 2024-02-24 | 4.700 | 25.6 | 11.6 | 5.6 | 10.9 | 9.6 | 30.3 |
| 2024-02-25 | 6.017 | 36.9 | 7.1 | 8.2 | 11.1 | 9.6 | 34.3 |
| 2024-02-26 | 2.167 | 21.0 | 8.5 | 2.7 | 9.7 | 9.4 | 26.5 |
| 2024-02-27 | 1.367 | 19.3 | 11.1 | 1.0 | 9.1 | 8.6 | 28.9 |
| 2024-02-28 | 6.967 | 41.5 | 8.7 | 19.2 | 9.9 | 6.8 | 27.9 |
| 2024-02-29 | 4.500 | 50.1 | 11.2 | 24.1 | 9.5 | 10.5 | 28.7 |
| 2024-03-01 | 0.483 | 15.1 | 9.9 | 0.1 | 5.8 | 5.6 | 24.7 |
| 2024-03-02 | 7.267 | 37.0 | 7.2 | 14.3 | 9.9 | 7.7 | 27.7 |
| 2024-03-03 | 9.383 | 47.8 | 7.0 | 27.7 | 10.1 | 6.8 | 23.8 |
| 2024-03-04 | 0.350 | 10.5 | 13.3 | 0.1 | 4.2 | 5.0 | 24.5 |
| 2024-03-05 | 0.000 | 9.1 | 16.5 | 0.3 | 2.7 | 4.2 | 26.8 |
| 2024-03-06 | 0.833 | 10.7 | 19.7 | 0.0 | 4.2 | 3.3 | 29.5 |
| 2024-03-07 | 1.000 | 17.5 | 15.0 | 0.9 | 9.6 | 9.1 | 31.1 |
| 2024-03-08 | 10.667 | 53.7 | 9.6 | 29.2 | 9.3 | 8.0 | 32.8 |
| 2024-03-09 | 6.550 | 42.4 | 8.5 | 17.8 | 9.8 | 9.8 | 33.1 |
| 2024-03-10 | 0.867 | 20.2 | 10.1 | 0.2 | 8.6 | 8.0 | 29.5 |
| 2024-03-11 | 9.017 | 44.6 | 6.4 | 23.7 | 10.4 | 8.4 | 25.3 |
| 2024-03-12 | 0.433 | 17.5 | 10.8 | 0.5 | 8.5 | 7.5 | 26.8 |
| 2024-03-13 | 0.483 | 19.9 | 7.4 | 2.4 | 8.8 | 8.5 | 24.6 |
| 2024-03-14 | 7.633 | 42.5 | 4.6 | 24.1 | 9.4 | 6.5 | 20.1 |
| 2024-03-15 | 3.267 | 27.3 | 2.0 | 8.1 | 9.8 | 7.7 | 19.1 |
| 2024-03-16 | 1.883 | 23.7 | 3.4 | 1.7 | 9.4 | 12.3 | 28.3 |
| 2024-03-17 | 6.500 | 44.7 | 7.0 | 18.4 | 11.2 | 9.3 | 31.4 |
| 2024-03-18 | 1.900 | 24.1 | 4.5 | 1.7 | 9.7 | 9.2 | 26.4 |
| 2024-03-19 | 6.033 | 30.6 | 5.4 | 5.9 | 11.3 | 7.5 | 26.3 |
| 2024-03-20 | 8.550 | 43.7 | 2.2 | 25.9 | 9.6 | 9.0 | 19.4 |
| 2024-03-21 | 5.833 | 39.5 | 1.1 | 20.3 | 9.5 | 12.1 | 22.9 |
| 2024-03-22 | 2.417 | 29.9 | 5.3 | 3.2 | 10.9 | 5.9 | 27.0 |
| 2024-03-23 | 4.55 | 32.3 | 0.3 | 13.1 | 10.0 | 12.0 | 21.5 |
| 2024-03-24 | 2.850 | 27.1 | 4.6 | 3.7 | 10.1 | 10.0 | 27.9 |
| 2024-03-25 | 7.683 | 54.4 | 5.5 | 29.3 | 10.4 | 7.8 | 28.0 |
| 2024-03-26 | 7.267 | 43.1 | 4.0 | 19.0 | 9.8 | 6.8 | 25.1 |
| 2024-03-27 | 5.850 | 39.9 | 1.2 | 19.5 | 9.4 | 11.3 | 23.5 |
| 2024-03-28 | 5.833 | 30.1 | 3.5 | 4.9 | 11.7 | 10.4 | 27.4 |
| 2024-03-29 | 0.267 | 12.5 | 14.5 | 0.1 | 4.1 | 5.7 | 28.5 |
| 2024-03-30 | 0.983 | 25.1 | 4.6 | 6.7 | 9.0 | 4.6 | 18.6 |
| 2024-03-31 | 8.433 | 57.7 | 4.9 | 32.2 | 10.1 | 8.7 | 23.0 |
| 2024-04-01 | 1.317 | 16.8 | 1.7 | 0.6 | 8.0 | 10.3 | 20.2 |
| 2024-04-02 | 3.950 | 33.8 | 4.7 | 12.2 | 10.3 | 6.2 | 22.2 |
| 2024-04-03 | 0.000 | 16.6 | 0.3 | 0.2 | 6.0 | 10.8 | 21.5 |
| 2024-04-04 | 2.383 | 19.9 | 3.9 | 0.8 | 10.3 | 5.4 | 18.1 |
| 2024-04-05 | 4.850 | 40.9 | 0.1 | 20.1 | 9.8 | 5.5 | 16.6 |
| 2024-04-06 | 10.483 | 58.3 | 0.0 | 40.1 | 5.4 | 6.5 | 19.3 |
| 2024-04-07 | 8.017 | 48.6 | 0.0 | 28.9 | 7.0 | 4.6 | 17.3 |
| 2024-04-08 | 5.600 | 53.9 | 0.1 | 33.5 | 4.9 | 4.2 | 19.8 |
| 2024-04-09 | 2.367 | 29.6 | 0.0 | 15.9 | 5.6 | 5.3 | 13.4 |
| 2024-04-10 | 5.583 | 53.5 | 0.1 | 36.4 | 6.1 | 7.1 | 18.2 |
| 2024-04-11 | 11.050 | 65.3 | 0.0 | 46.6 | 7.2 | 5.8 | 17.3 |
| 2024-04-12 | 11.817 | 66.3 | 0.0 | 49.8 | 6.7 | 4.3 | 14.1 |
| 2024-04-13 | 11.317 | 60.2 | 0.1 | 36.3 | 5.9 | 7.0 | 25.1 |
| 2024-04-14 | 10.267 | 57.6 | 0.1 | 41.5 | 6.8 | 4.2 | 13.6 |
| 2024-04-15 | 4.717 | 39.2 | 0.1 | 24.7 | 5.9 | 8.0 | 16.7 |
| 2024-04-16 | 5.650 | 34.1 | 0.1 | 14.1 | 8.5 | 10.4 | 22.0 |
| 2024-04-17 | 5.467 | 50.8 | 2.7 | 24.4 | 9.9 | 6.2 | 25.4 |
| 2024-04-18 | 5.200 | 35.5 | 1.1 | 10.9 | 11.5 | 8.7 | 22.9 |
| 2024-04-19 | 0.000 | 15.6 | 5.4 | 0.1 | 3.8 | 9.7 | 26.8 |
| 2024-04-20 | 4.583 | 43.4 | 3.9 | 3.3 | 12.1 | 6.9 | 38.8 |
| 2024-04-21 | 0.000 | 11.9 | 14.3 | 0.1 | 2.7 | 6.3 | 29.7 |
| 2024-04-22 | 7.467 | 64.5 | 4.7 | 36.1 | 9.5 | 4.5 | 28.1 |
| 2024-04-23 | 12.283 | 75.0 | 0.1 | 44.6 | 8.5 | 8.4 | 30.4 |
| 2024-04-24 | 1.917 | 31.4 | 3.0 | 4.5 | 12.3 | 9.2 | 26.8 |
| 2024-04-25 | 1.633 | 36.9 | 0.6 | 8.1 | 11.5 | 11.7 | 29.6 |
| 2024-04-26 | 4.383 | 38.4 | 0.1 | 10.3 | 10.0 | 6.9 | 25.1 |
| 2024-04-27 | 12.250 | 70.5 | 0.1 | 49.5 | 6.9 | 5.8 | 20.0 |
| 2024-04-28 | 8.233 | 56.0 | 0.1 | 35.7 | 5.5 | 5.0 | 19.9 |
| 2024-04-29 | 8.883 | 63.4 | 0.0 | 48.6 | 4.6 | 4.1 | 14.3 |
| 2024-04-30 | 11.917 | 79.3 | 3.6 | 65.1 | 4.4 | 3.6 | 15.1 |
| 2024-05-01 | 11.71 | 65.5 | 0.1 | 45.6 | 4.5 | 4.2 | 19.7 |
| 2024-05-02 | 6.950 | 51.0 | 0.2 | 38.1 | 5.2 | 7.0 | 14.9 |
| 2024-05-03 | 1.150 | 31.3 | 0.0 | 15.9 | 8.7 | 5.2 | 11.9 |
| 2024-05-04 | 6.183 | 51.1 | 0.0 | 33.1 | 5.0 | 4.3 | 17.3 |
| 2024-05-05 | 3.333 | 38.7 | 0.0 | 24.9 | 5.2 | 4.5 | 13.1 |
| 2024-05-06 | 0.167 | 27.5 | 0.1 | 16.0 | 5.6 | 6.3 | 12.3 |
| 2024-05-07 | 0.000 | 19.6 | 0.2 | 4.6 | 8.3 | 7.0 | 13.9 |
| 2024-05-08 | 0.333 | 22.3 | 0.1 | 8.3 | 7.3 | 6.0 | 12.8 |
| 2024-05-09 | 12.467 | 75.0 | 0.0 | 59.0 | 4.6 | 4.1 | 15.5 |
| 2024-05-10 | 12.300 | 73.0 | 0.0 | 57.9 | 4.8 | 3.8 | 14.1 |
| 2024-05-11 | 13.667 | 72.3 | 0.0 | 55.5 | 4.5 | 4.2 | 16.5 |
| 2024-05-12 | 12.917 | 74.4 | 0.0 | 62.7 | 4.3 | 3.5 | 10.9 |
| 2024-05-13 | 12.550 | 73.4 | 0.0 | 54.4 | 6.3 | 5.2 | 17.9 |
| 2024-05-14 | 13.300 | 77.0 | 0.1 | 60.2 | 4.0 | 3.6 | 16.5 |
| 2024-05-15 | 10.950 | 68.2 | 0.0 | 54.1 | 4.4 | 6.2 | 15.9 |
| 2024-05-16 | 3.767 | 46.8 | 0.0 | 30.7 | 7.5 | 4.3 | 12.9 |
| 2024-05-17 | 0.000 | 16.9 | 0.1 | 4.8 | 5.8 | 6.1 | 12.5 |
| 2024-05-18 | 1.367 | 38.7 | 0.0 | 21.2 | 7.0 | 5.4 | 15.9 |
| 2024-05-19 | 4.950 | 48.9 | 0.1 | 35.3 | 5.8 | 5.3 | 13.2 |
| 2024-05-20 | 11.833 | 66.8 | 0.0 | 51 | 5.1 | 4.2 | 14.9 |
| 2024-05-21 | 1.350 | 31.9 | 0.0 | 20.3 | 4.6 | 4.7 | 11.7 |
| 2024-05-22 | 4.067 | 45.5 | 0.0 | 30.1 | 4.6 | 3.7 | 14.5 |
| 2024-05-23 | 9.183 | 63.6 | 0.2 | 50.6 | 4.5 | 6.7 | 15.4 |
| 2024-05-24 | 1.533 | 36.0 | 0.1 | 20.9 | 8.1 | 4.3 | 11.4 |
| 2024-05-25 | 7.250 | 50.8 | 0.1 | 38.5 | 1.8 | 1.9 | 12.5 |
| 2024-05-26 | 10.767 | 65.2 | 0.0 | 50.4 | 4.9 | 3.8 | 13.7 |
| 2024-05-27 | 3.817 | 41.9 | 0.0 | 27.8 | 4.7 | 4.5 | 13.9 |
| 2024-05-28 | 10.600 | 66.2 | 0.1 | 51.4 | 4.5 | 3.5 | 13.9 |
| 2024-05-29 | 1.233 | 38.6 | 0.0 | 28.6 | 3.8 | 3.4 | 9.6 |
| 2024-05-30 | 2.900 | 44.1 | 0.1 | 29.1 | 4.9 | 4.4 | 14.6 |
| 2024-05-31 | 0.083 | 31.6 | 2.4 | 26.0 | 5.1 | 5.4 | 13.0 |
| 2024-06-01 | 0.417 | 12.6 | 0.1 | 0.2 | 6.8 | 6.4 | 12.1 |
| 2024-06-02 | 6.233 | 41.0 | 0.0 | 25.6 | 5.5 | 3.8 | 13.7 |
| 2024-06-03 | 3.000 | 40.7 | 0.0 | 29.1 | 3.9 | 3.5 | 11.2 |
| 2024-06-04 | 8.450 | 69.2 | 0.0 | 51.3 | 4.0 | 3.4 | 17.3 |
| 2024-06-05 | 3.183 | 39.9 | 0.1 | 24.2 | 5.1 | 4.6 | 15.3 |
| 2024-06-06 | 9.217 | 61.0 | 0.0 | 45.7 | 4.6 | 3.9 | 14.6 |
| 2024-06-07 | 11.050 | 71.8 | 0.1 | 58.7 | 4.2 | 3.9 | 12.9 |
| 2024-06-08 | 11.550 | 78.8 | 0.0 | 64.1 | 4.0 | 3.7 | 14.4 |
| 2024-06-09 | 11.983 | 75.0 | 0.1 | 56.7 | 4.8 | 3.9 | 17.5 |
| 2024-06-10 | 9.250 | 66.5 | 0.0 | 50.8 | 5.3 | 5.3 | 15.7 |
| 2024-06-11 | 4.500 | 53.7 | 0.0 | 41.6 | 4.8 | 3.6 | 10.9 |
| 2024-06-12 | 10.783 | 60.9 | 0.1 | 47.1 | 3.9 | 3.5 | 13.5 |
| 2024-06-13 | 10.683 | 72.7 | 0.0 | 56.4 | 3.8 | 3.2 | 15.7 |
| 2024-06-14 | 0.867 | 25.4 | 0.1 | 13.0 | 5.2 | 4.7 | 12.0 |
| 2024-06-15 | 6.517 | 59.3 | 0.0 | 43.7 | 5.2 | 4.3 | 14.7 |
| 2024-06-16 | 5.867 | 60.6 | 0.0 | 47.8 | 3.6 | 4.3 | 13.5 |
| 2024-06-17 | 3.550 | 43.5 | 0.1 | 29.1 | 6.5 | 4.9 | 12.9 |
| 2024-06-18 | 11.5 | 71.4 | 0.0 | 58.1 | 3.6 | 3.4 | 13.1 |
| 2024-06-19 | 0.483 | 24.8 | 0.3 | 2.1 | 8.3 | 13.4 | 28.1 |
| 2024-06-20 | 3.233 | 42.5 | 2.3 | 5.5 | 13.1 | 8.1 | 34.3 |
| 2024-06-21 | 2.733 | 33.3 | 5.7 | 0.8 | 11.7 | 9.7 | 36.2 |
| 2024-06-22 | 6.433 | 53.9 | 0.0 | 6.5 | 11.7 | 10.1 | 45.8 |
| 2024-06-23 | 9.333 | 72.1 | 0.1 | 34.3 | 6.0 | 5.1 | 37.0 |
| 2024-06-24 | 13.617 | 77.1 | 0.1 | 48.1 | 4.8 | 8.8 | 33.1 |
| 2024-06-25 | 14.567 | 82.4 | 0.0 | 56.1 | 8.5 | 3.4 | 21.2 |
| 2024-06-26 | 10.233 | 73.3 | 0.0 | 52.8 | 3.7 | 3.3 | 20.1 |
| 2024-06-27 | 9.383 | 56.2 | 0.1 | 36.3 | 4.5 | 4.1 | 19.6 |
| 2024-06-28 | 9.050 | 55.8 | 0.0 | 36 | 5.6 | 4.9 | 19.1 |
| 2024-06-29 | 11.567 | 70.1 | 0.0 | 53.2 | 4.1 | 5.3 | 18.1 |
| 2024-06-30 | 0.517 | 32.4 | 3.7 | 20.1 | 7.8 | 7.1 | 18.8 |
| 2024-07-01 | 3.267 | 40.4 | 0.0 | 10.1 | 11.1 | 8.2 | 27.4 |
| 2024-07-02 | 0.767 | 30.1 | 0.1 | 13.3 | 4.2 | 7.3 | 20.0 |
| 2024-07-03 | 2.367 | 37.9 | 1.8 | 2.5 | 11.9 | 9.3 | 34.6 |
| 2024-07-04 | 3.100 | 37.2 | 0.0 | 17.0 | 7.1 | 6.0 | 19.1 |
| 2024-07-05 | 5.033 | 57.5 | 0.1 | 21.6 | 6.7 | 4.9 | 34.2 |
| 2024-07-06 | 6.017 | 45.6 | 0.0 | 27.9 | 5.4 | 5.4 | 17.7 |
| 2024-07-07 | 8.367 | 70.0 | 0.1 | 38.1 | 4.5 | 4.0 | 31.5 |
| 2024-07-08 | 13.567 | 69.7 | 0.1 | 47.0 | 5.4 | 4.2 | 21.6 |
| 2024-07-09 | 14.467 | 77.9 | 0.0 | 57.9 | 4.1 | 3.6 | 19.5 |
| 2024-07-10 | 3.900 | 36.1 | 0.1 | 16.9 | 5.5 | 5.1 | 18.9 |
| 2024-07-11 | 7.017 | 58.7 | 0.0 | 43.5 | 5.0 | 4.2 | 14.4 |
| 2024-07-12 | 3.817 | 45.1 | 0.1 | 25.8 | 6.8 | 6.3 | 18.9 |
| 2024-07-13 | 9.600 | 60.3 | 0.1 | 38.9 | 5.5 | 4.7 | 20.7 |
| 2024-07-14 | 7.983 | 63.2 | 0.0 | 43.8 | 4.2 | 3.7 | 18.9 |
| 2024-07-15 | 13.133 | 74.6 | 0.0 | 45.6 | 4.1 | 3.7 | 28.6 |
| 2024-07-16 | 9.017 | 65.0 | 0.1 | 43.5 | 6.0 | 5.5 | 21.1 |
| 2024-07-17 | 9.3 | 66.0 | 0.1 | 47.5 | 4.9 | 3.9 | 17.6 |
| 2024-07-18 | 13.750 | 69.6 | 0.0 | 49.4 | 4.6 | 4.1 | 19.7 |
| 2024-07-19 | 13.717 | 67.4 | 0.1 | 41.9 | 3.9 | 3.3 | 25.0 |
| 2024-07-20 | 11.500 | 68.0 | 0.0 | 47.9 | 3.9 | 5.1 | 21.3 |
| 2024-07-21 | 6.833 | 49.5 | 0.0 | 27.7 | 6.9 | 4.7 | 19.6 |
| 2024-07-22 | 7.067 | 51.6 | 0.1 | 33.4 | 5.4 | 5.1 | 18.0 |
| 2024-07-23 | 5.050 | 40.8 | 0.0 | 21.3 | 4.7 | 4.1 | 18.9 |
| 2024-07-24 | 7.267 | 47.1 | 0.1 | 26.5 | 5.3 | 4.6 | 20.0 |
| 2024-07-25 | 12.533 | 64.9 | 0.0 | 47.9 | 4.0 | 3.6 | 16.6 |
| 2024-07-26 | 2.817 | 40.8 | 0.1 | 25.0 | 5.8 | 6.0 | 16.1 |
| 2024-07-27 | 0.800 | 33.1 | 0.1 | 2.4 | 10.0 | 12.5 | 33.3 |
| 2024-07-28 | 11.417 | 66.2 | 0.0 | 41.8 | 9.2 | 4.3 | 19.5 |
| 2024-07-29 | 13.95 | 77.2 | 0.0 | 55.6 | 3.8 | 3.3 | 5.3 |
| 2024-07-30 | 13.633 | 72.1 | 0.1 | 52.5 | 5.7 | 5.1 | 19.1 |
| 2024-07-31 | 10.617 | 71.4 | 3.7 | 56.8 | 4.5 | 5.7 | 21.8 |
| 2024-08-01 | 4.667 | 29.0 | 0.0 | 11.7 | 7.1 | 4.8 | 15.0 |
| 2024-08-02 | 6.083 | 50.9 | 0.1 | 31.5 | 5.7 | 5.1 | 18.9 |
| 2024-08-03 | 7.367 | 57.8 | 0.0 | 46.5 | 4.1 | 3.7 | 10.9 |
| 2024-08-04 | 3.700 | 38.1 | 0.1 | 10.6 | 7.0 | 7.3 | 27.9 |
| 2024-08-05 | 10.283 | 67.0 | 0.0 | 45.9 | 5.7 | 4.5 | 19.9 |
| 2024-08-06 | 13.500 | 70.5 | 0.0 | 50.9 | 6.0 | 5.9 | 19.5 |
| 2024-08-07 | 6.267 | 39.5 | 1.2 | 17.5 | 8.0 | 13.9 | 29.1 |
| 2024-08-08 | 7.433 | 48.8 | 5.4 | 26.0 | 10.4 | 3.7 | 21.5 |
| 2024-08-09 | 10.100 | 56.6 | 0.1 | 22.6 | 8.0 | 7.0 | 33.1 |
| 2024-08-10 | 10.717 | 59.3 | 0.0 | 39.9 | 6.0 | 4.5 | 17.9 |
| 2024-08-11 | 13.483 | 69.2 | 0.0 | 48.2 | 5.5 | 4.1 | 19.6 |
| 2024-08-12 | 9.9 | 55.0 | 0.1 | 33.0 | 5.7 | 7.5 | 23.9 |
| 2024-08-13 | 10.3 | 58.3 | 0.1 | 38.5 | 7.8 | 6.2 | 18.3 |
| 2024-08-14 | 11.183 | 62.9 | 0.0 | 43.7 | 6.6 | 4.4 | 17.0 |
| 2024-08-15 | 12.333 | 67.0 | 0.1 | 52.8 | 5.3 | 6.0 | 15.0 |
| 2024-08-16 | 10.483 | 56.8 | 0.0 | 40.1 | 6.6 | 4.6 | 14.7 |
| 2024-08-17 | 9.017 | 47.1 | 0.1 | 27.5 | 6.9 | 6.9 | 19.7 |
| 2024-08-18 | 0.383 | 25.3 | 0.0 | 9.3 | 7.0 | 6.4 | 15.4 |
| 2024-08-19 | 9.450 | 65.4 | 0.0 | 42.1 | 5.8 | 4.7 | 22.2 |
| 2024-08-20 | 4.867 | 25.7 | 0.2 | 8.5 | 7.9 | 7.4 | 16.9 |
| 2024-08-21 | 8.683 | 54.0 | 0.3 | 21.2 | 8.0 | 7.5 | 32.6 |
| 2024-08-22 | 12.067 | 62.9 | 0.0 | 41.4 | 5.6 | 4.5 | 20.4 |
| 2024-08-23 | 12.300 | 49.4 | 0.2 | 21.6 | 5.5 | 10.3 | 22.3 |
| 2024-08-24 | 11.917 | 64.1 | 0.9 | 28.8 | 9.7 | 4.7 | 31.2 |
| 2024-08-25 | 6.717 | 47.3 | 0.0 | 26.2 | 7.8 | 5.9 | 19.2 |
| 2024-08-26 | 12.783 | 67.1 | 0.0 | 50.5 | 4.7 | 5.0 | 16.9 |
| 2024-08-27 | 12.783 | 65.8 | 0.0 | 29.8 | 6.6 | 5.0 | 34.4 |
| 2024-08-28 | 12.717 | 64.2 | 0.1 | 41.7 | 4.6 | 4.5 | 22.5 |
| 2024-08-29 | 12.300 | 57.7 | 0.0 | 34.3 | 6.8 | 6.4 | 23.0 |
| 2024-08-30 | 11.067 | 59.3 | 0.1 | 38.2 | 6.4 | 5.6 | 20.4 |
| 2024-08-31 | 12.083 | 61.2 | 3.9 | 41.5 | 6.0 | 11.0 | 25.9 |
| 2024-09-01 | 11.617 | 58.8 | 2.4 | 33.8 | 9.8 | 3.6 | 21.2 |
| 2024-09-02 | 9.167 | 46.8 | 0.1 | 25.1 | 5.7 | 7.0 | 23.1 |
| 2024-09-03 | 7.083 | 46.8 | 0.0 | 18.3 | 8.2 | 9.0 | 29.3 |
| 2024-09-04 | 4.100 | 31.8 | 0.1 | 7.3 | 10.9 | 7.6 | 21.3 |
| 2024-09-05 | 11.550 | 58.8 | 0.1 | 40.7 | 7.8 | 7.5 | 17.9 |
| 2024-09-06 | 6.017 | 40 | 0.0 | 22.9 | 8.2 | 7.1 | 16.0 |
| 2024-09-07 | 11.550 | 58.4 | 0.1 | 22.4 | 7.5 | 6.5 | 35.1 |
| 2024-09-08 | 3.533 | 34.2 | 0.0 | 18.7 | 7.1 | 6.4 | 14.8 |
| 2024-09-09 | 2.750 | 28.7 | 0.1 | 10.3 | 7.6 | 7.1 | 18.0 |
| 2024-09-10 | 3.950 | 31.7 | 0.0 | 6.5 | 8.4 | 10.3 | 27.1 |
| 2024-09-11 | 0.167 | 11.8 | 1.8 | 0.2 | 6.0 | 6.7 | 14.1 |
| 2024-09-12 | 6.000 | 37.7 | 1.1 | 8.5 | 13.1 | 13.2 | 30.4 |
| 2024-09-13 | 5.017 | 37.0 | 2.2 | 6.4 | 11.0 | 4.6 | 26.4 |
| 2024-09-14 | 3.200 | 29.7 | 0.2 | 1.9 | 8.5 | 9.3 | 28.8 |
| 2024-09-15 | 6.400 | 42.8 | 0.4 | 7.4 | 10.5 | 13.3 | 38.6 |
| 2024-09-16 | 0.000 | 10.4 | 1.9 | 0.1 | 6.0 | 3.7 | 9.9 |
Datenquellen: iSolarCloud und Deutscher Wetterdienst (DWD), DWD-Station 05705 Würzburg, 9,957 °Ost, 49,7704 °Nord, 268 Meter. Die Wetterstation liegt Luftlinie rund 9,6 Kilometer östlich von unserer PV-Anlage in Eisingen. Die Angaben zur Sonnenscheindauer können deshalb von unseren tatsächlichen lokalen Werten abweichen.
Sonnenaufgang und Sonnenuntergang in Eisingen in Unterfranken →
Am 4. April 2023 starteten wir eine neue Beitragsreihe, in der wir monatlich die Daten zur Leistung und Wirtschaftlichkeit unserer im Januar 2023 fertiggestellten PV-Anlage mit Speicher und die Sonnenscheindauer veröffentlichen. Die Beiträge kann man direkt über die Tabelle oder hier aufrufen und Ankündigungen neuer Beiträge kostenlos über das Beitragsarchiv abonnieren.
Technische Daten
Größe der Anlage: 13,175 Kilowattpeak (kWp)
Solarfläche: 60,5 Quadratmeter (m2)
Ausrichtung Südsüdost (150 Grad): 21 Module (8,925 kWp), 41 m2 Solarfläche

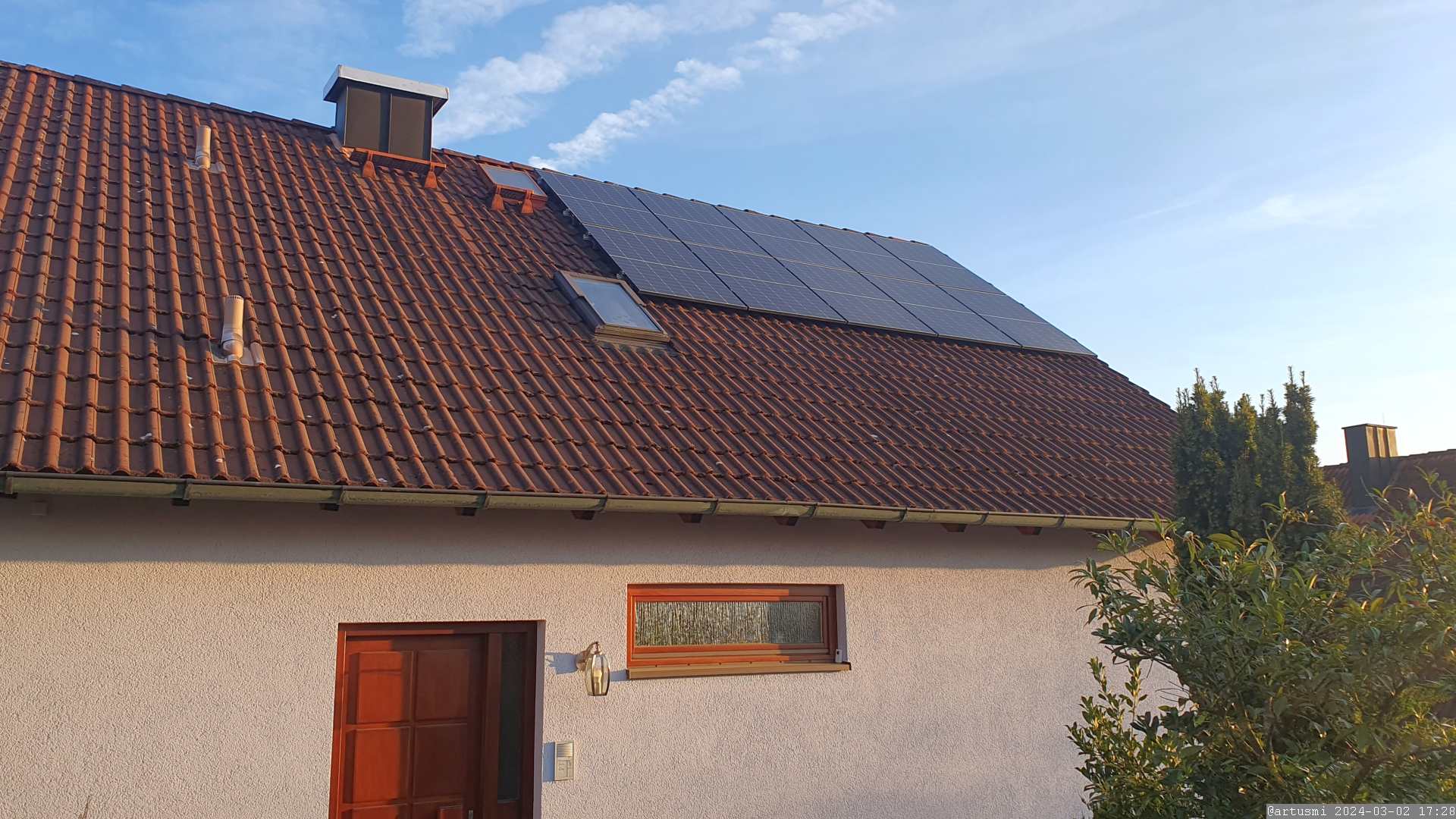

Ausrichtung Nordnordwest (330 Grad): 10 Module (4,250 kWp), 19,5 m2 Solarfläche
Dachneigung: 38 Grad
Module: 31 Stück JinkoSolar JKM425N-54HL4-V – Hohe Modulleistung durch Half-Cut-Technologie und ausgewählte Materialien – Nennleistung: größer 425 Wp – Außergewöhnlich hoher Modulwirkungsgrad von über 21,76 %- L x B x H 1722 x 1134 x 30 mm.
Wechselrichter: Sungrow Hybrid HV SH10.0RT – Wechselrichter 3-phasig- Maximalleistung 10.000 Watt – max. Wirkungsgrad von 98,2% – SG-Ready Kontakt vorhanden (zur Ansteuerung z.B. Wärmepumpe) – inkl. Smart-Meter.
Störungen und Fehlerbehebung
Die PV-Anlage läuft seit Behebung der Kinderkrankheiten im ersten Betriebsjahr störungsfrei und erfreut uns mit ihrer Leistungsfähigkeit.
Säulendiagramme
Januar 2024
Februar 2024
März 2024
April 2024
Mai 2024
Juni 2024
Juli 2024
August 2024
Bildergalerie

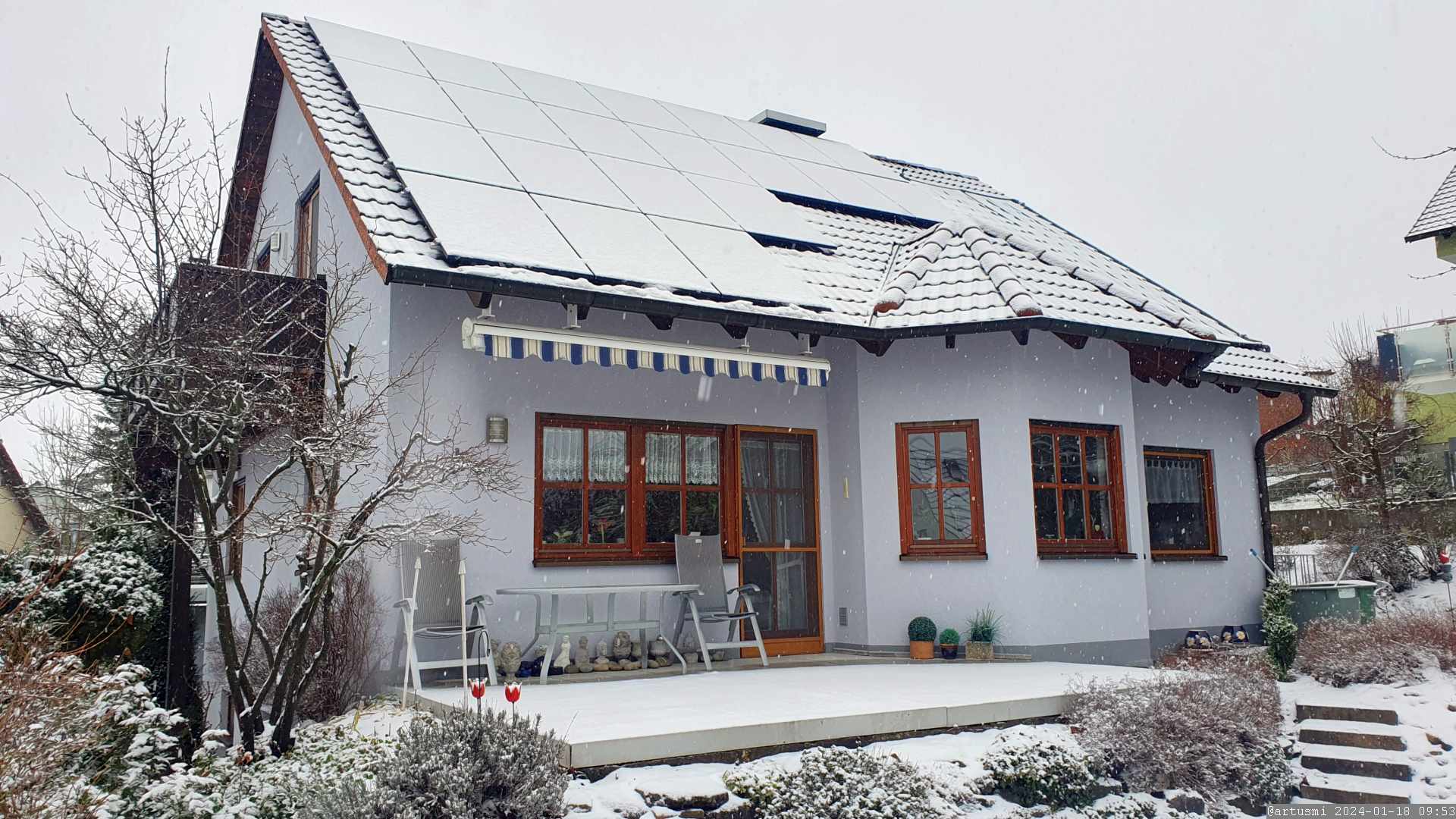

Wetterbilder 2024 aus Eisingen

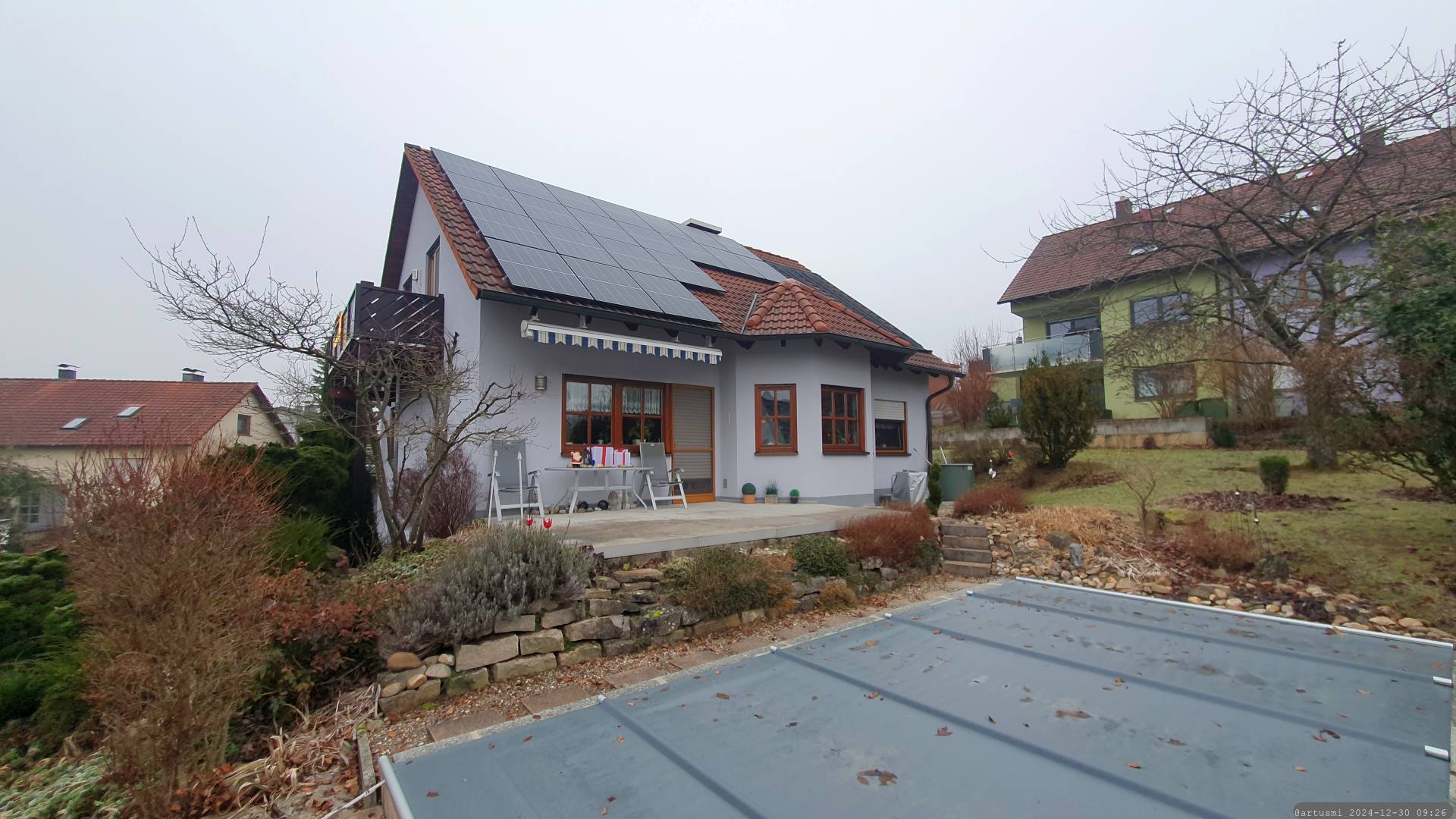

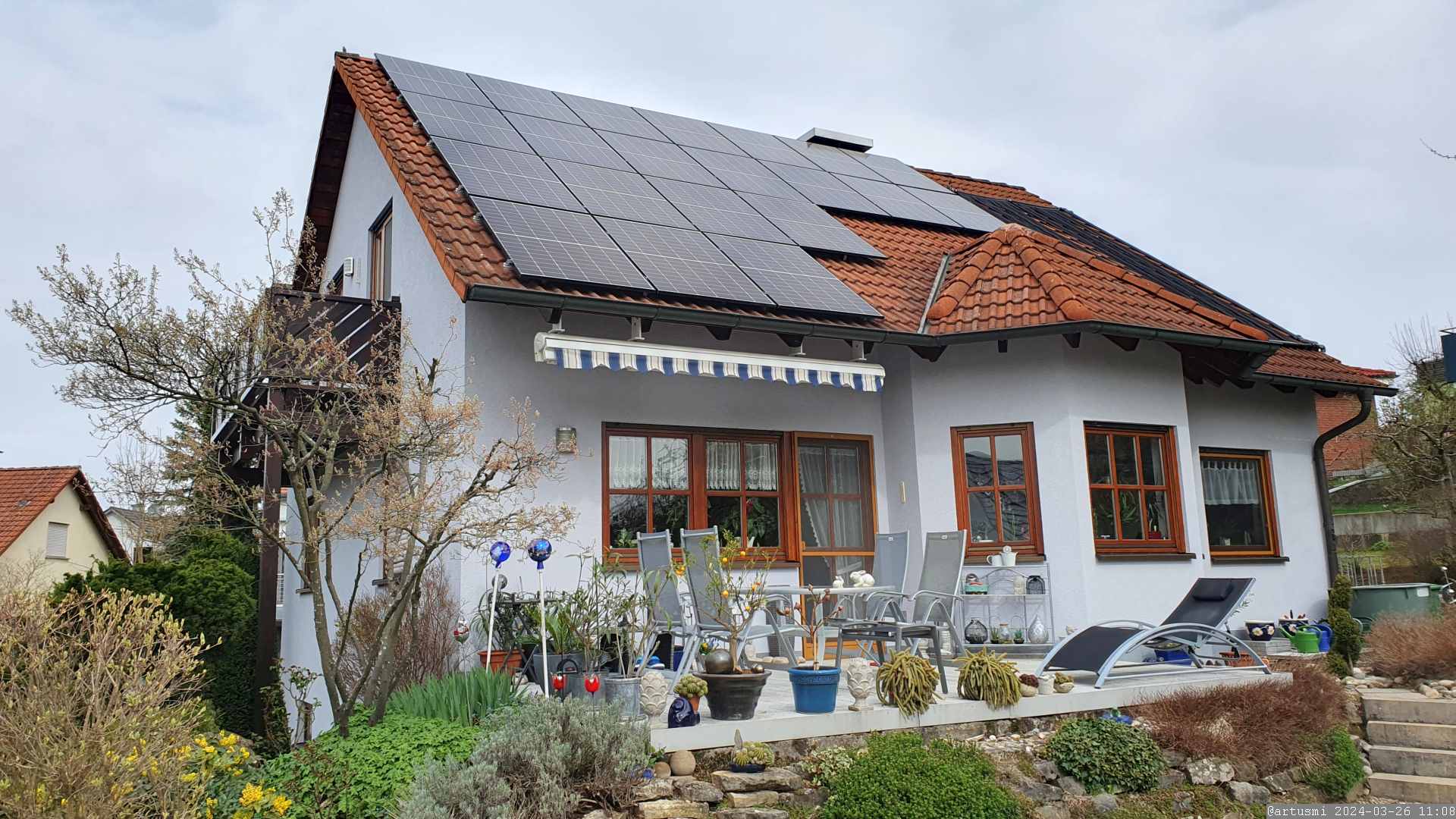

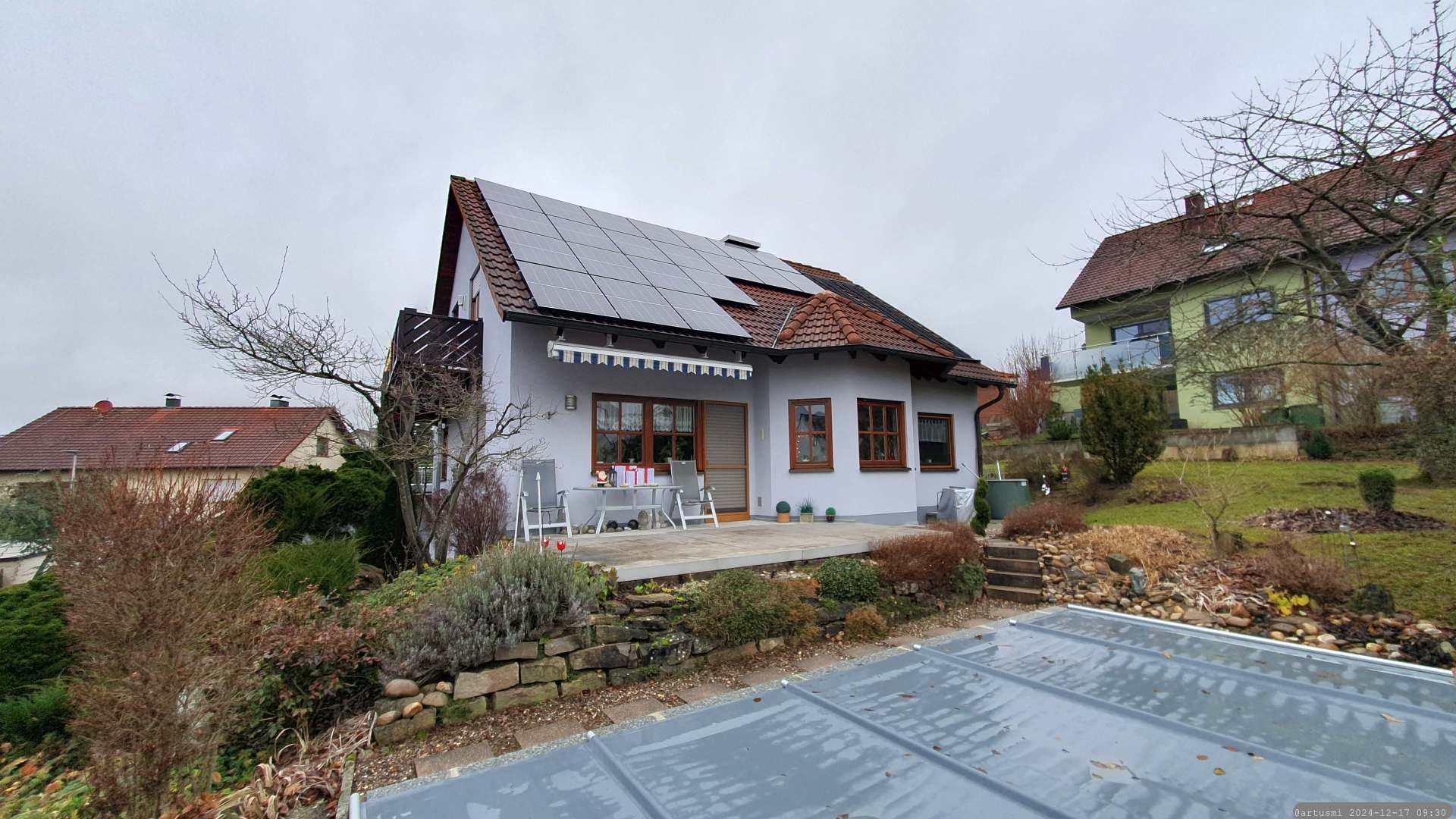

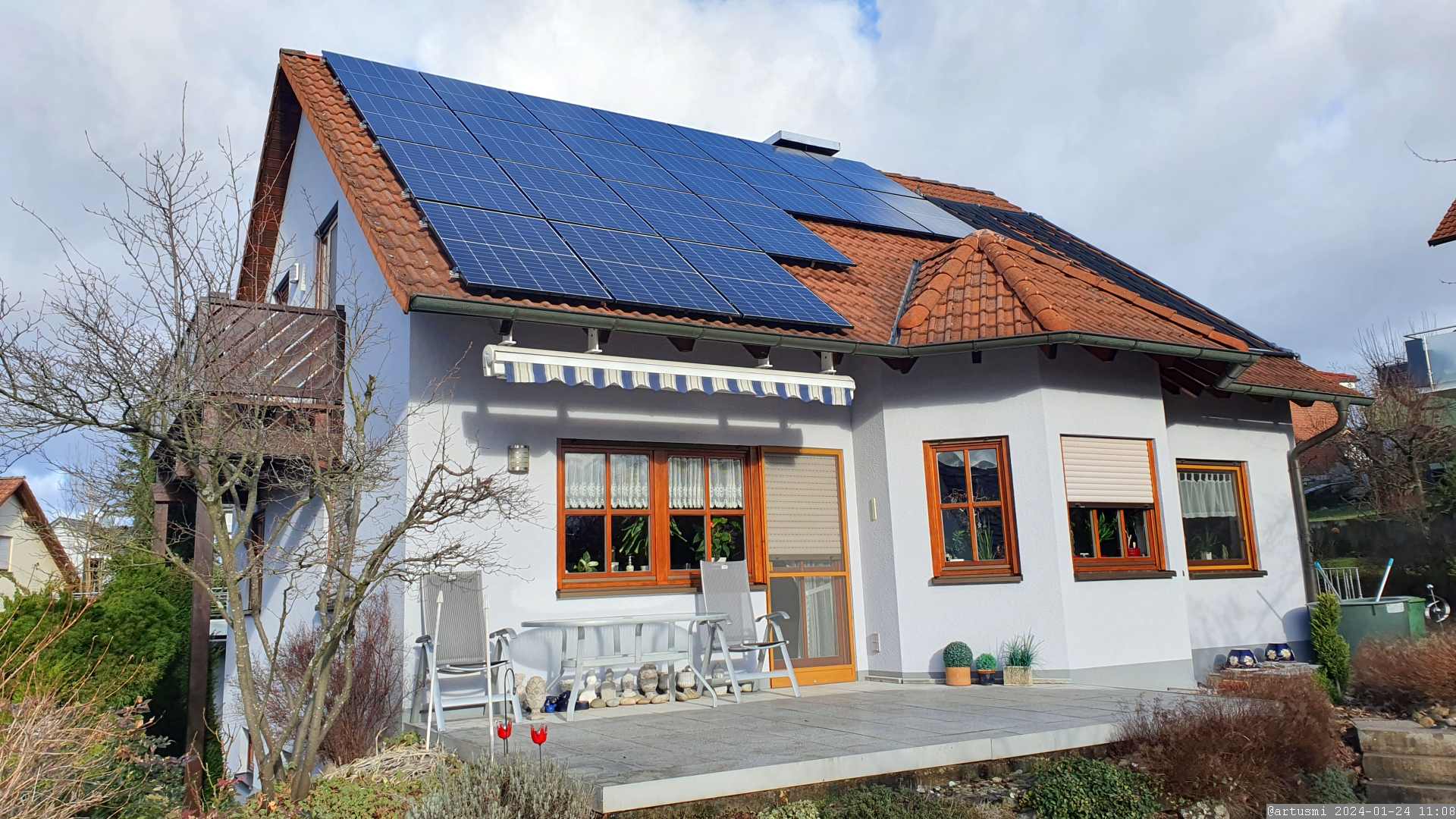

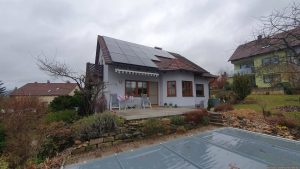

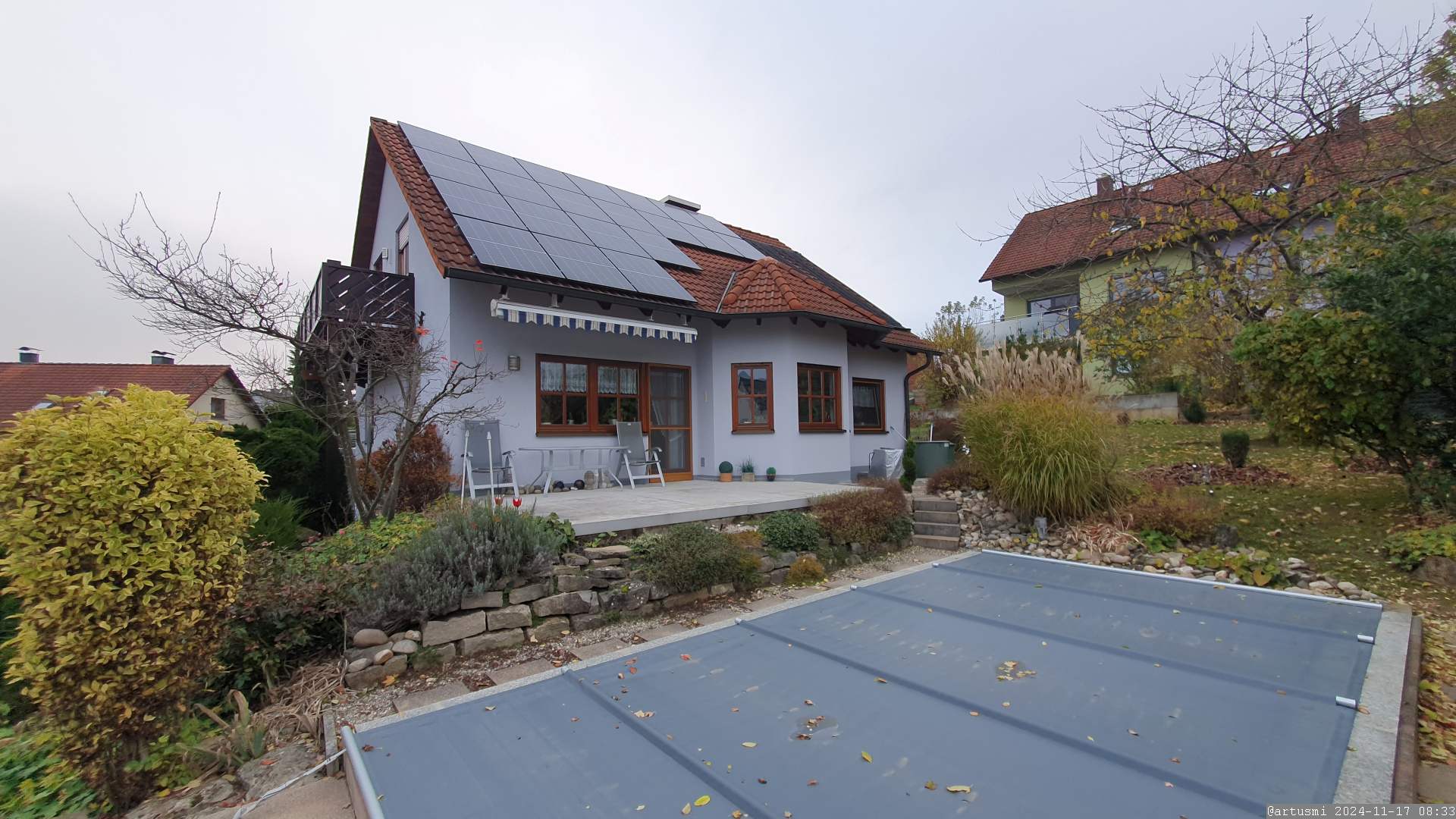

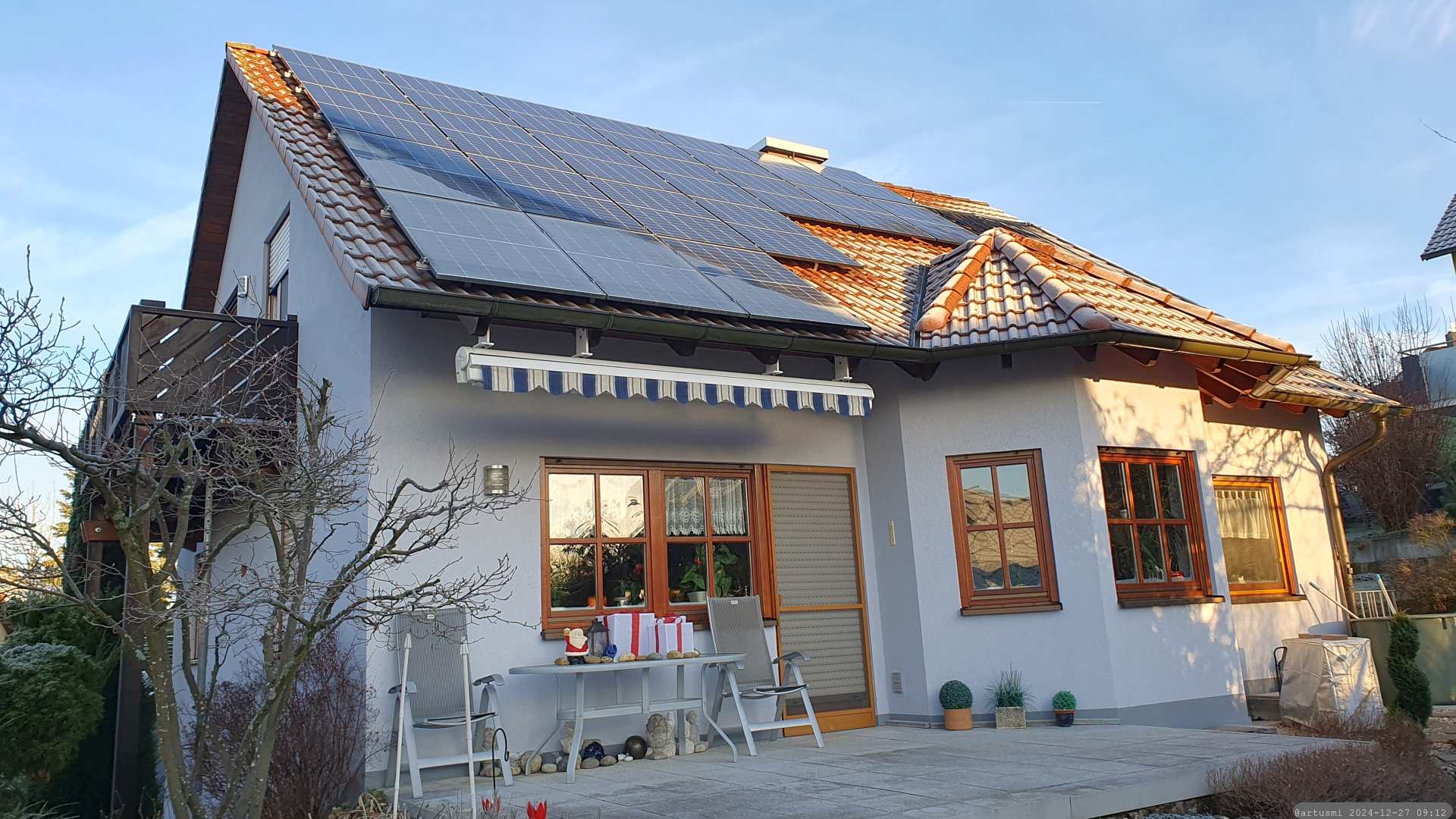

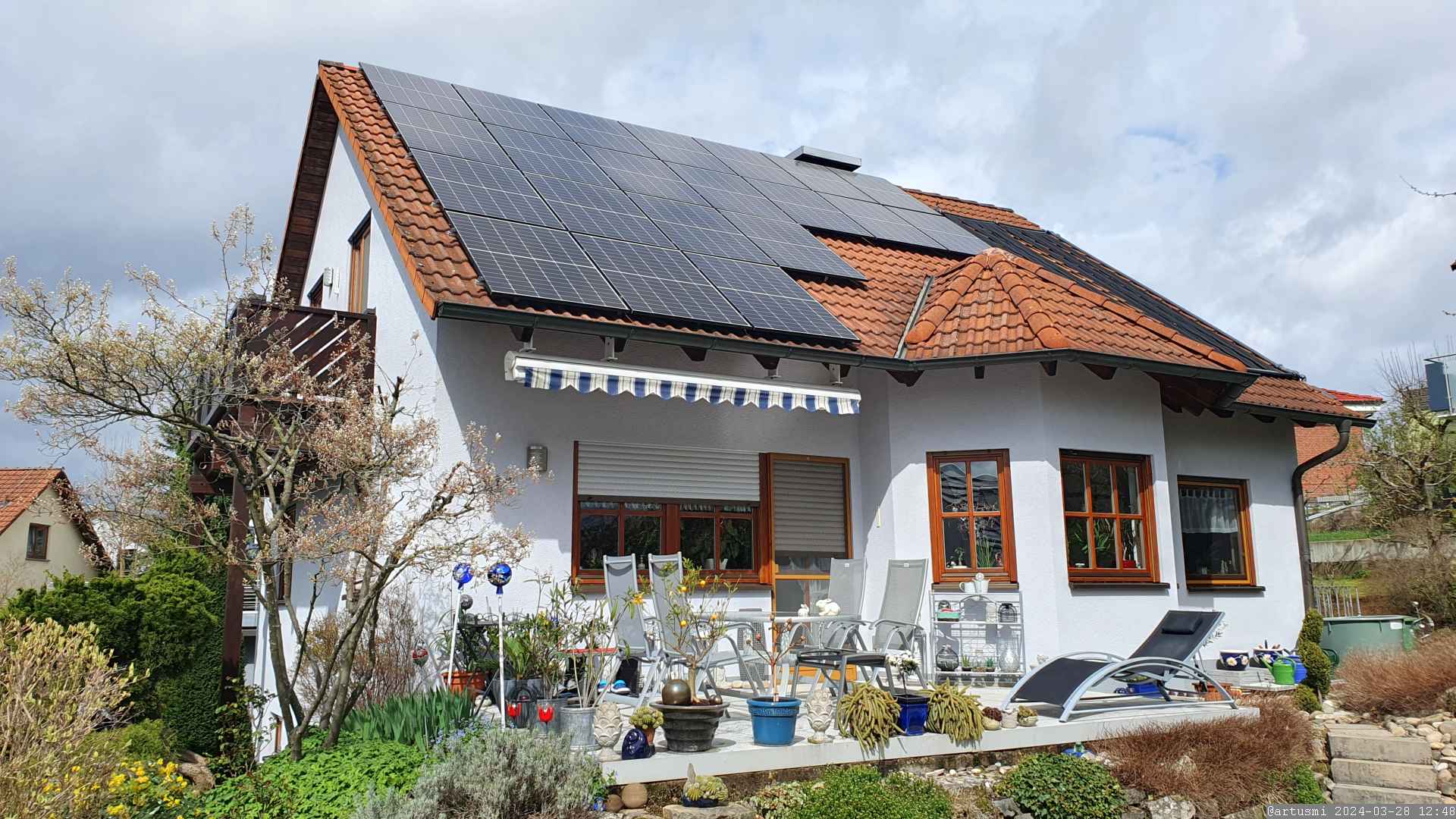

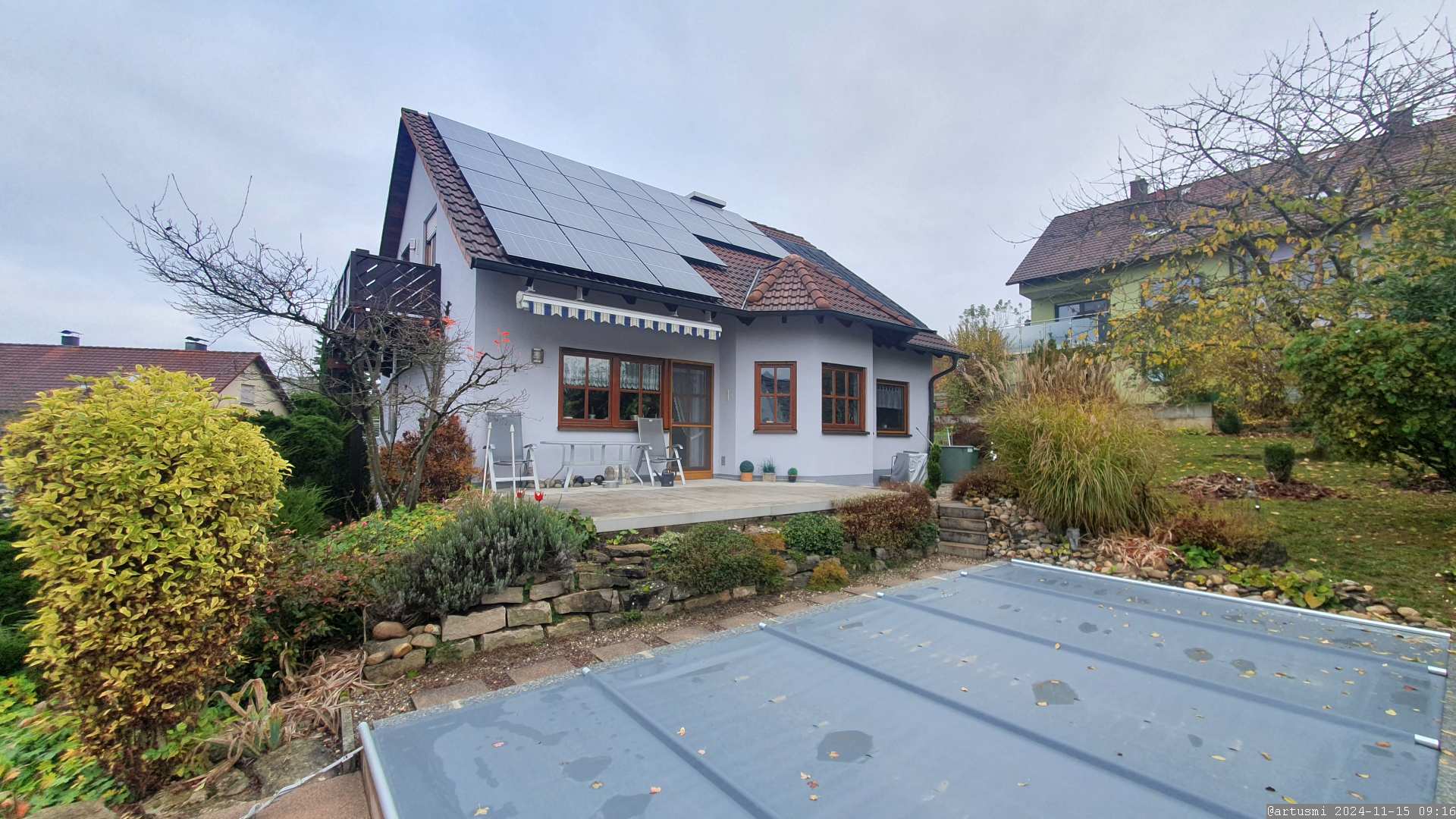

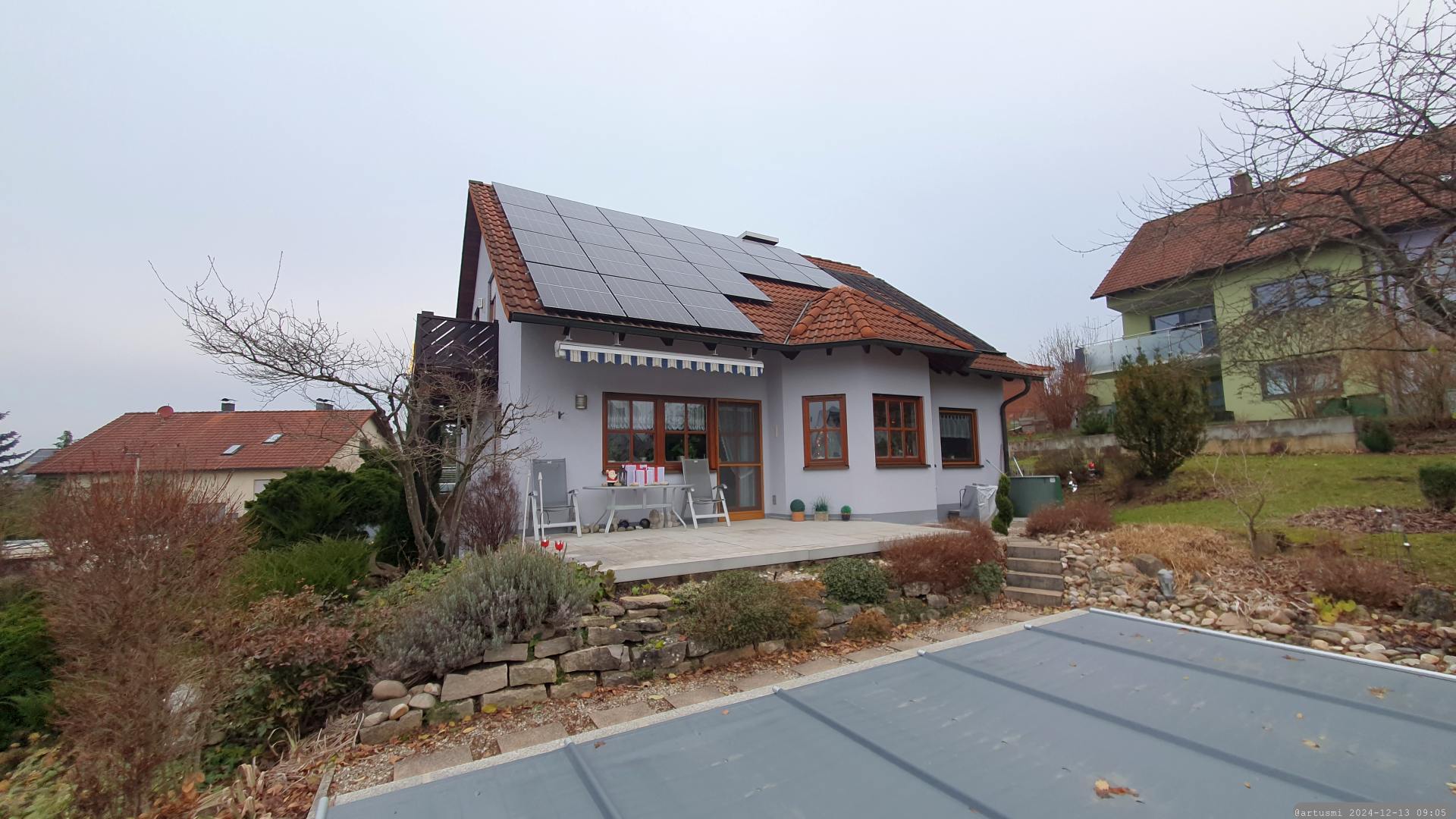

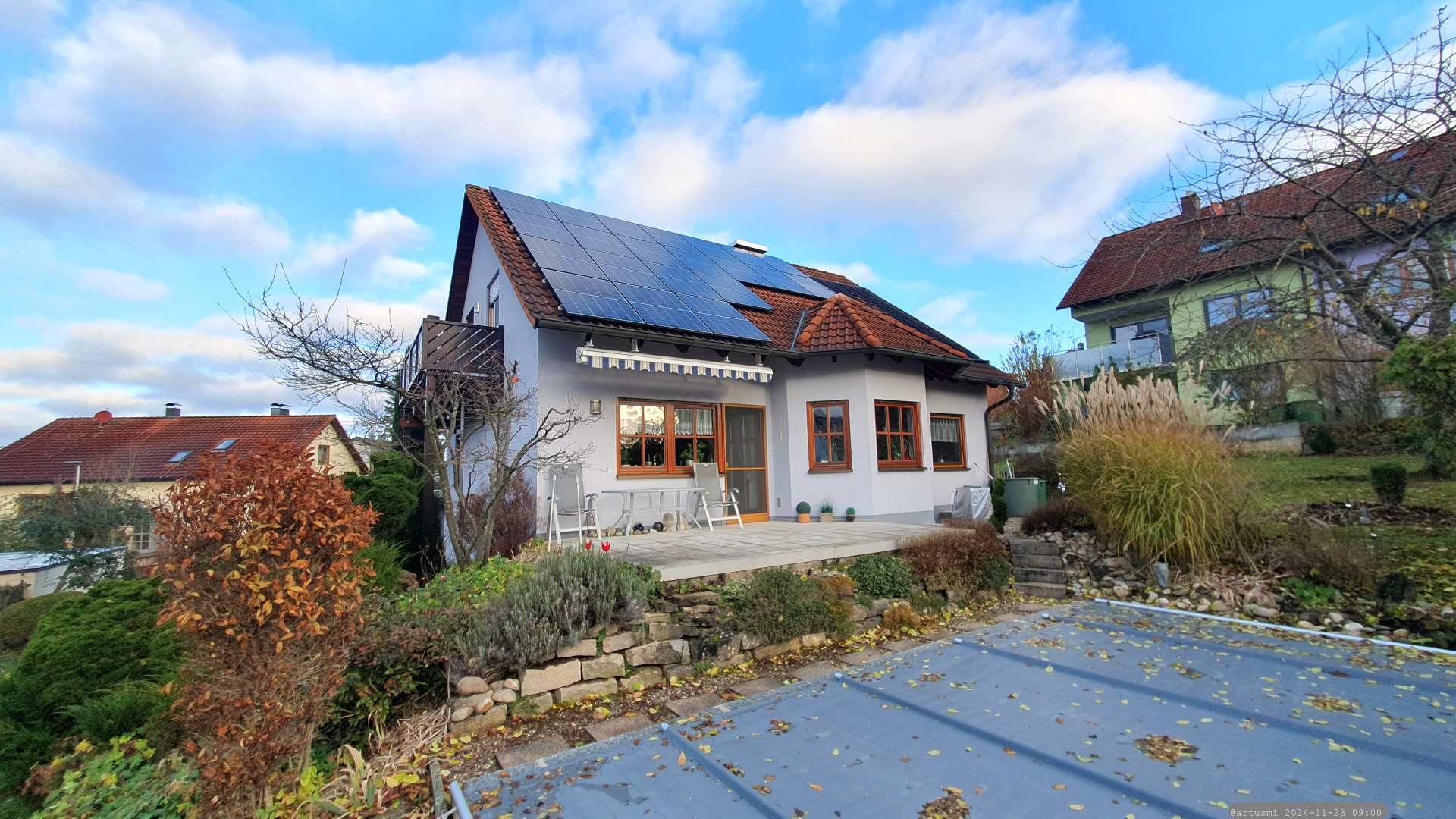

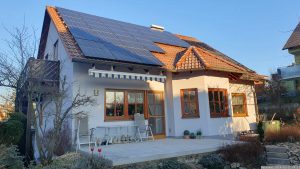

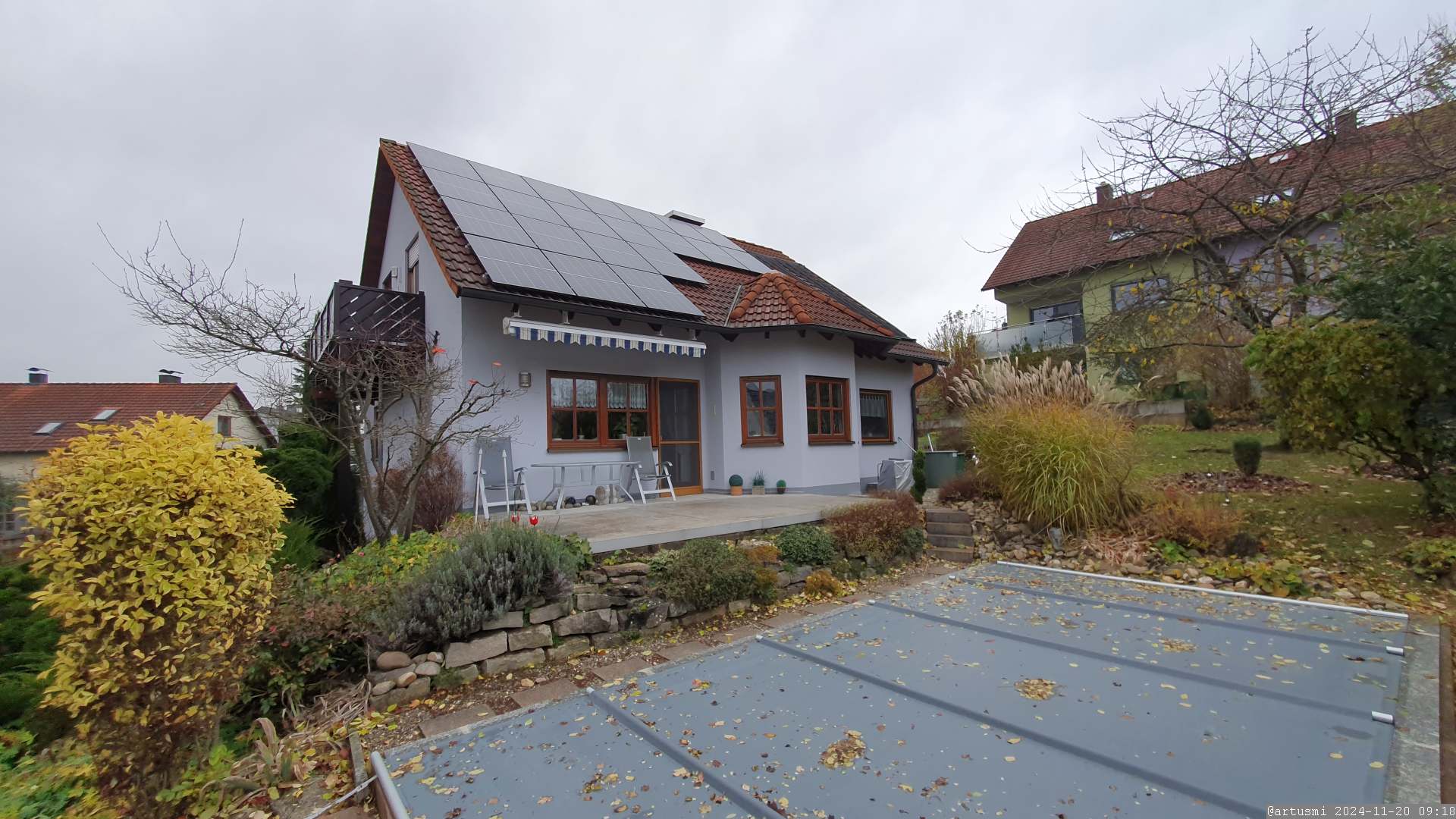

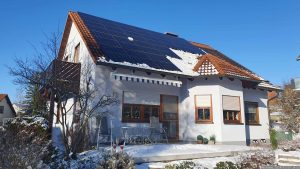

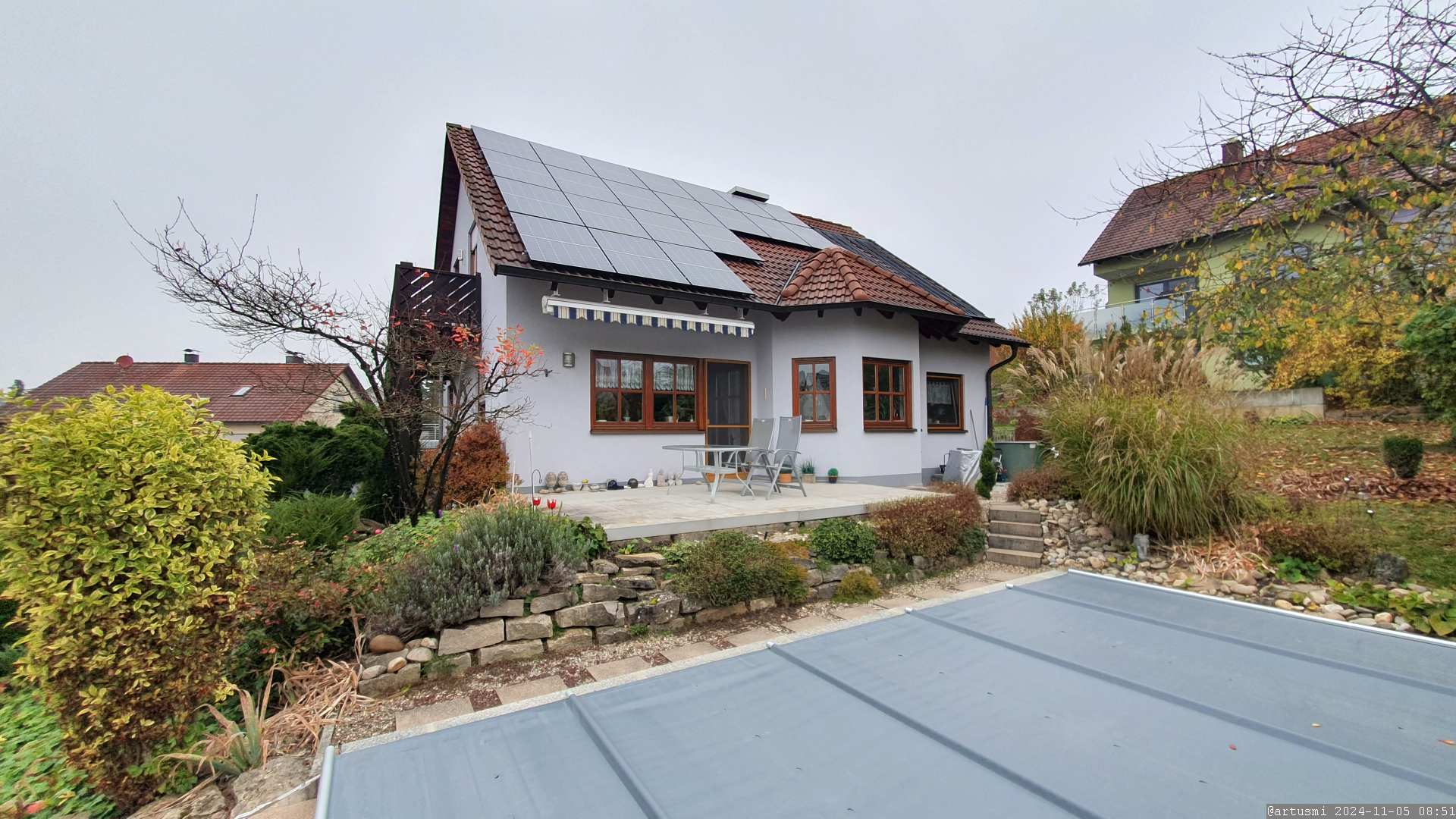

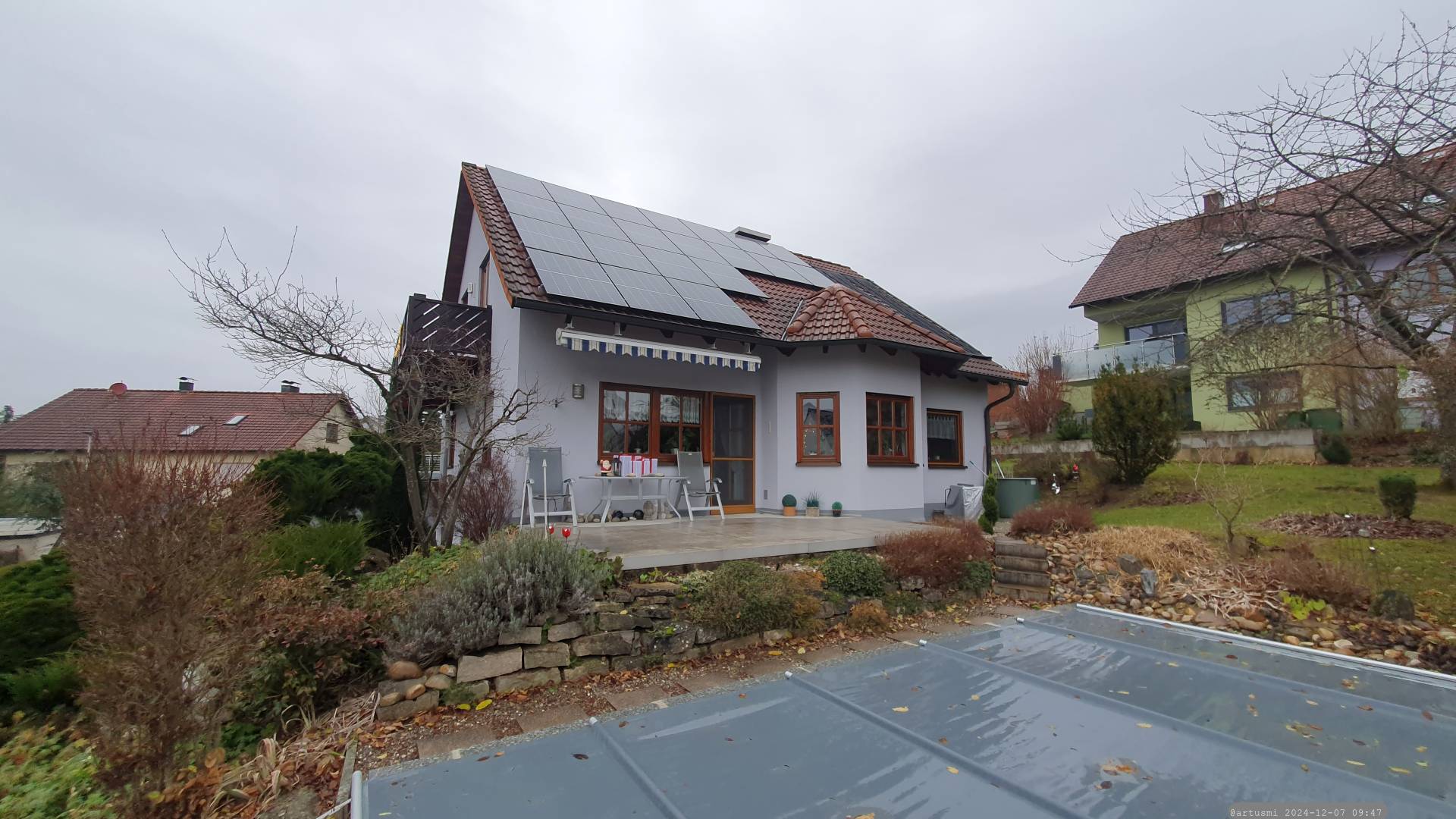

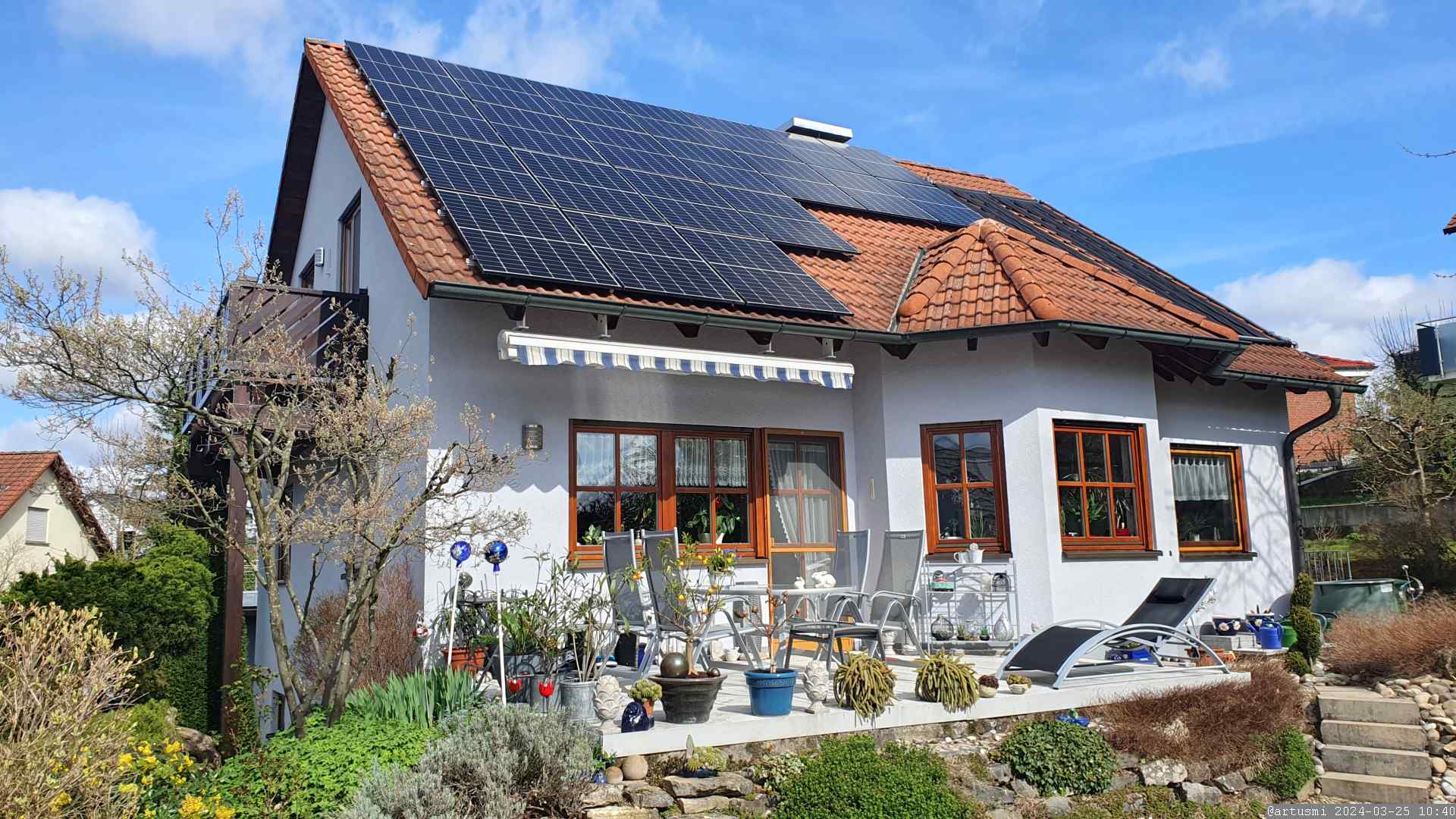

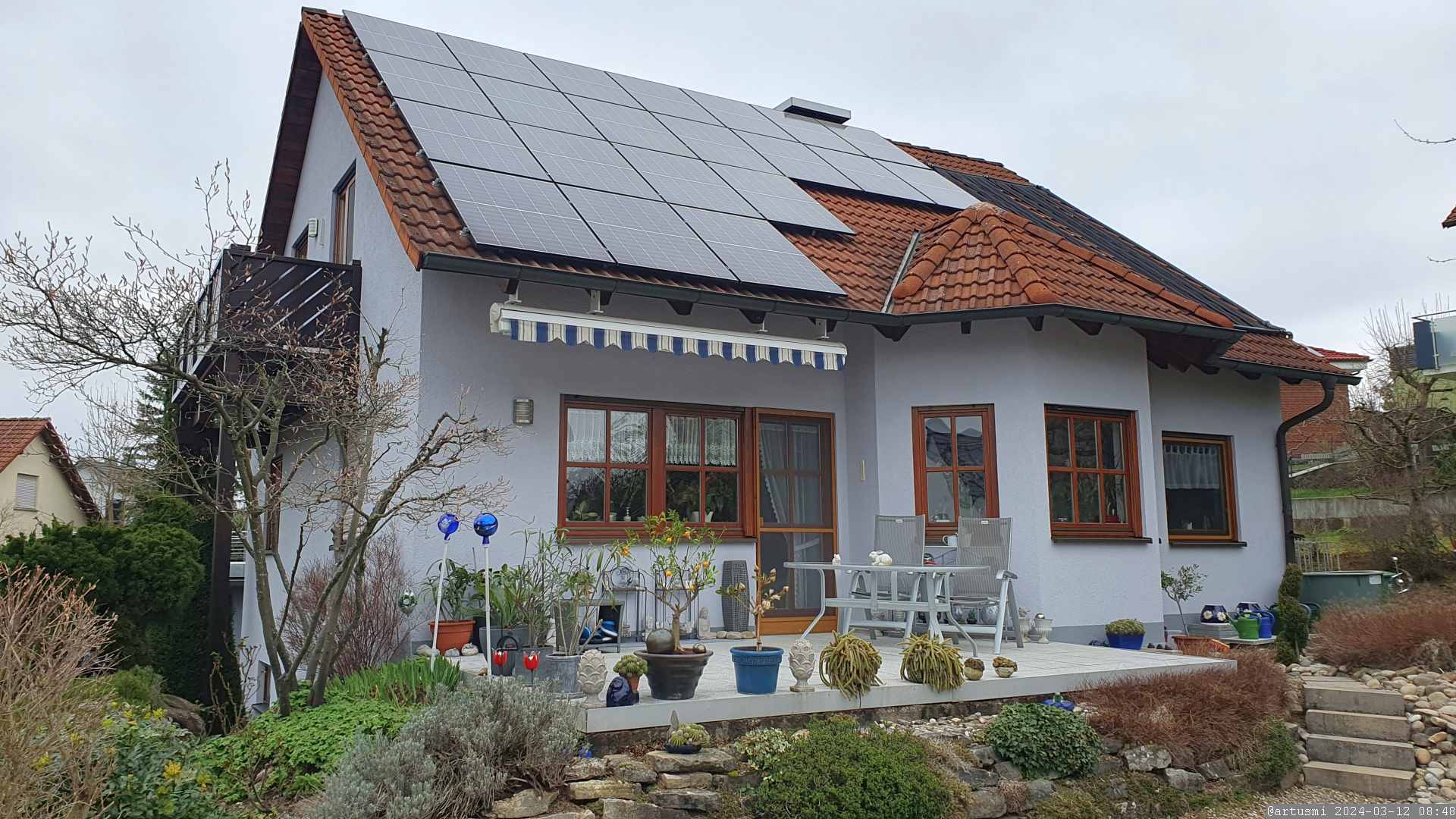

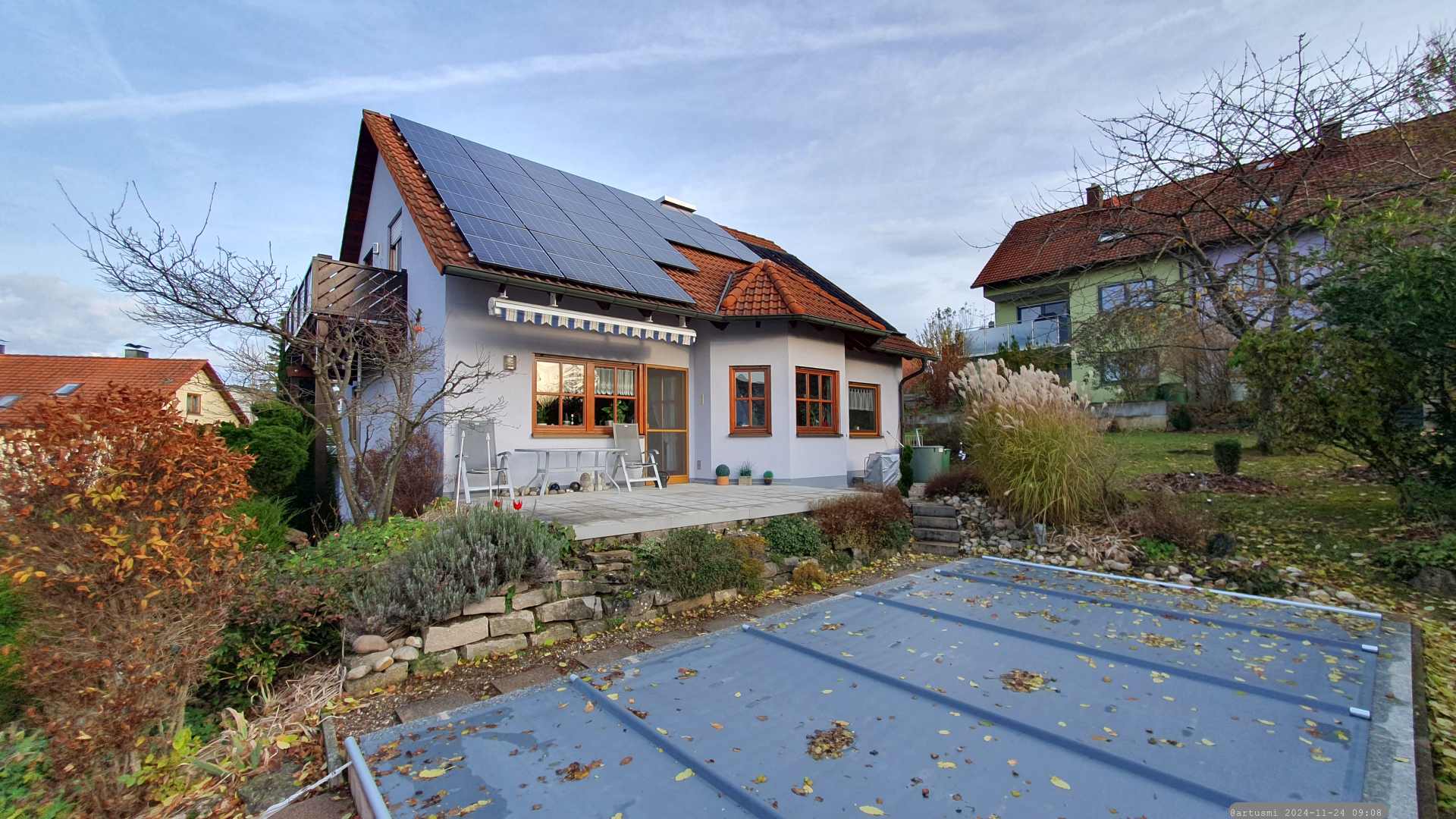

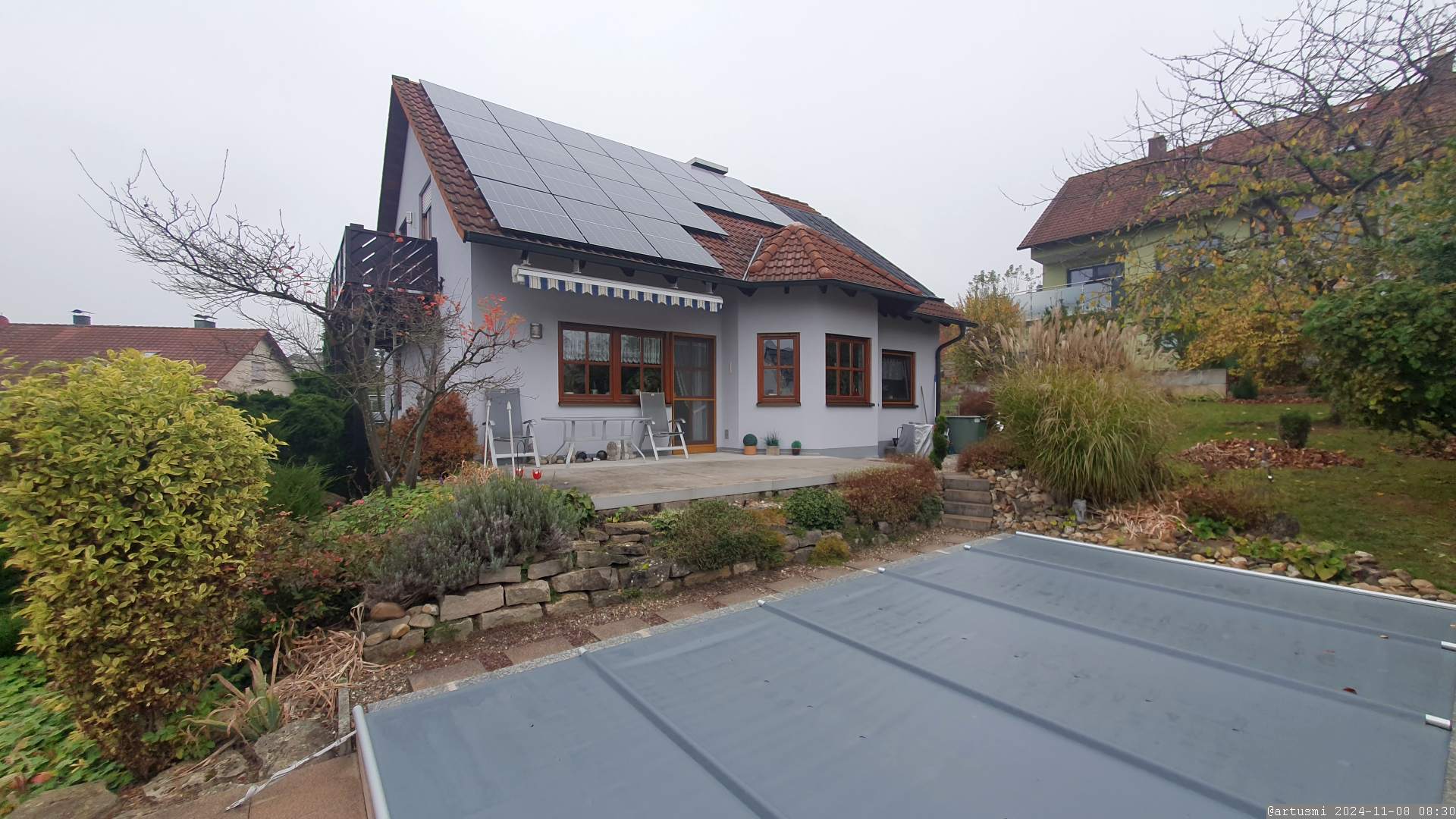

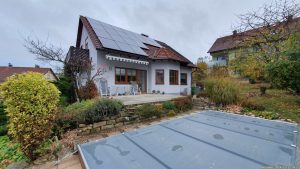

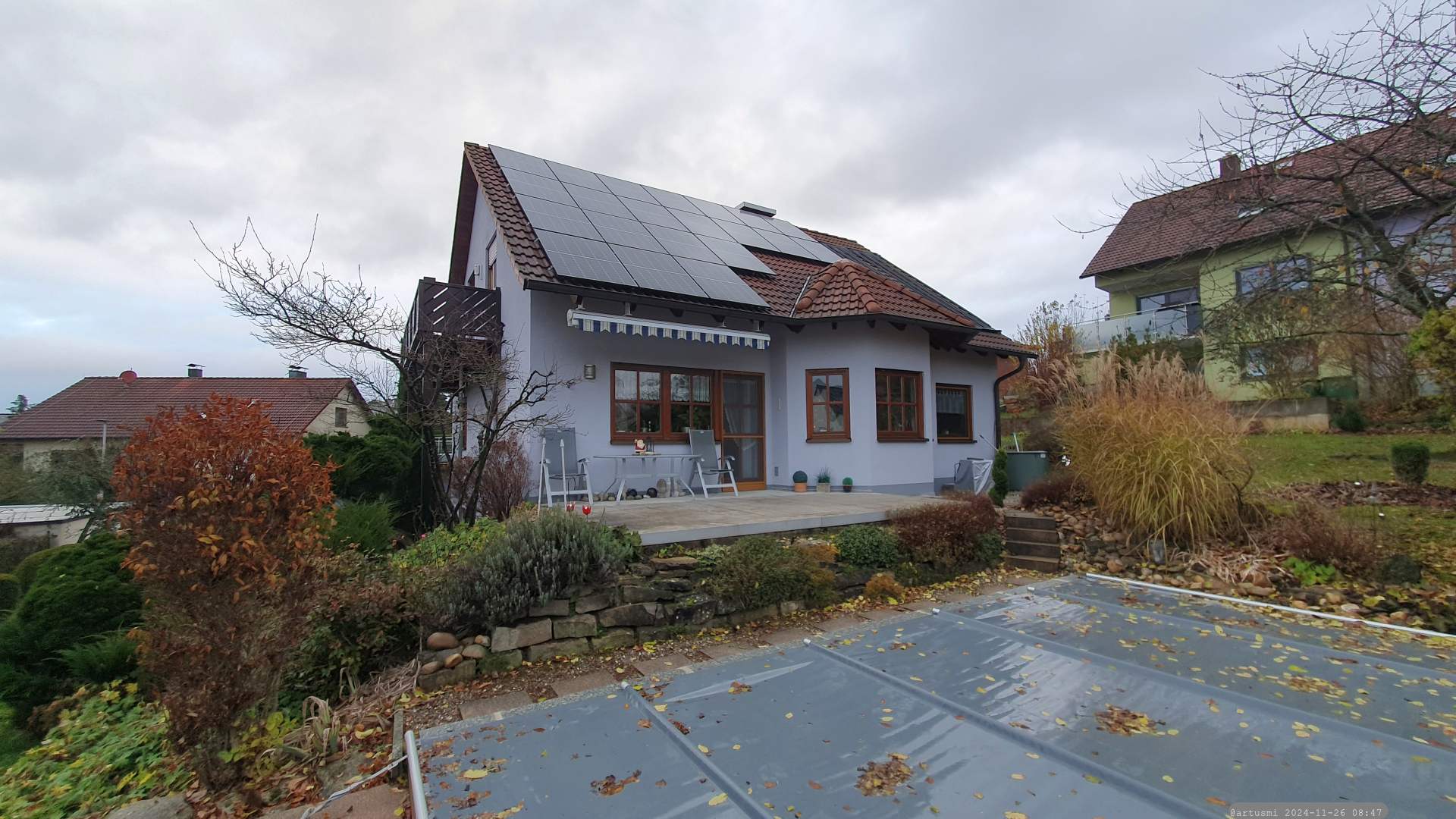

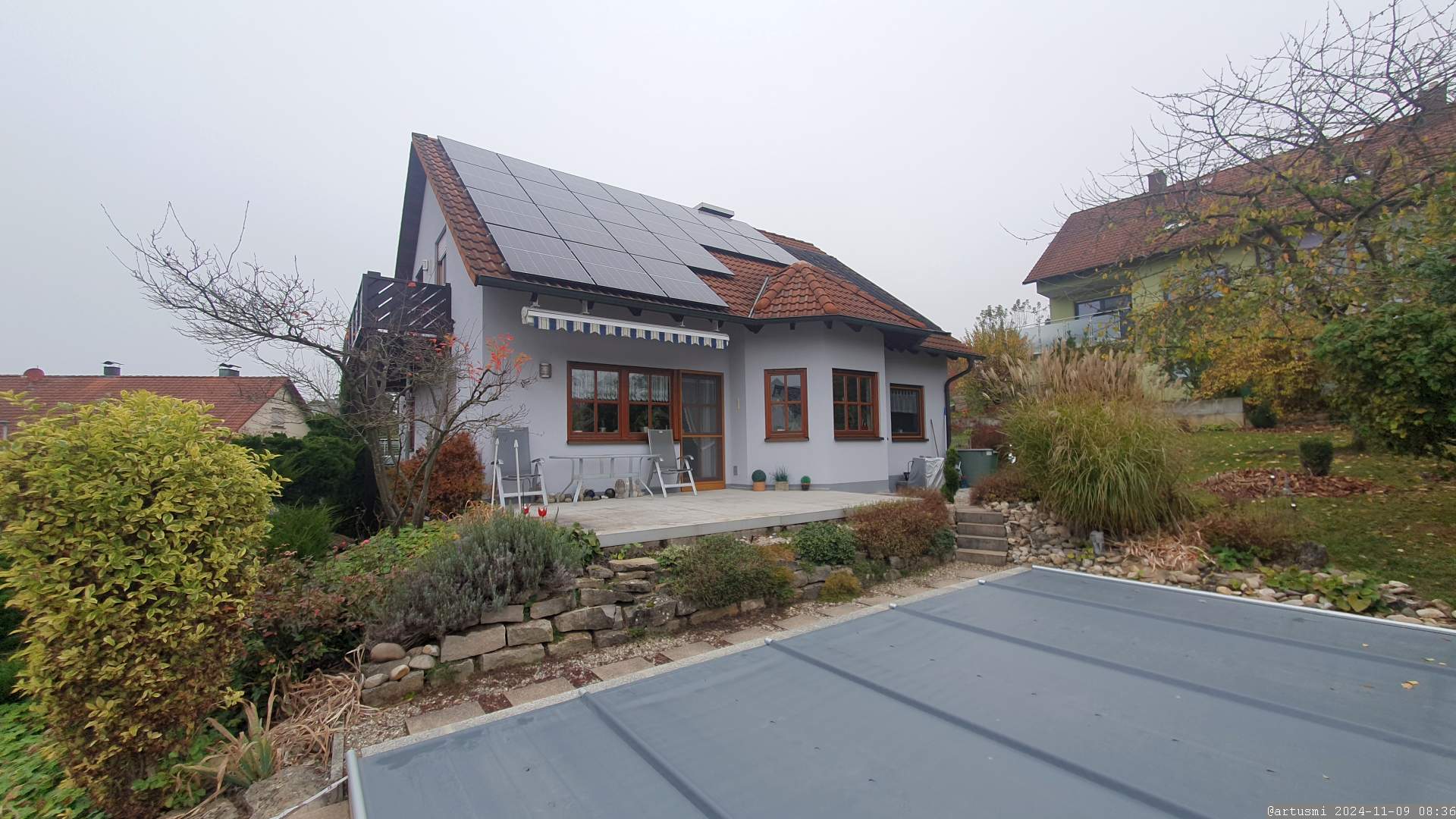

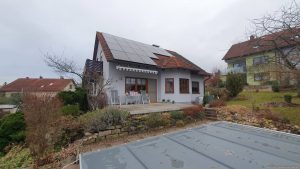

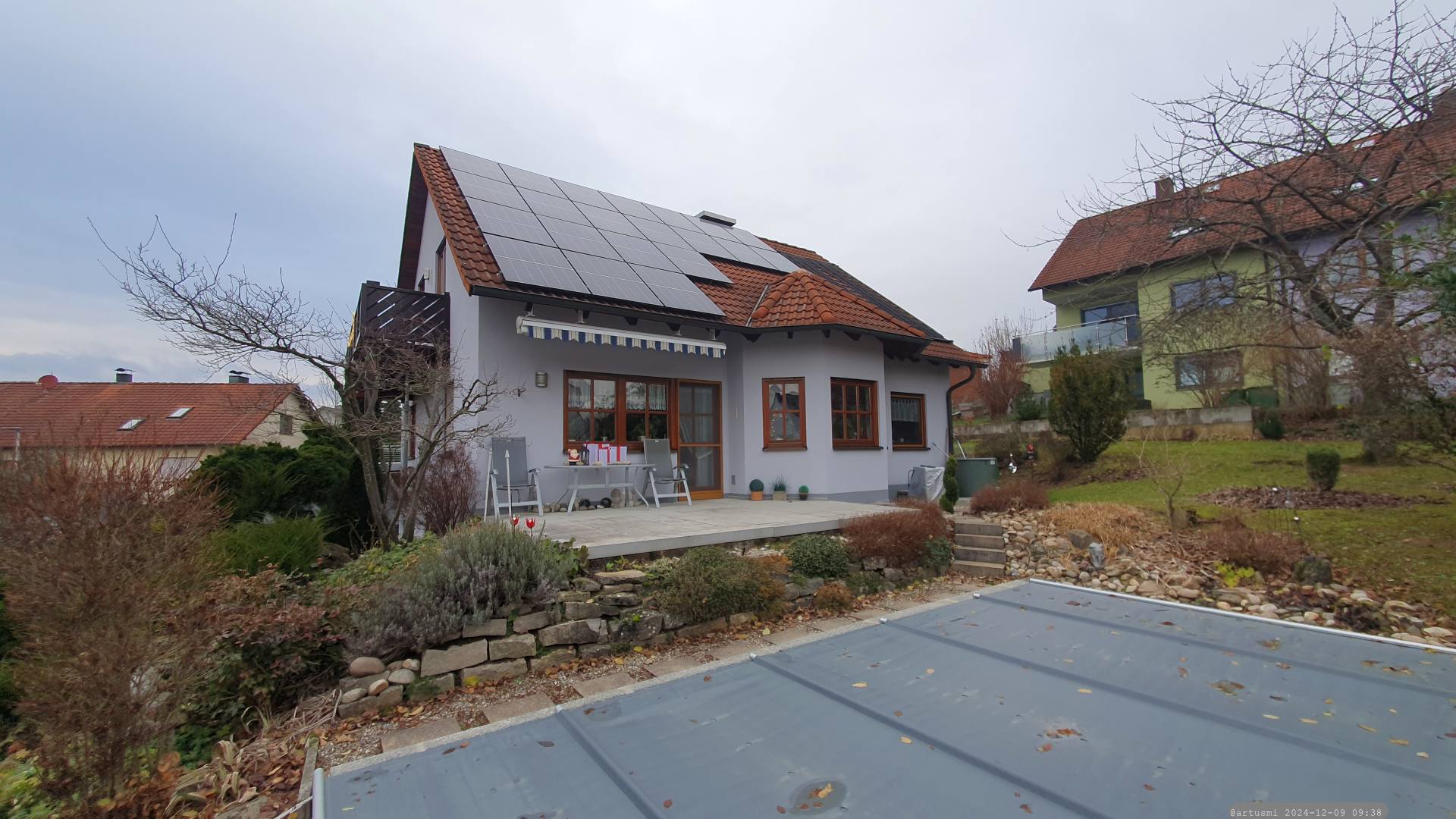

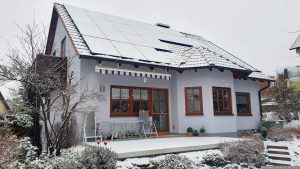

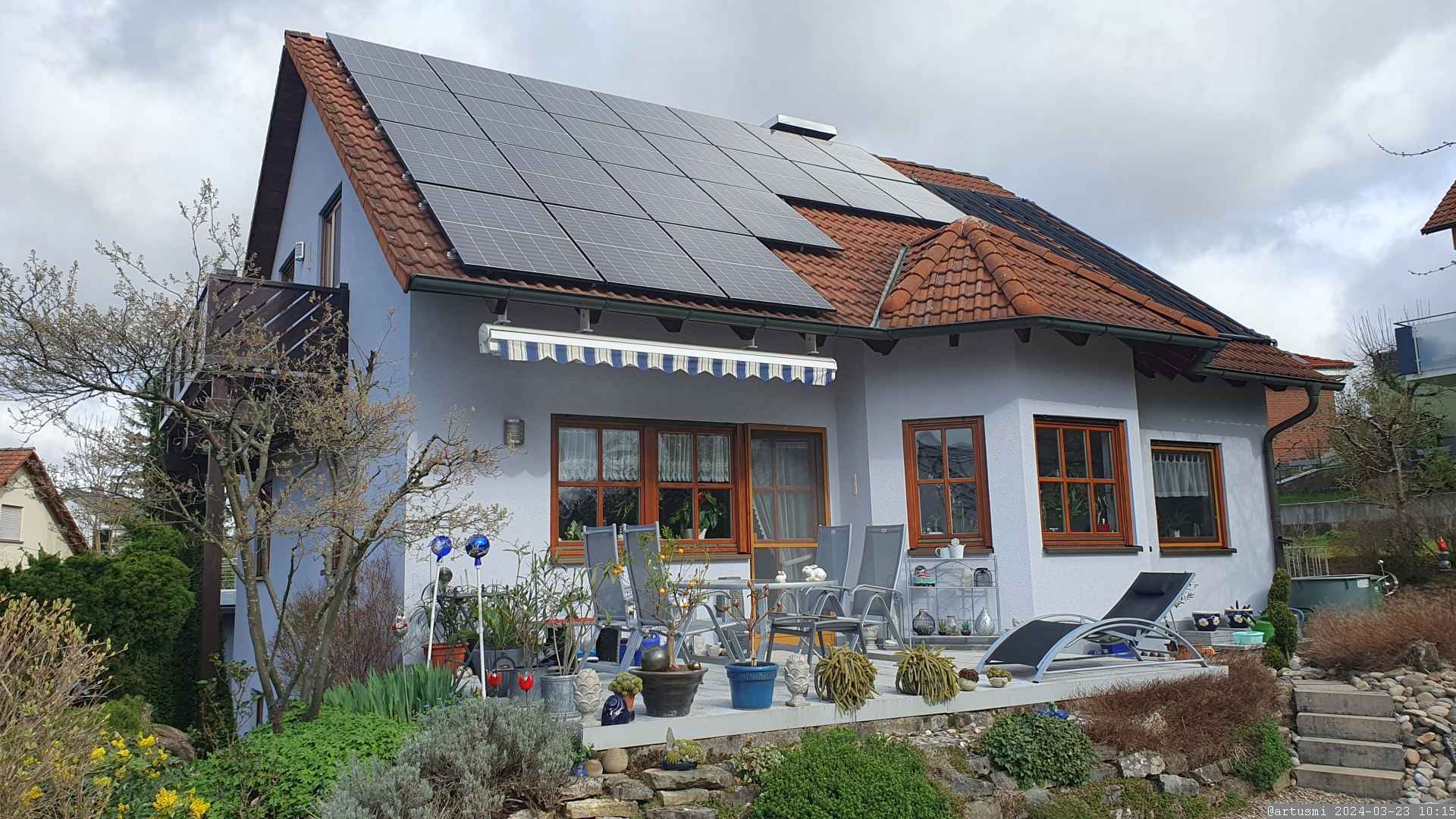

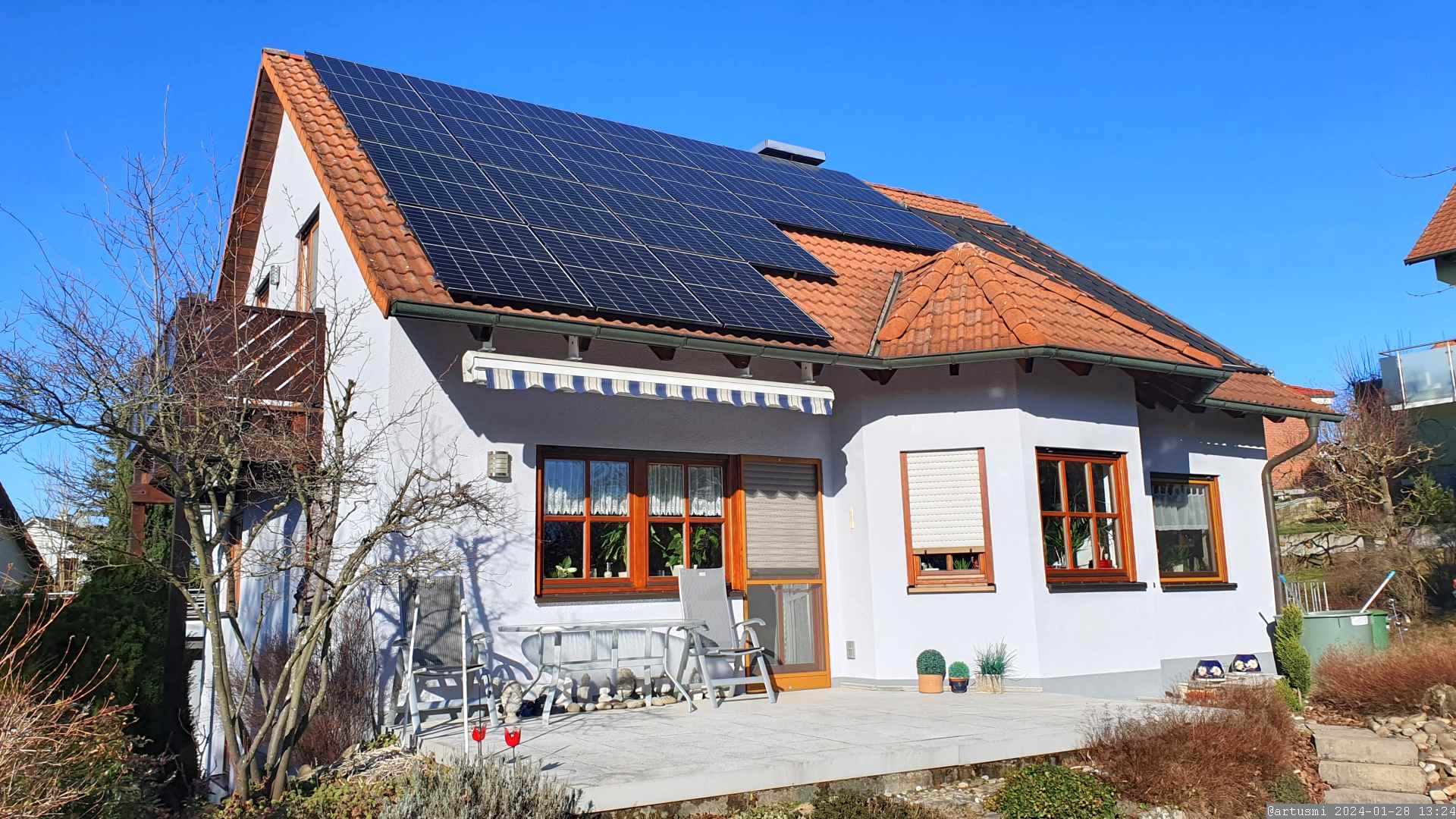

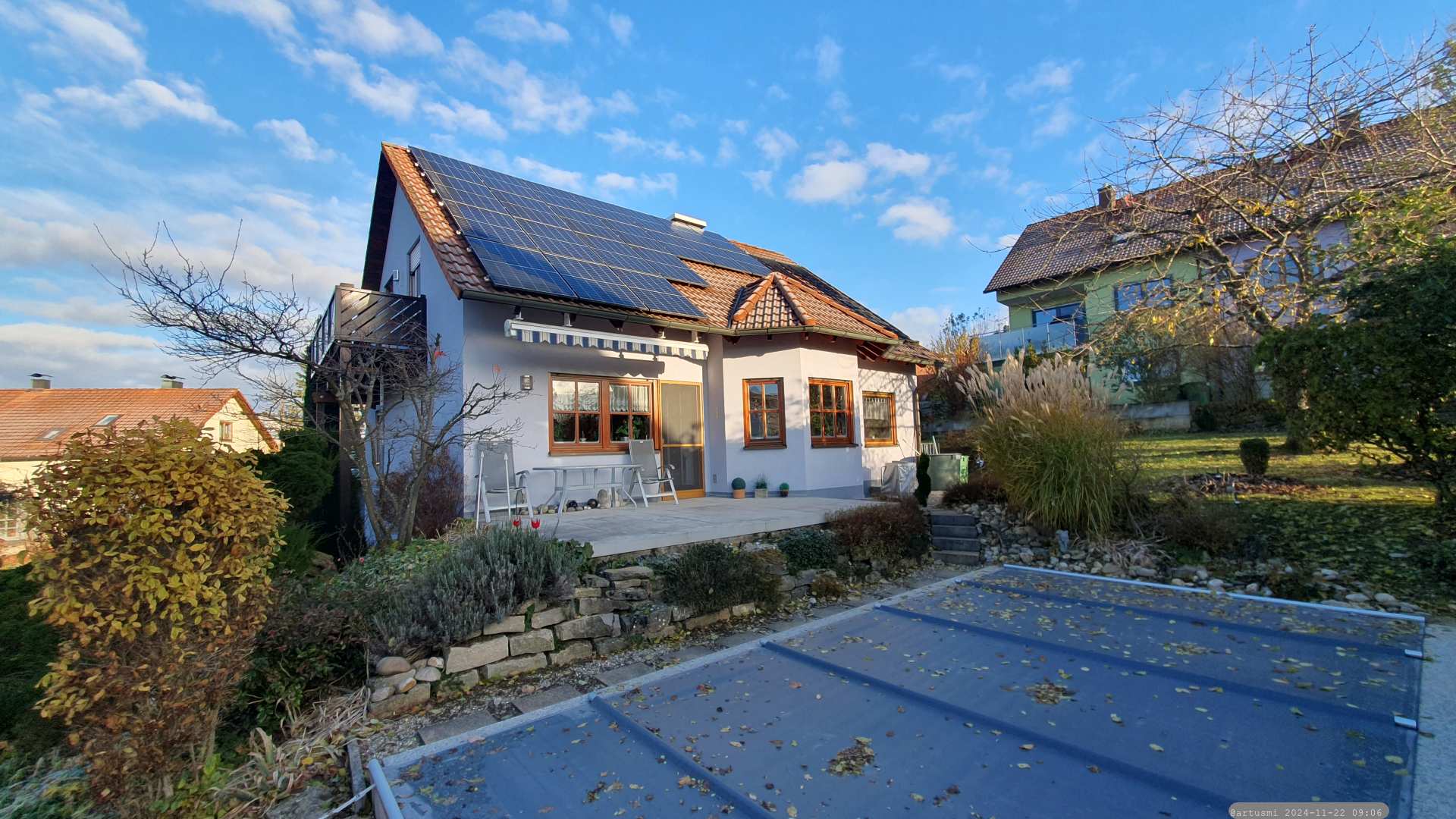

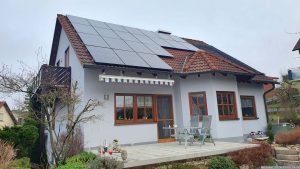

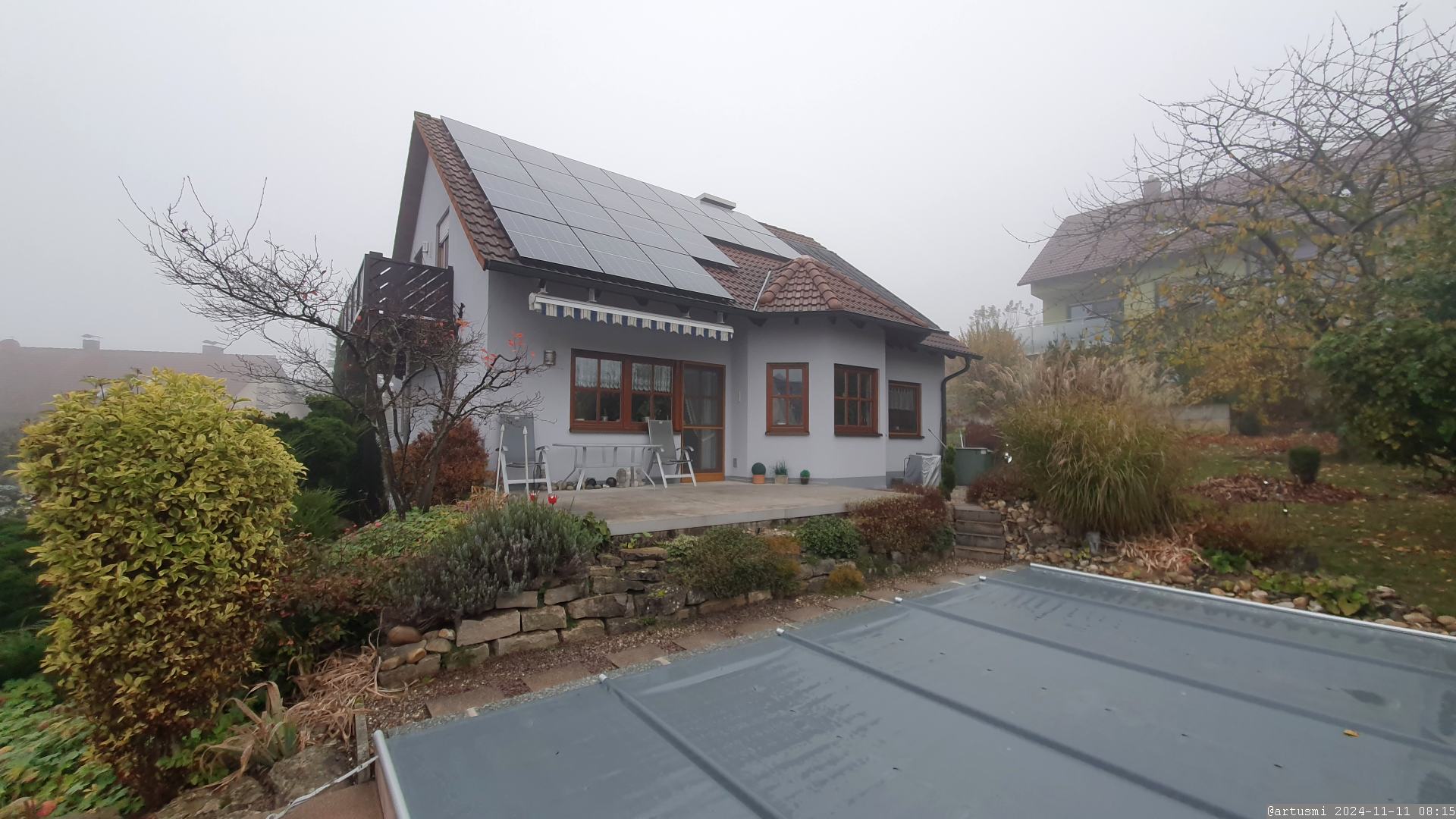

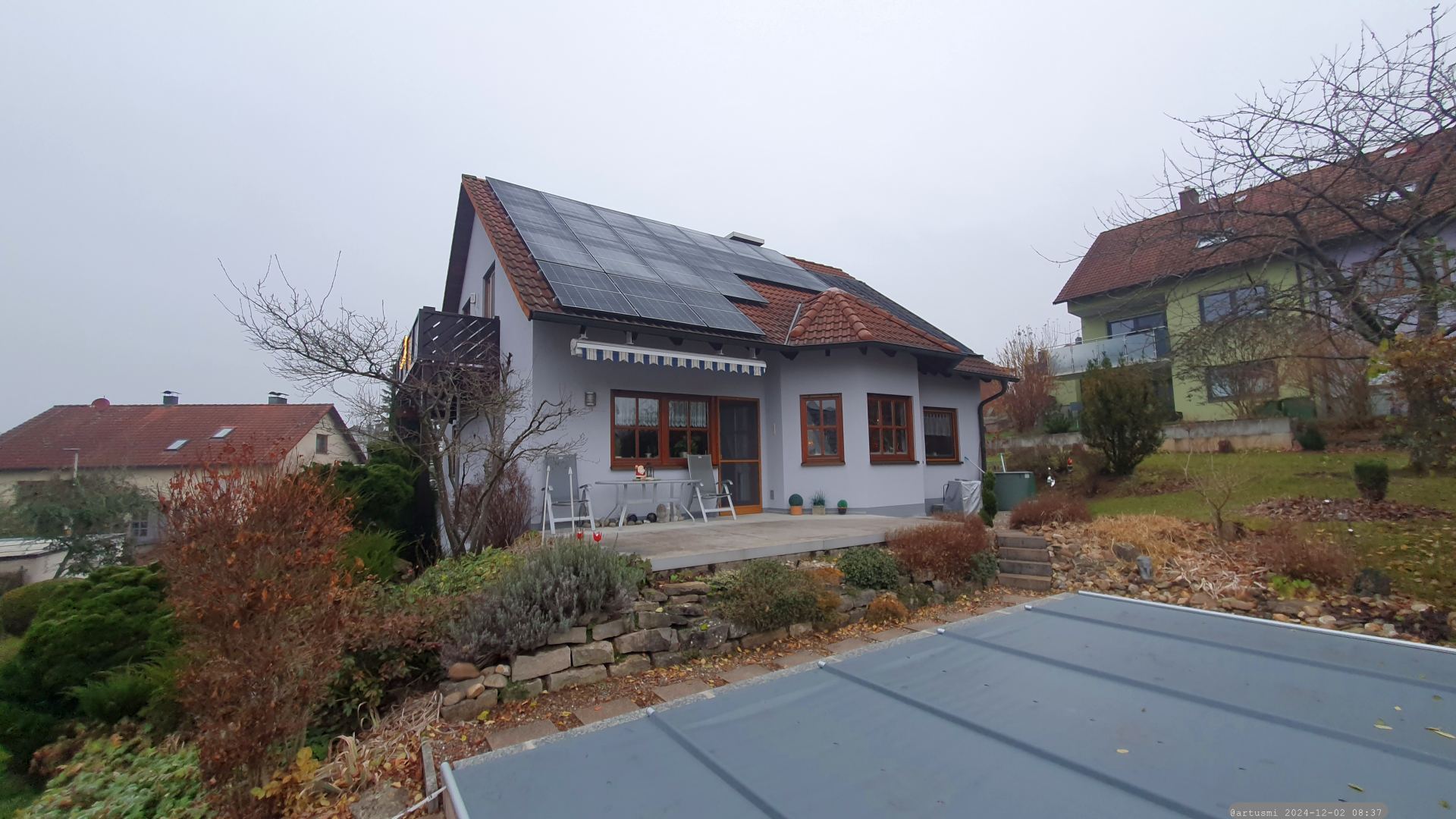

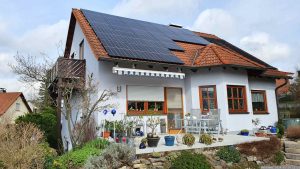

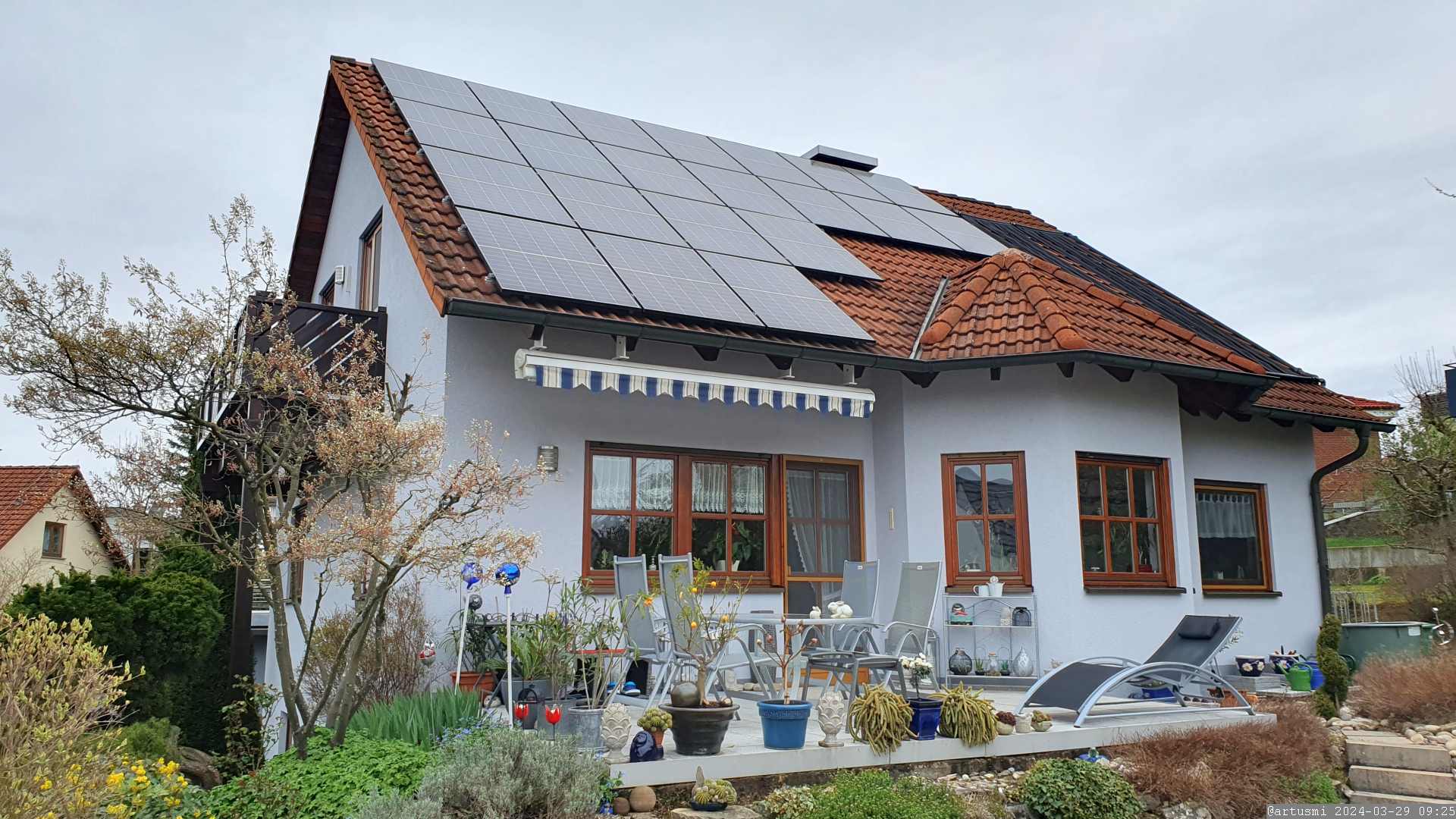

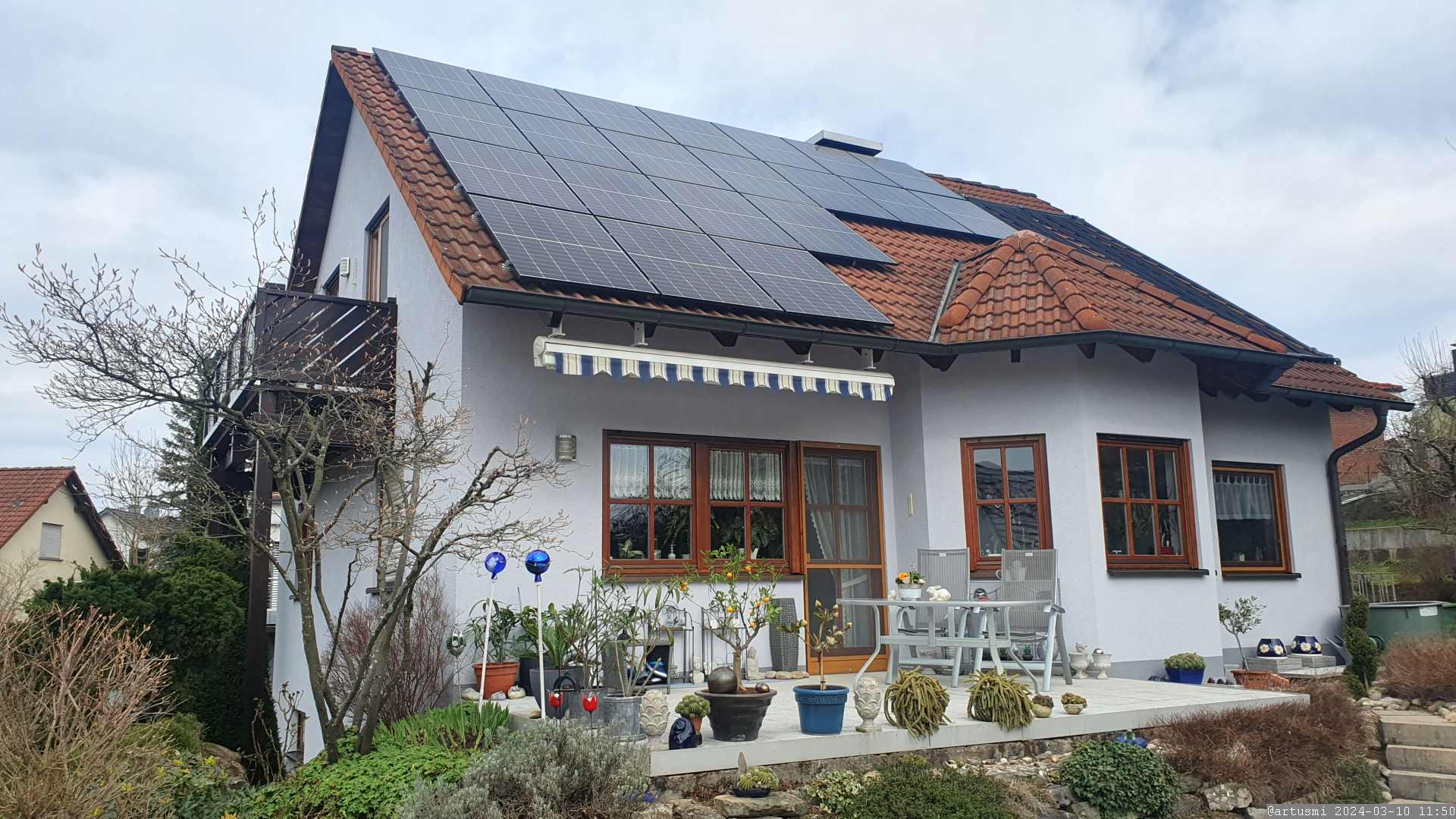

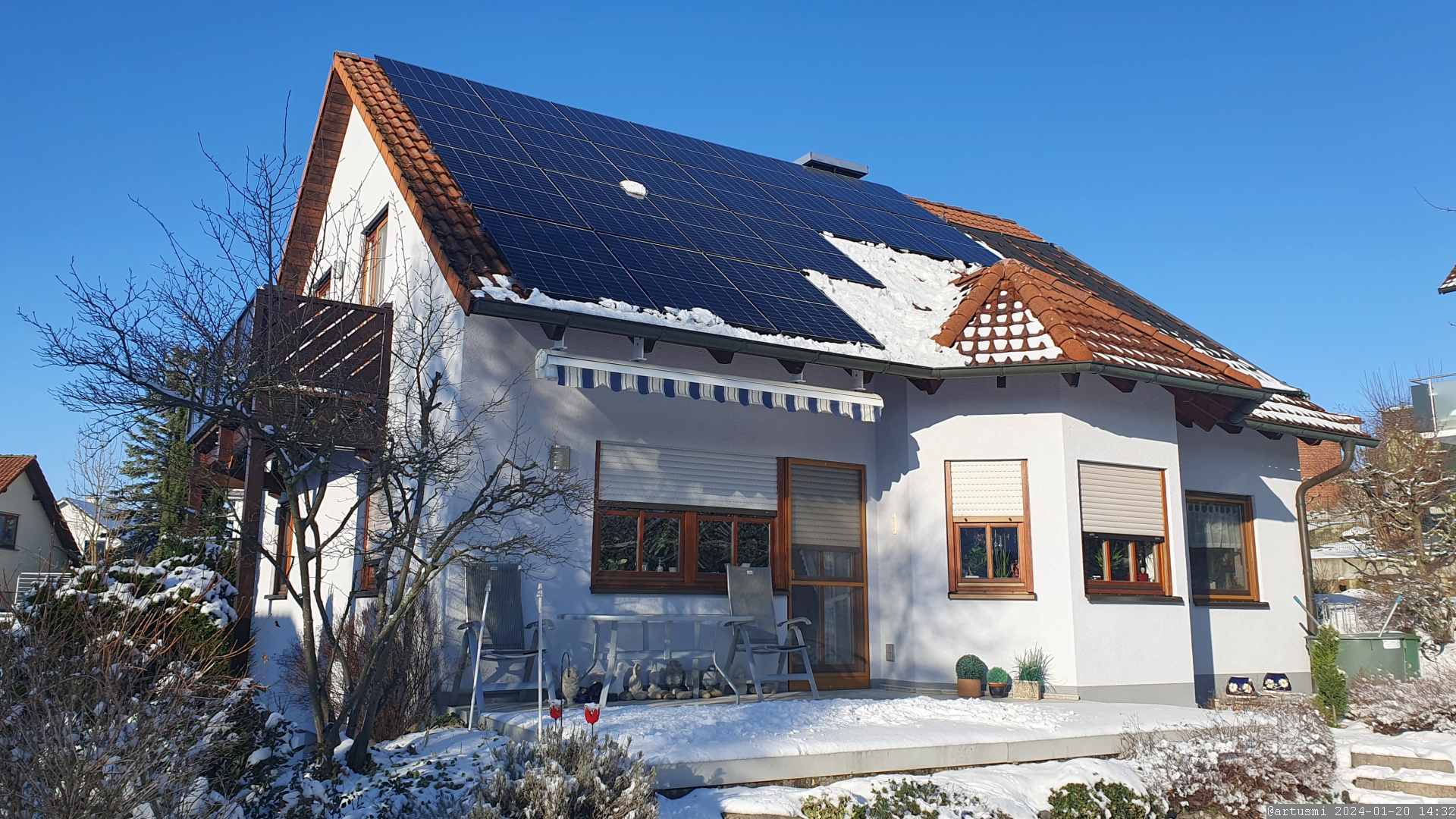

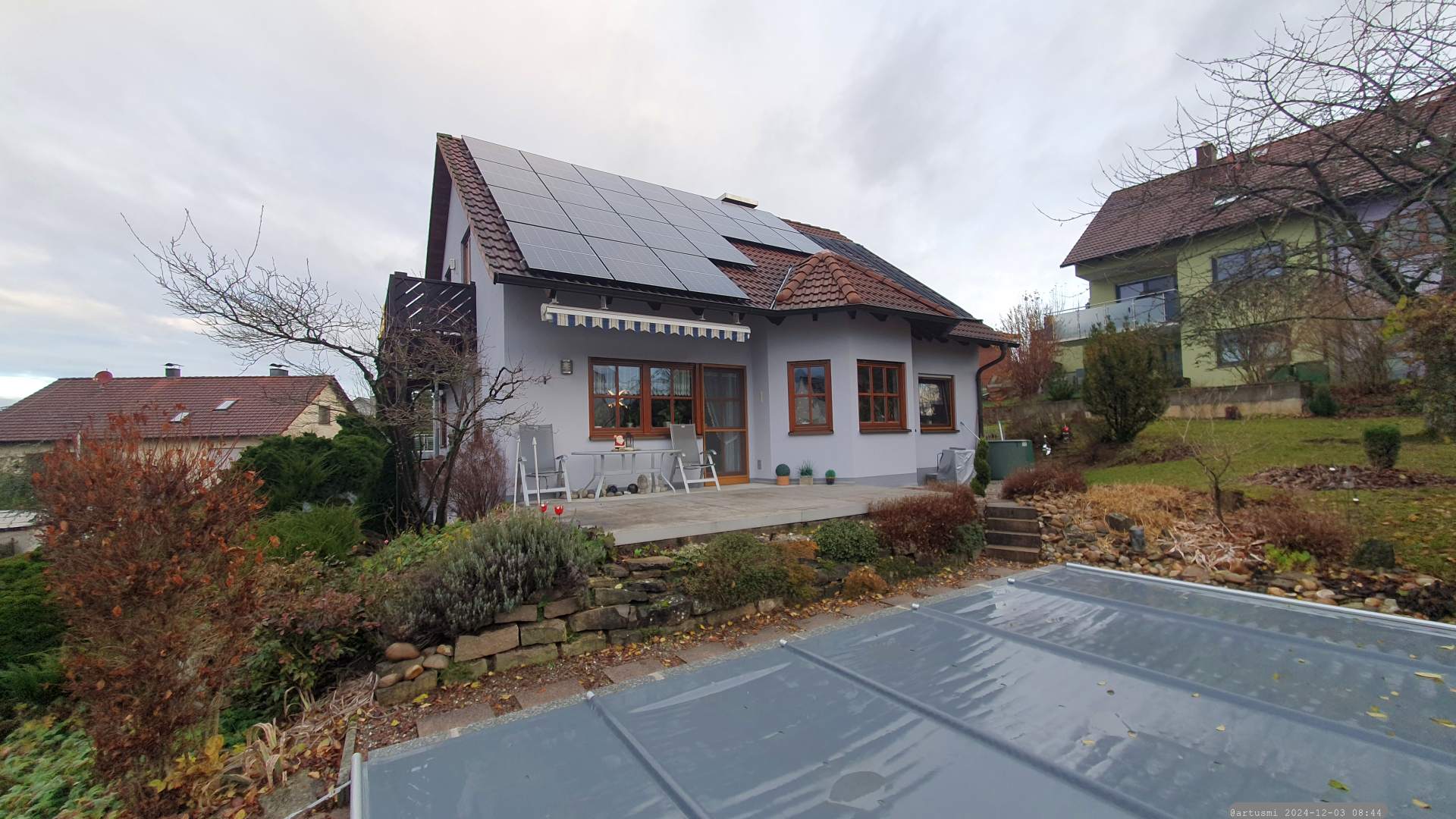

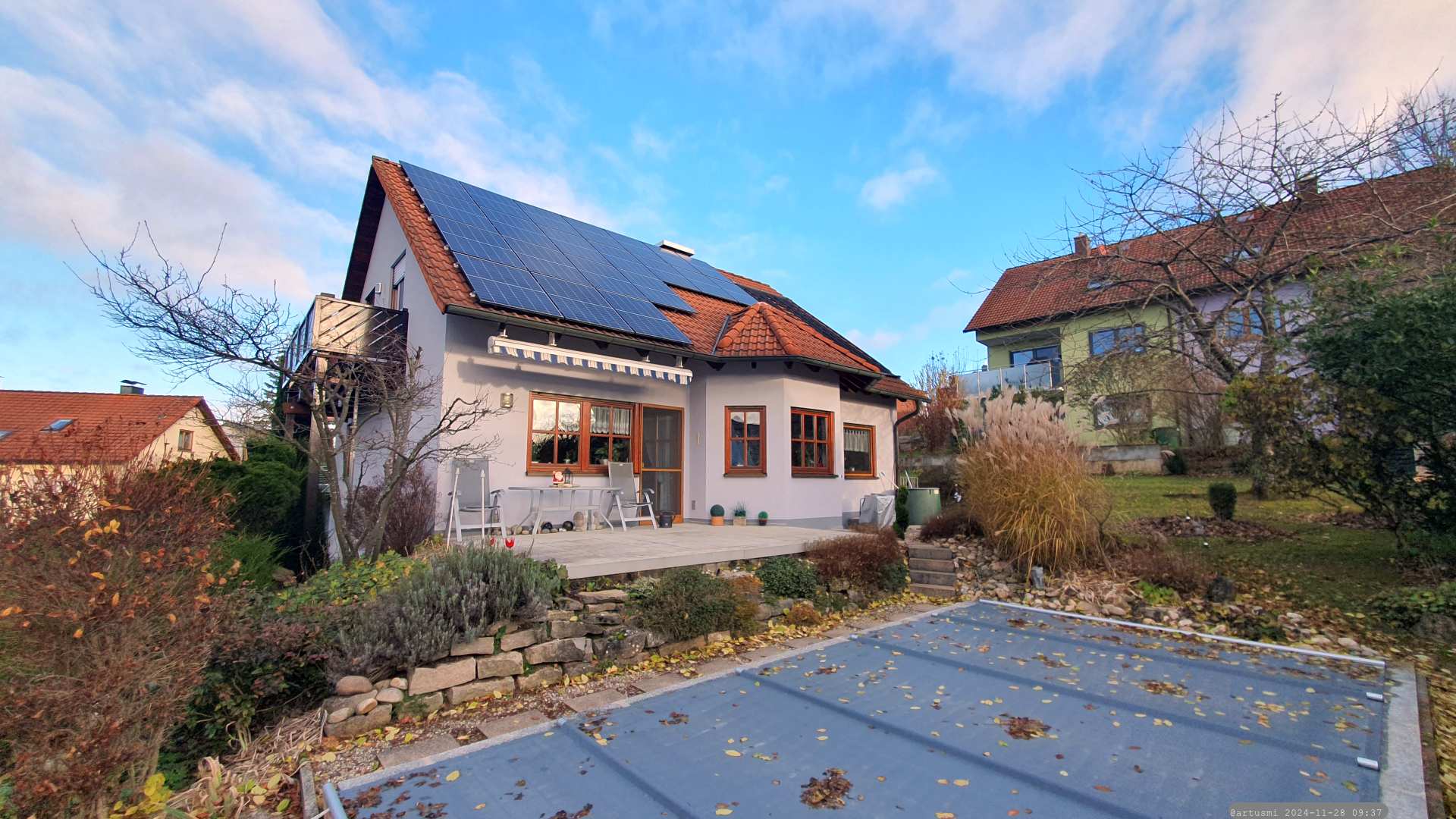

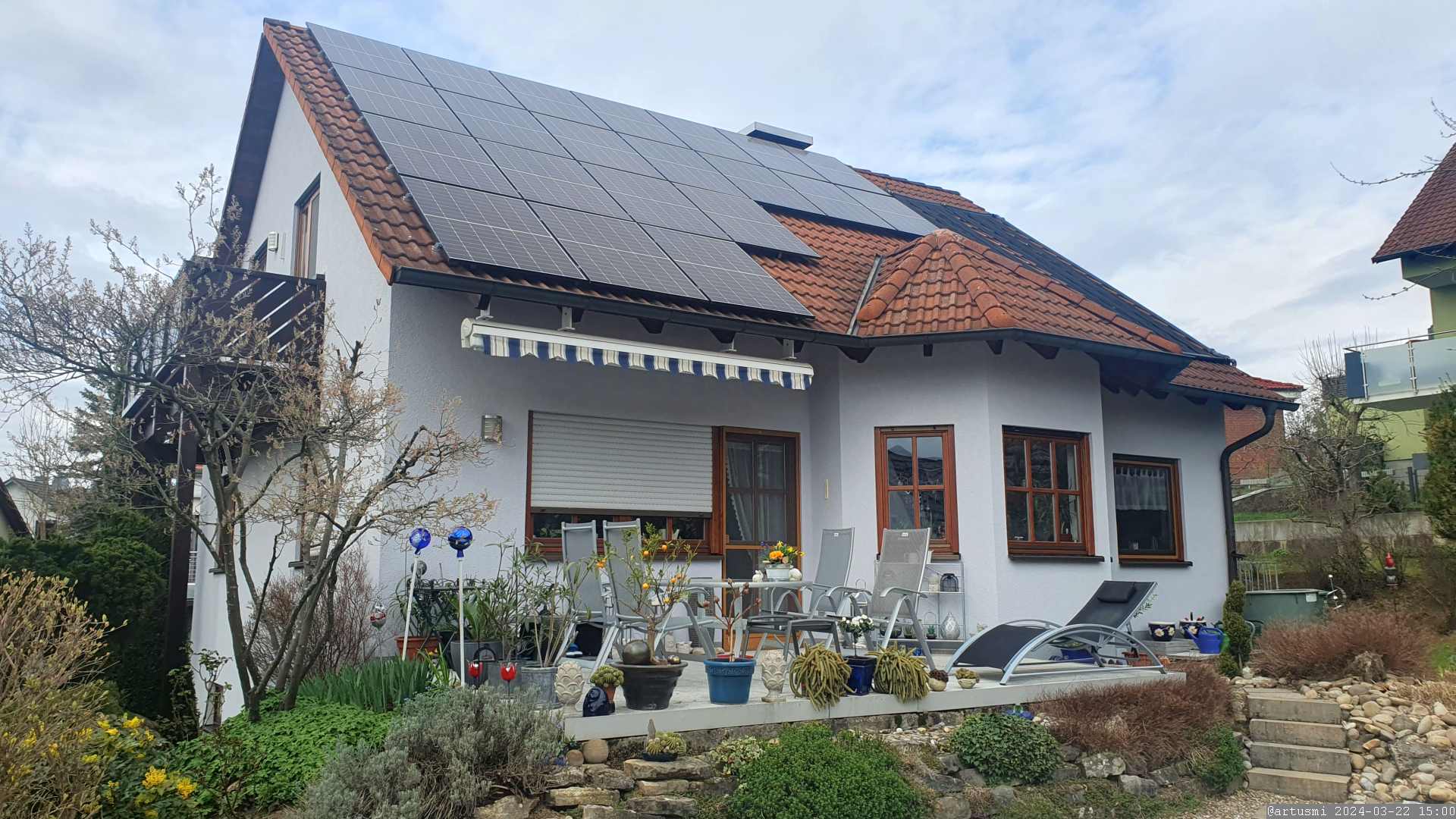

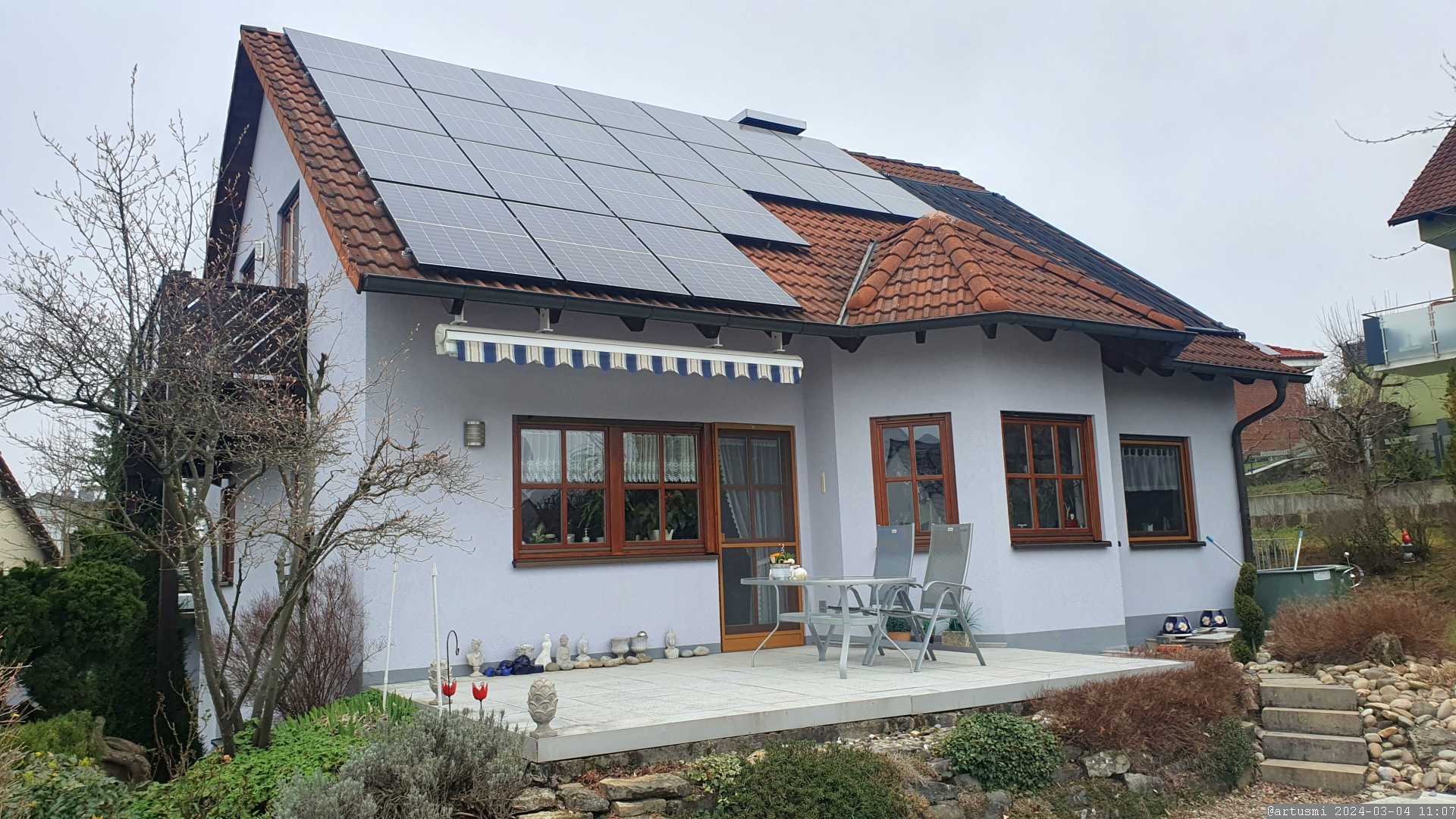

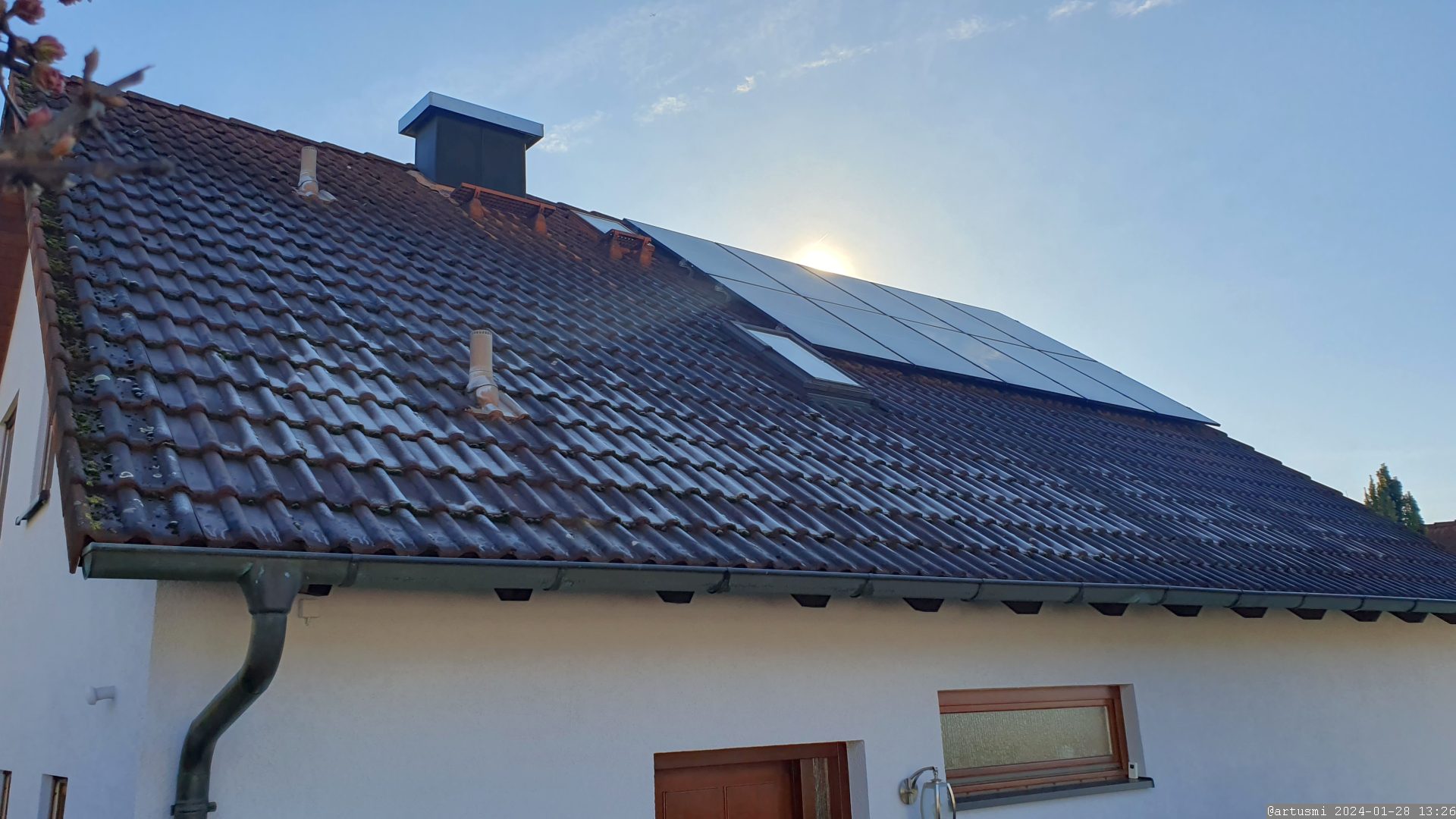

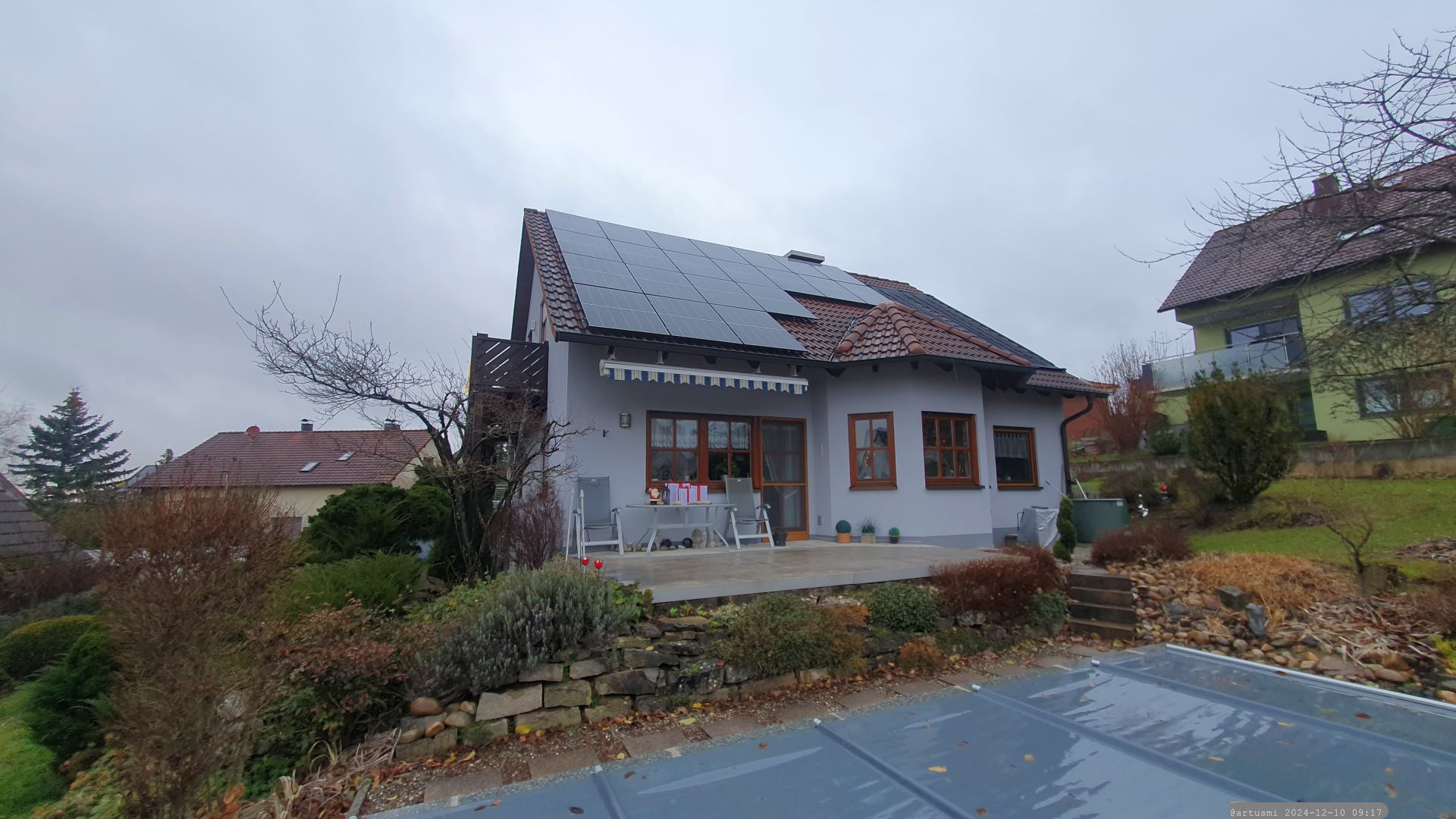

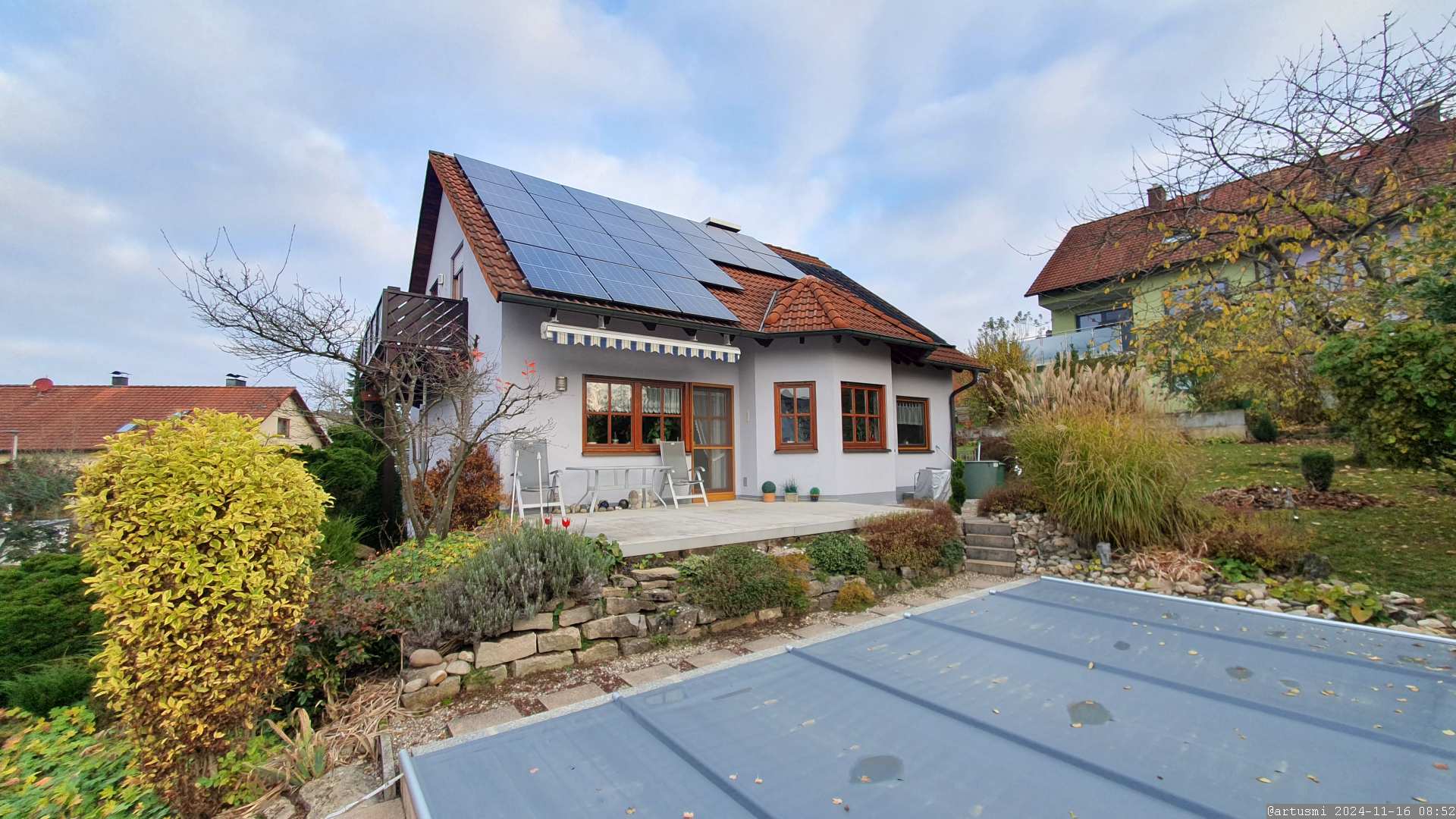

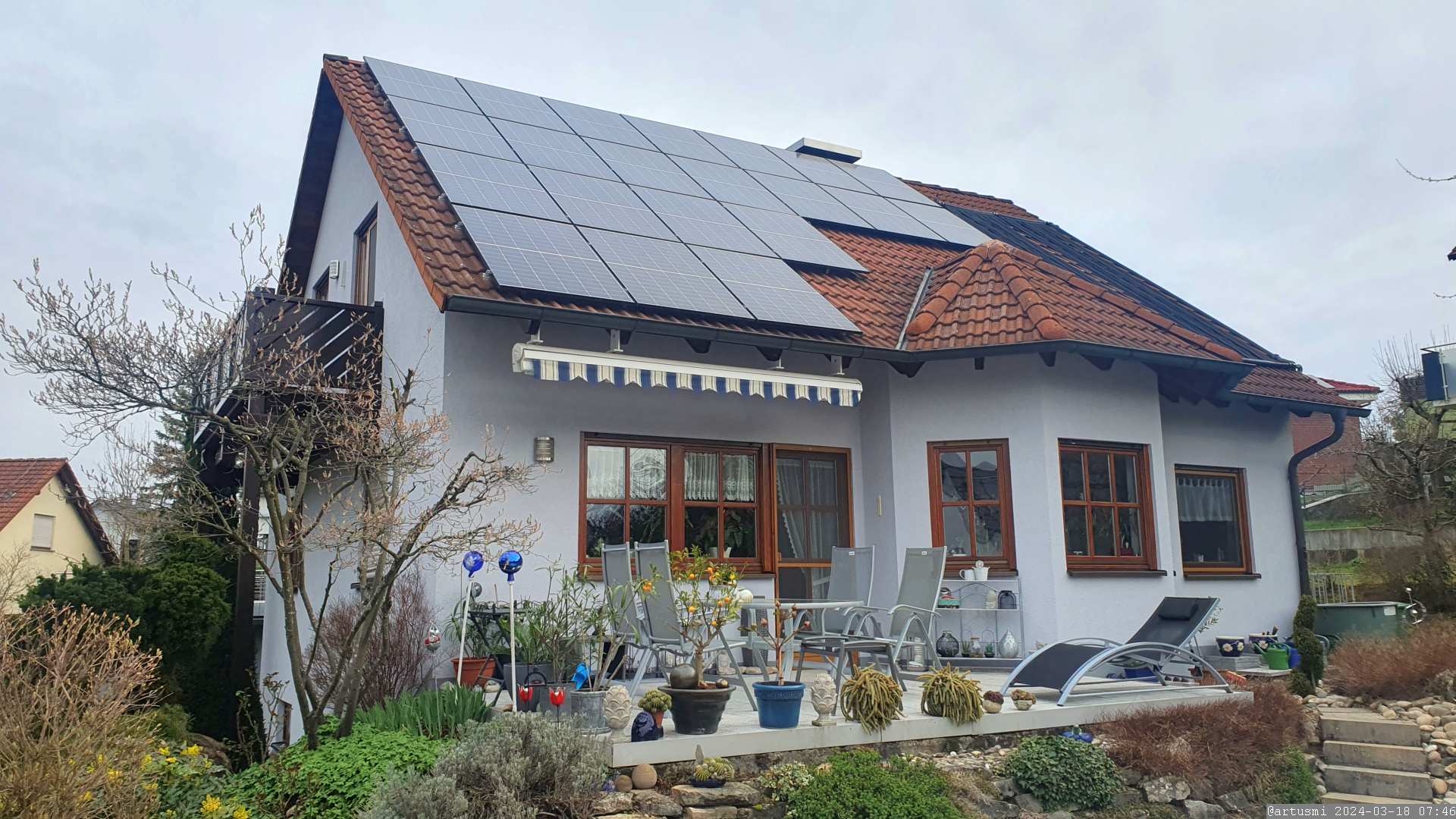

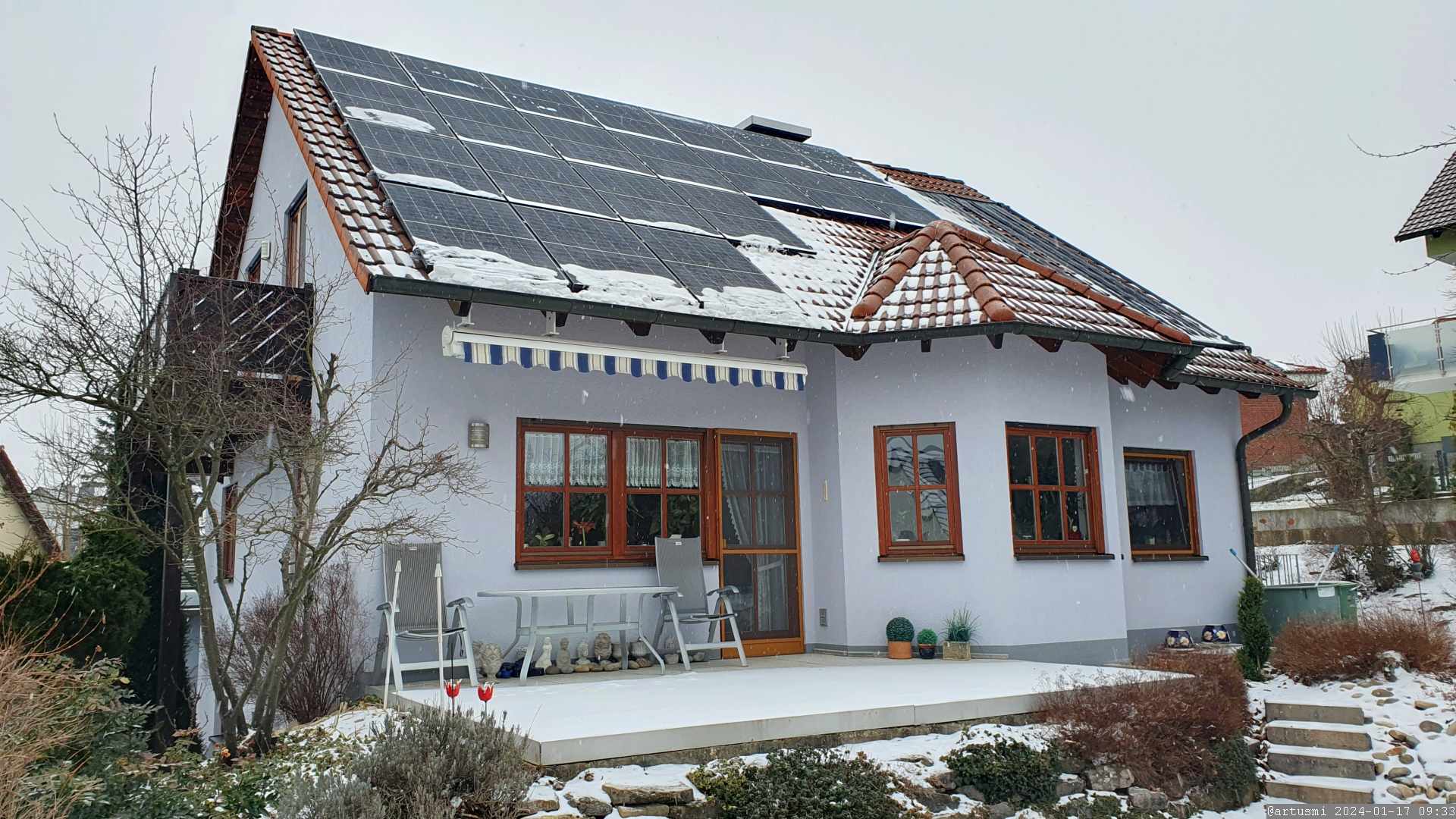

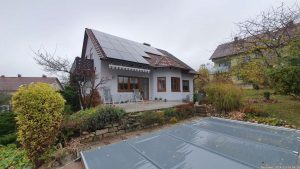

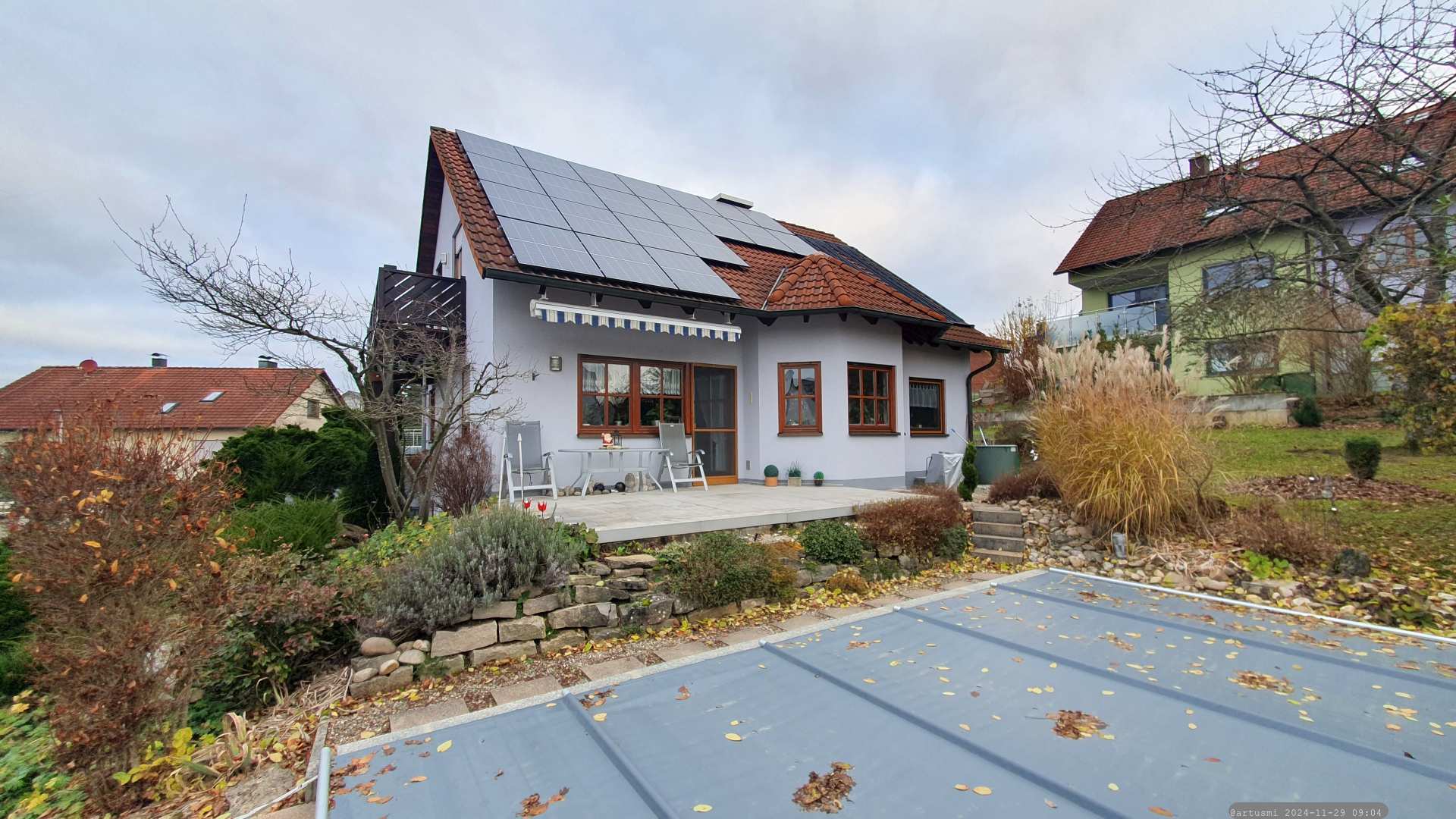

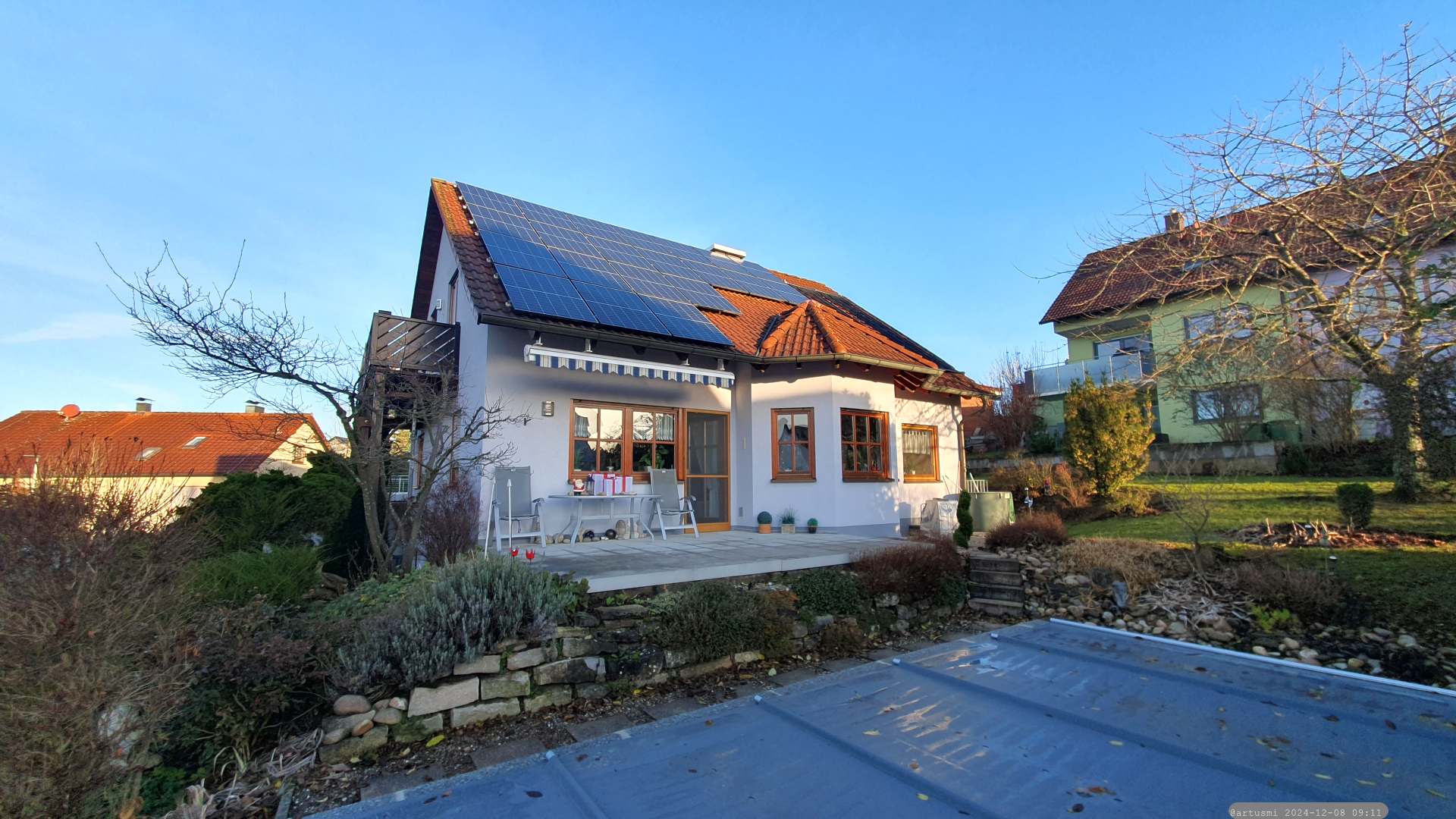

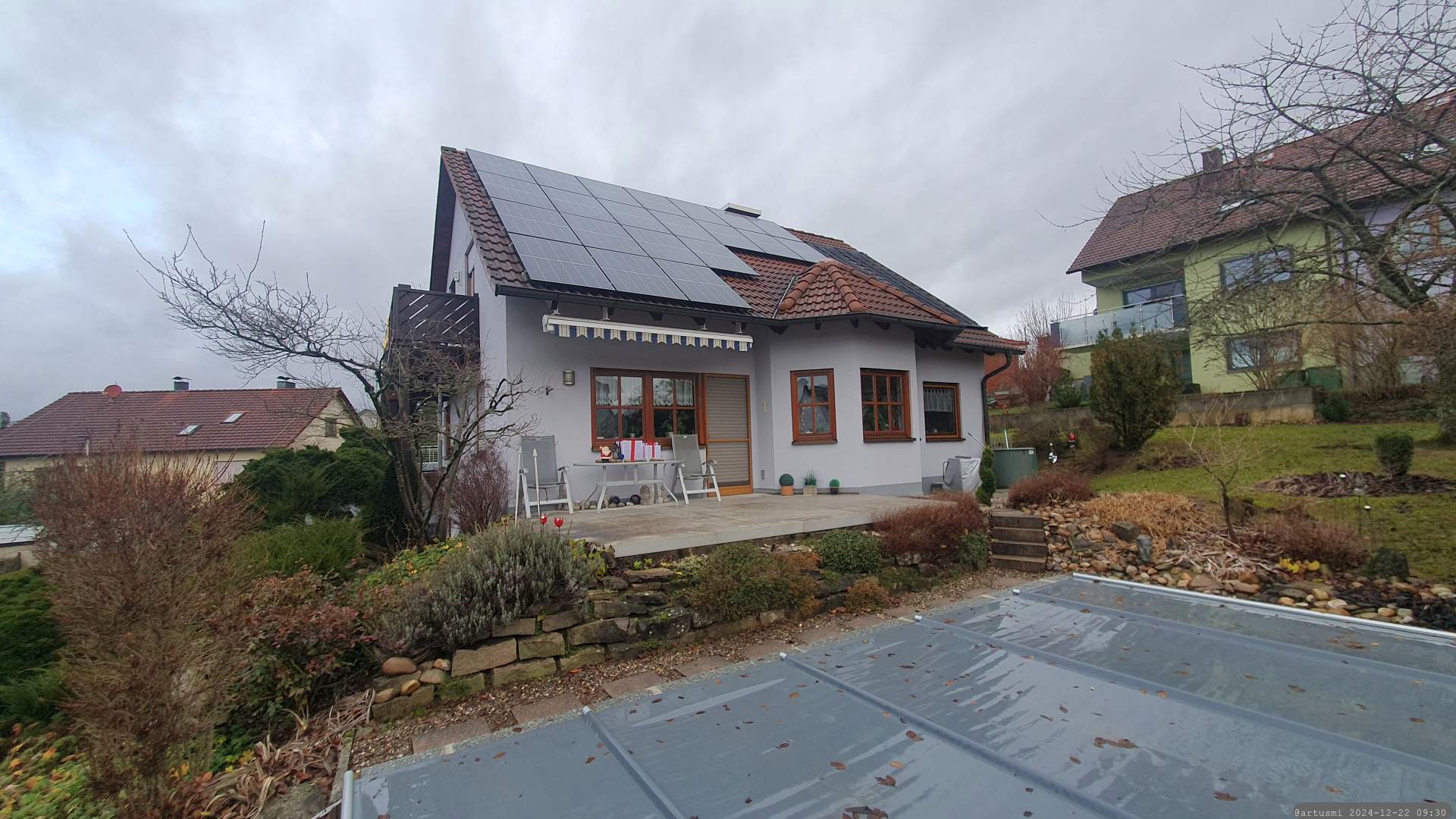

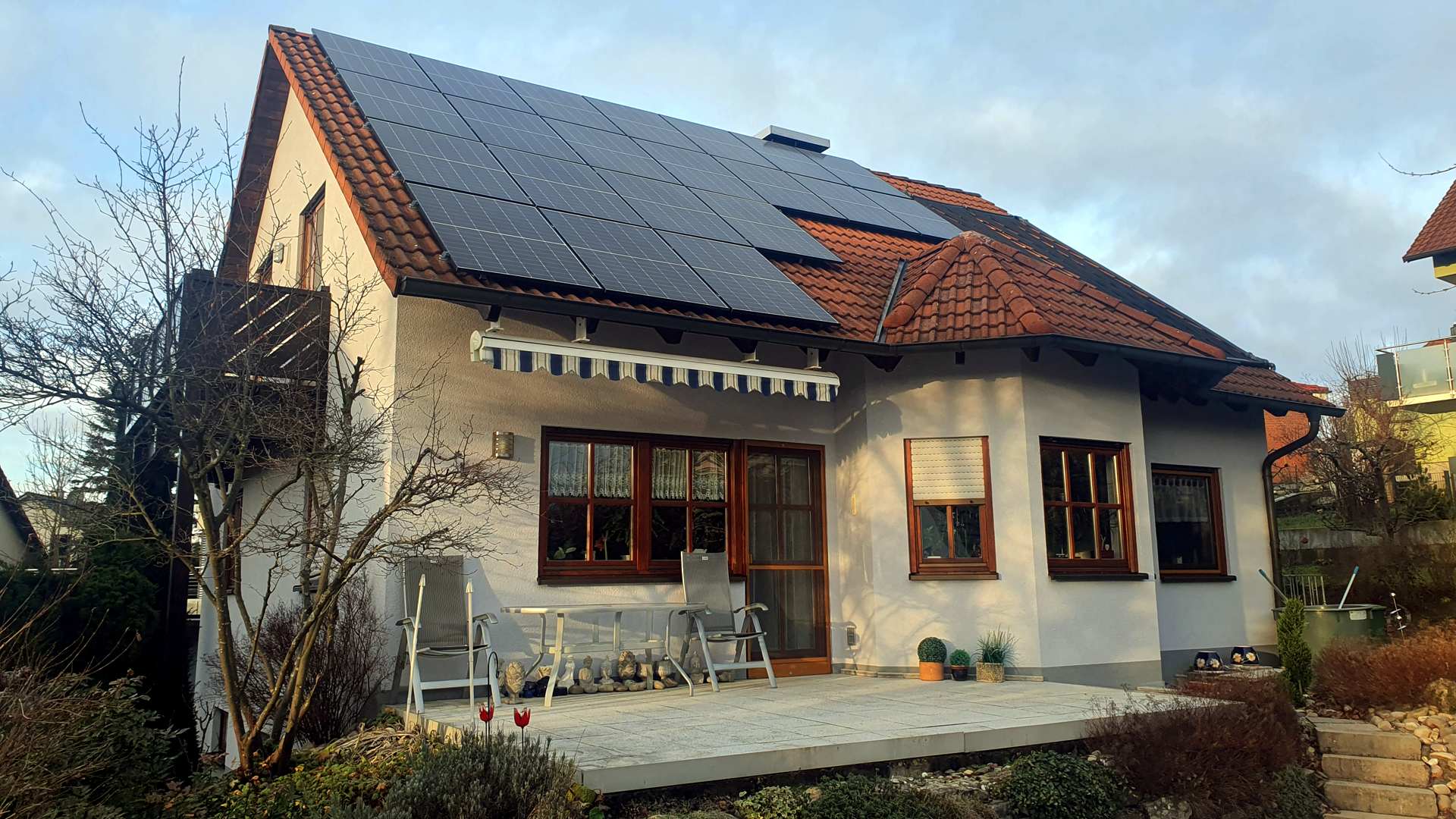

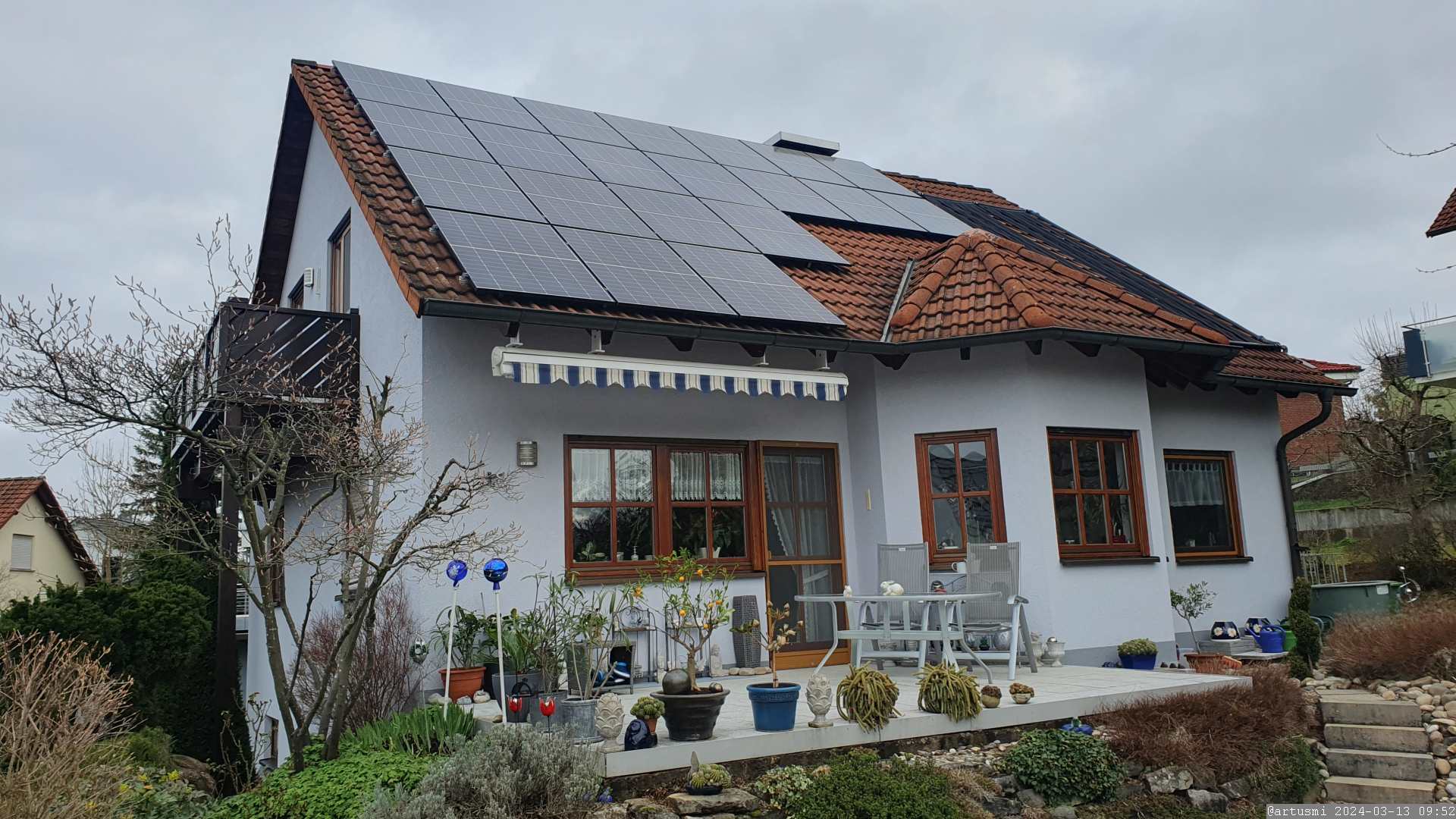

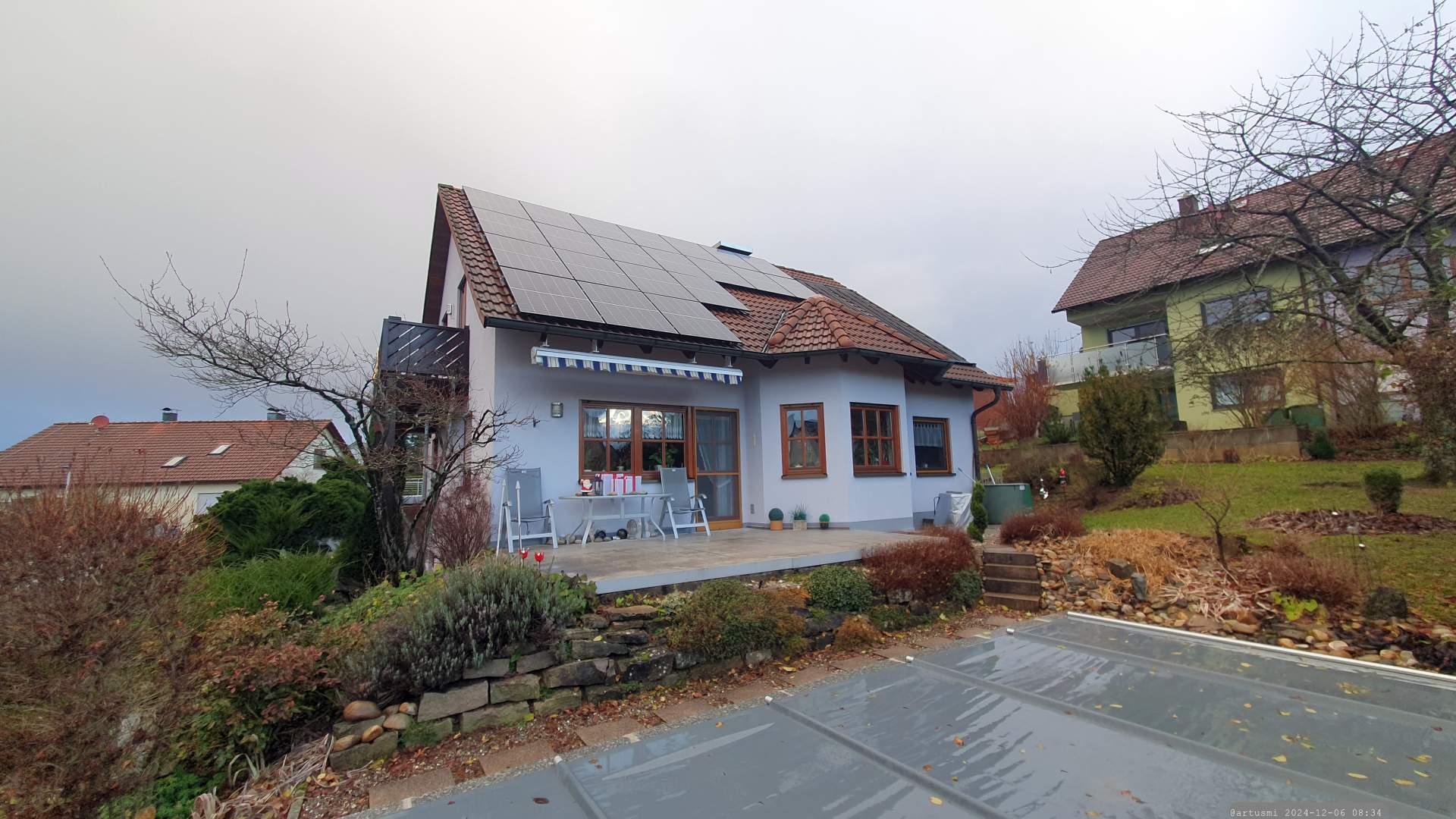

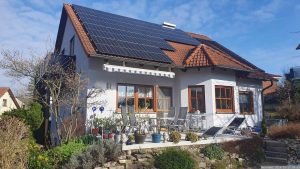

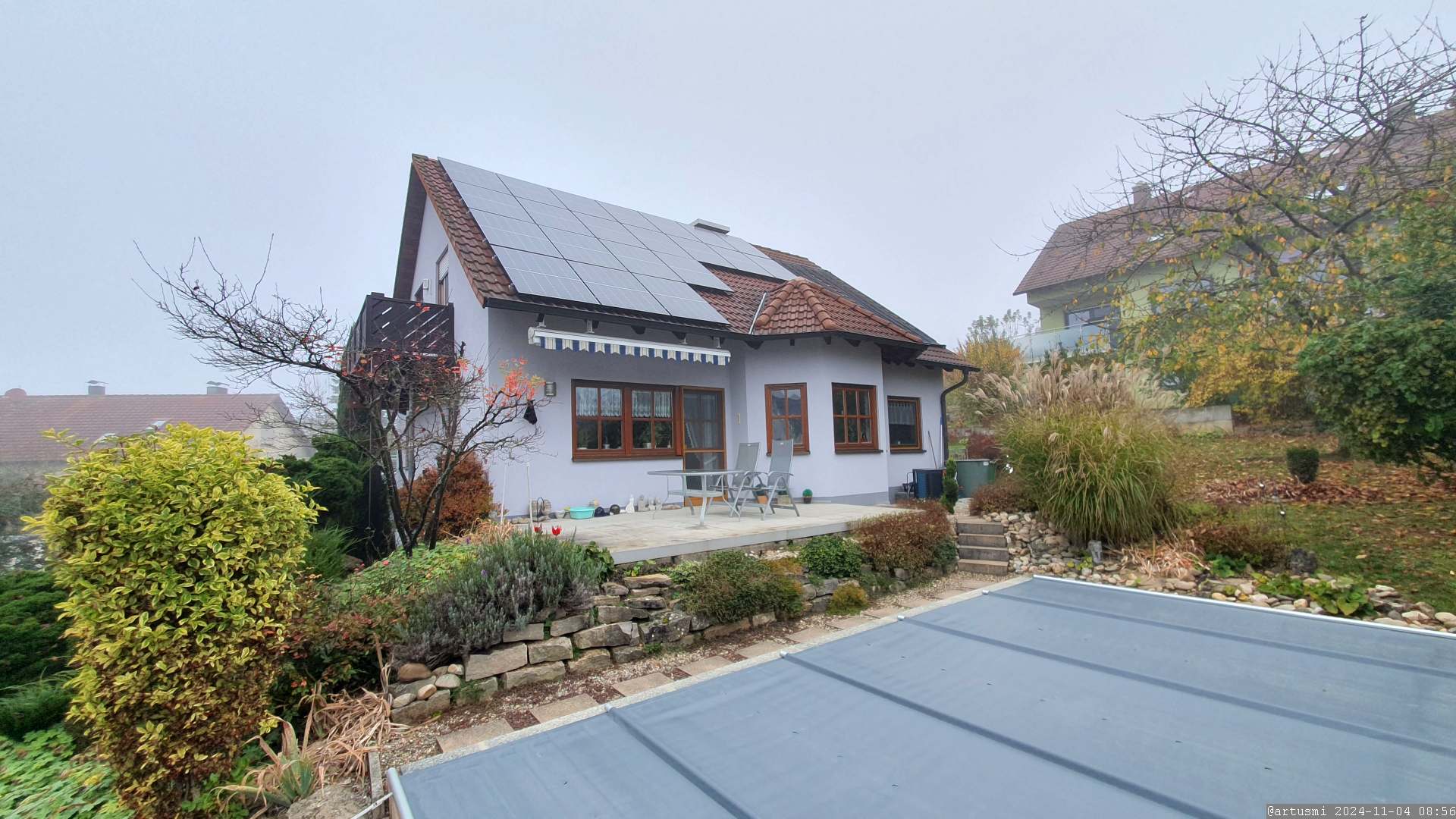

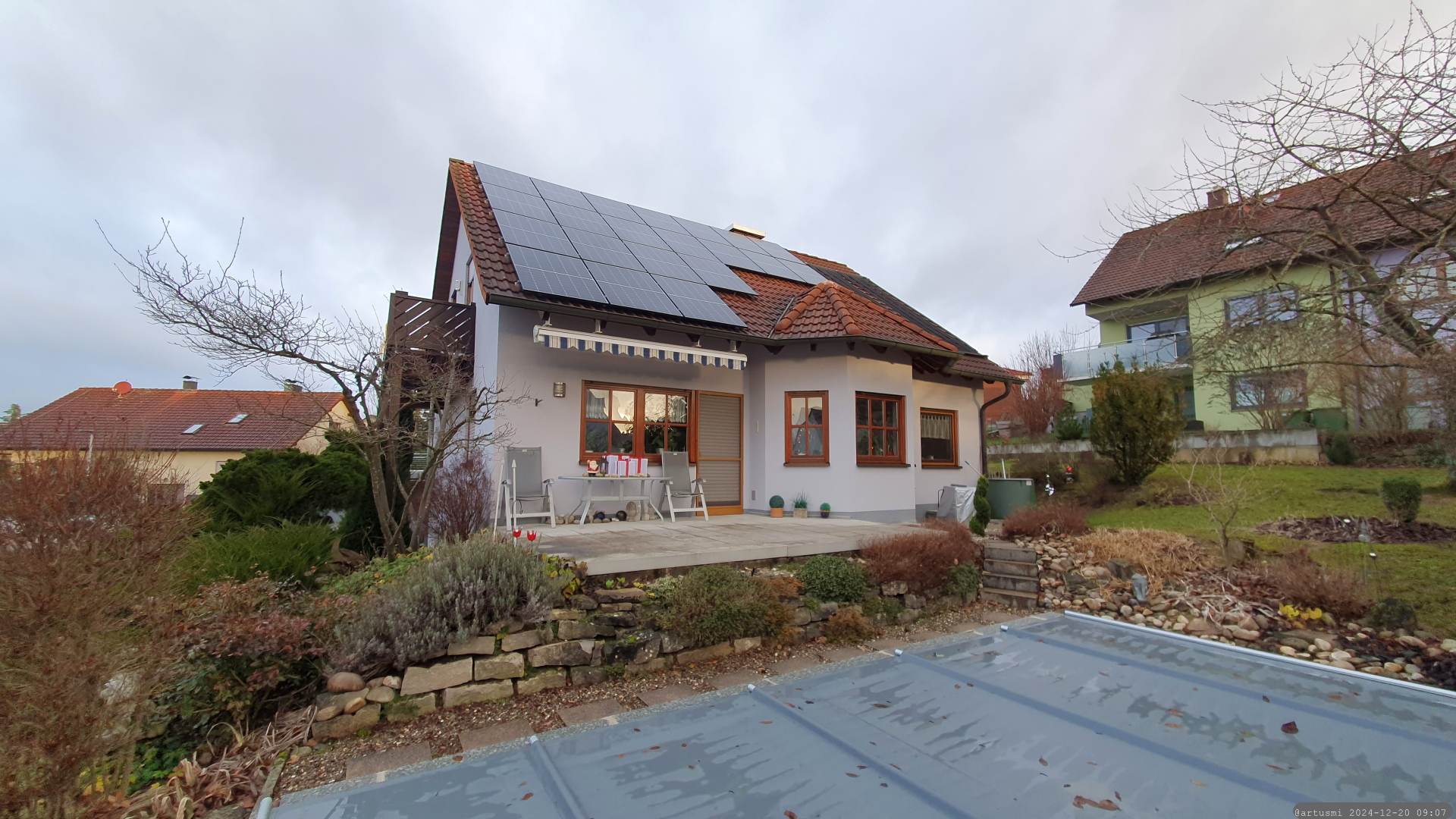

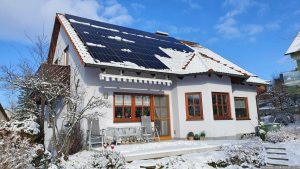

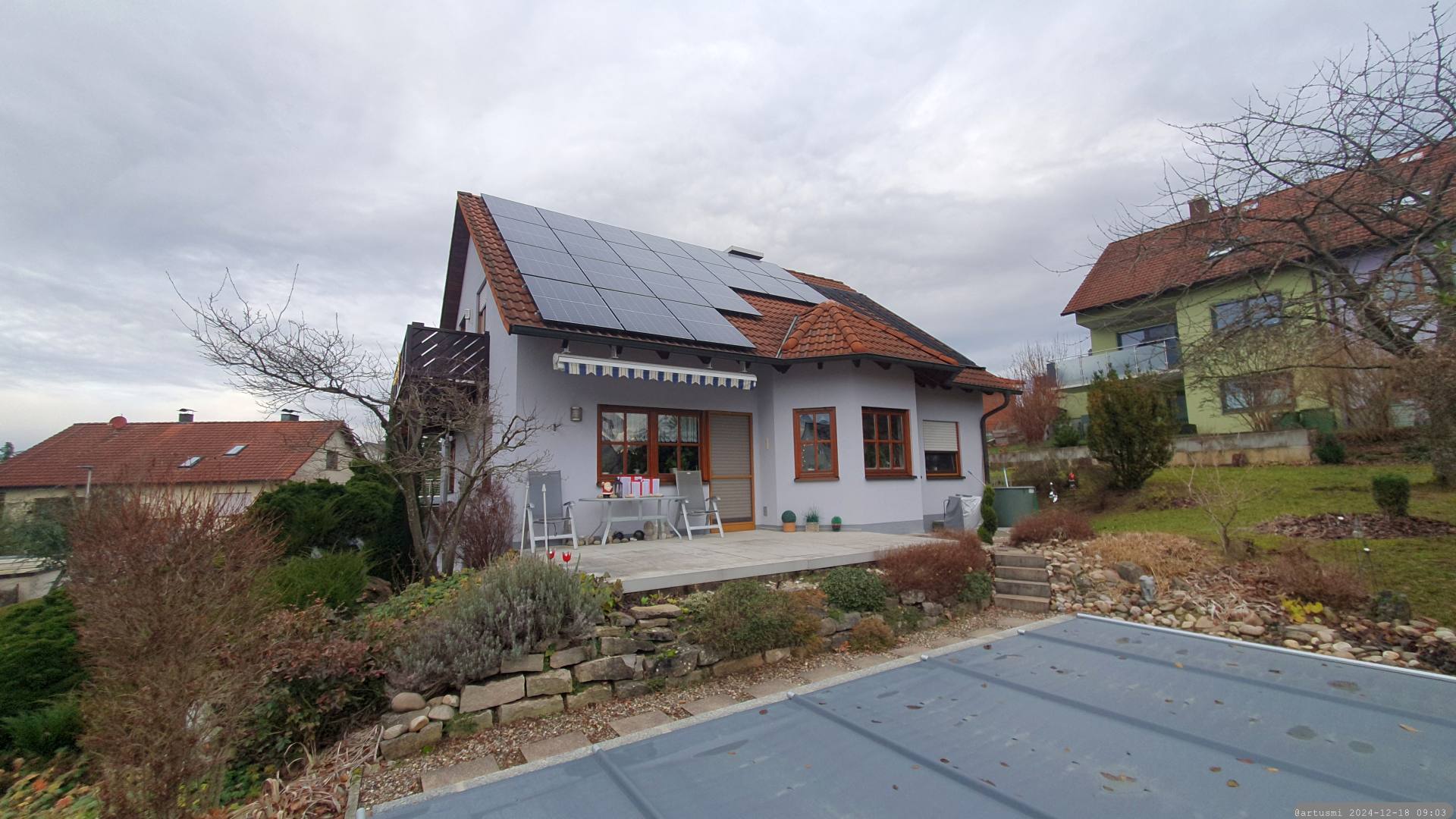

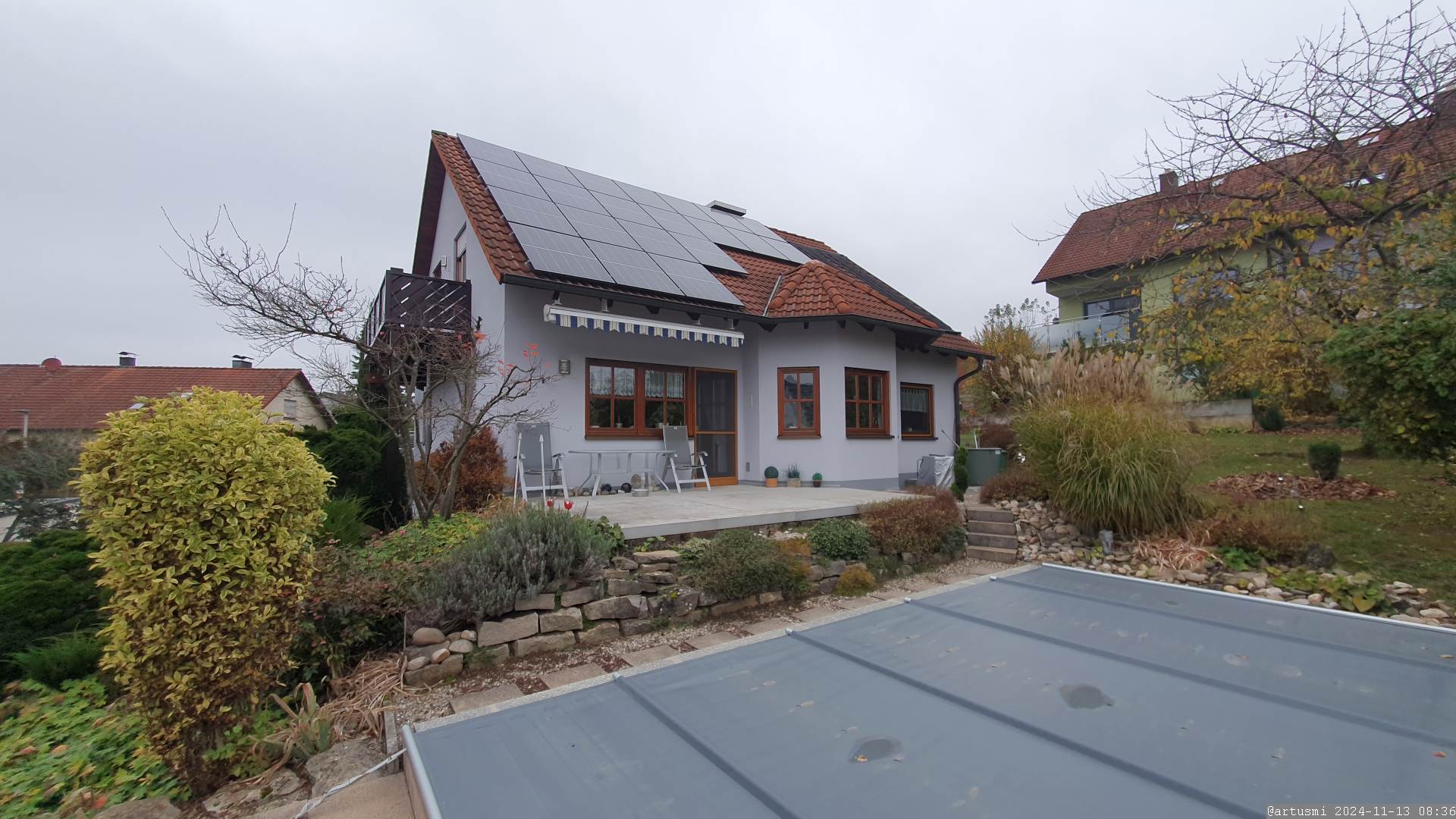

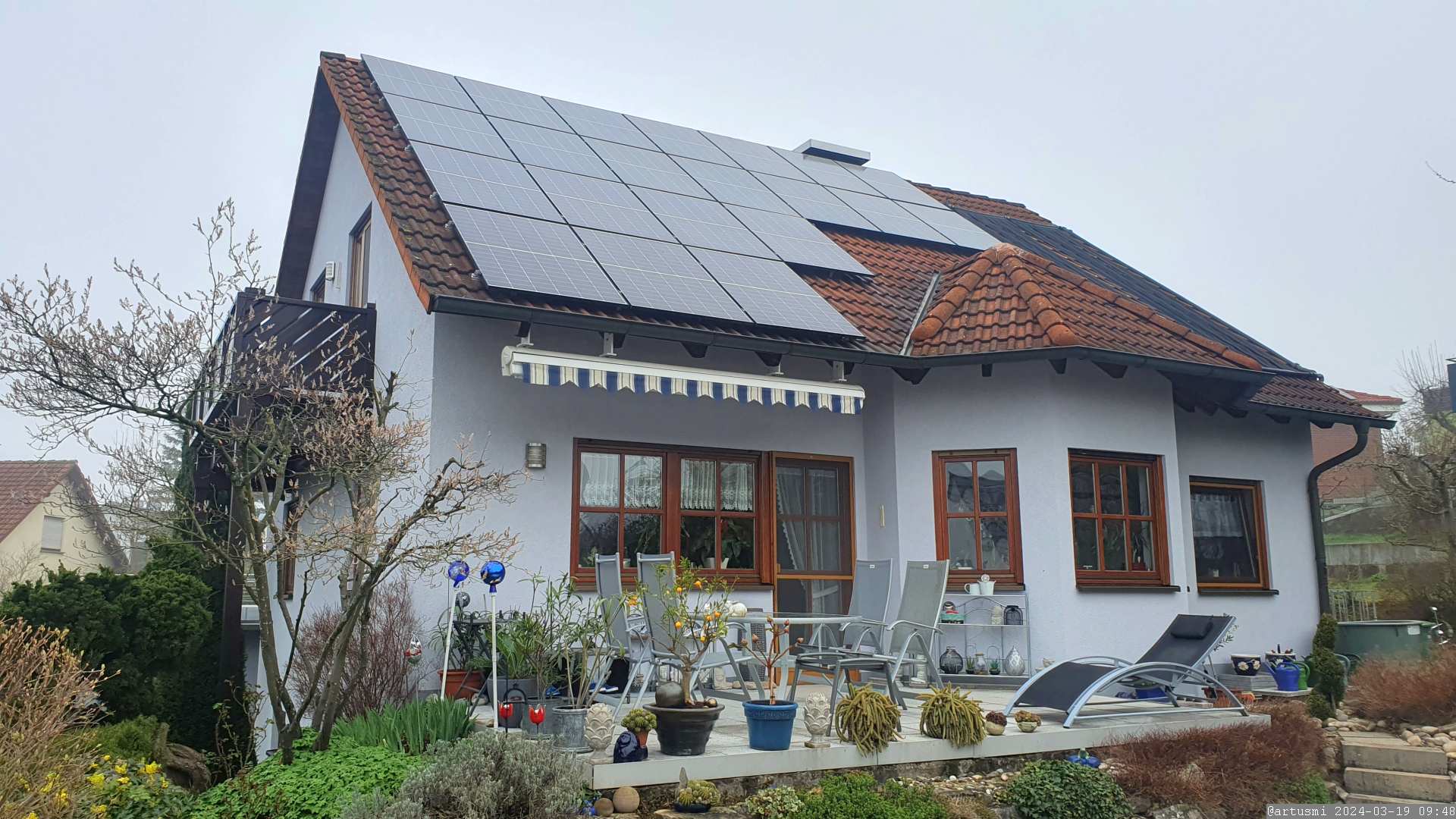

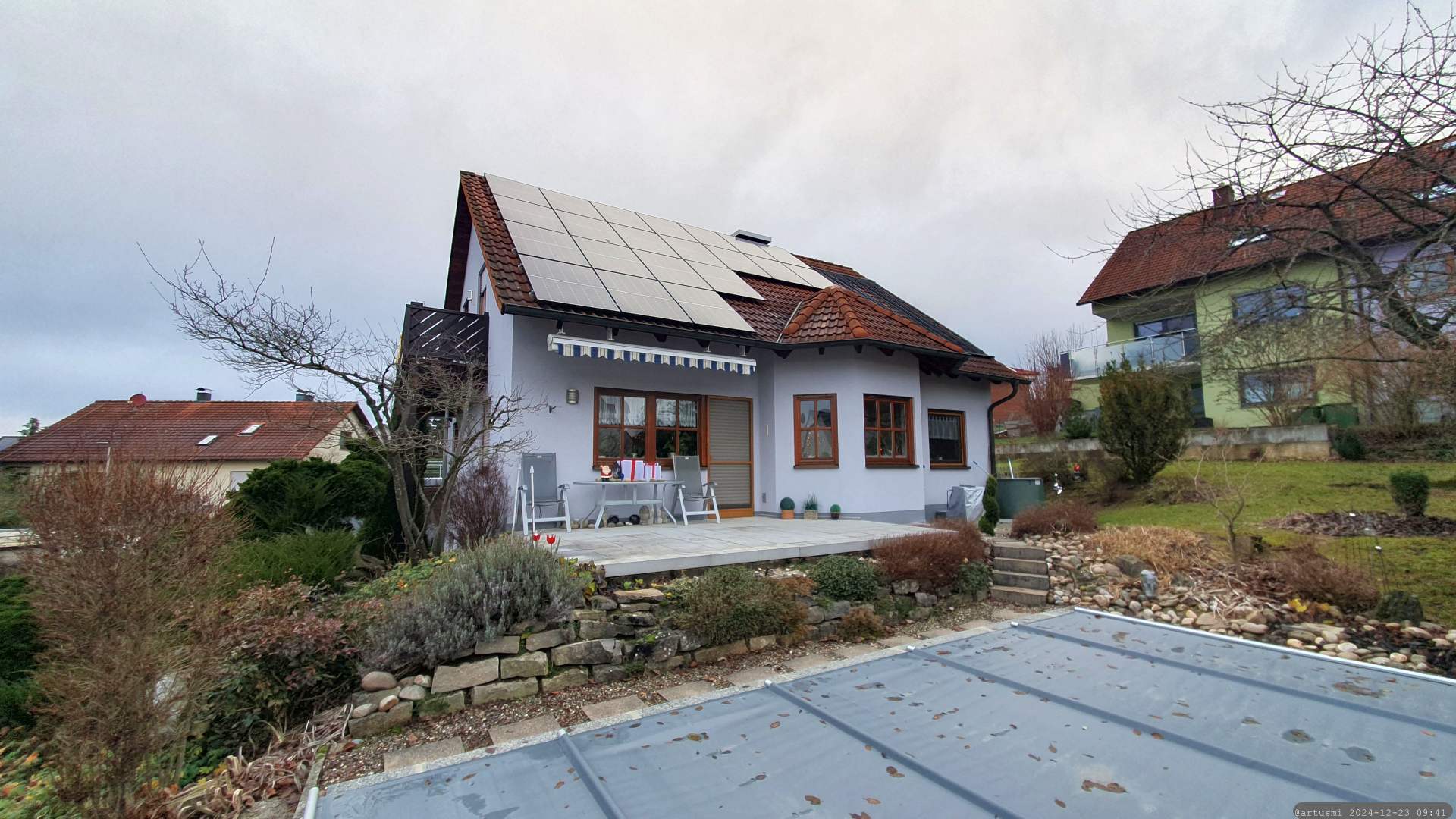

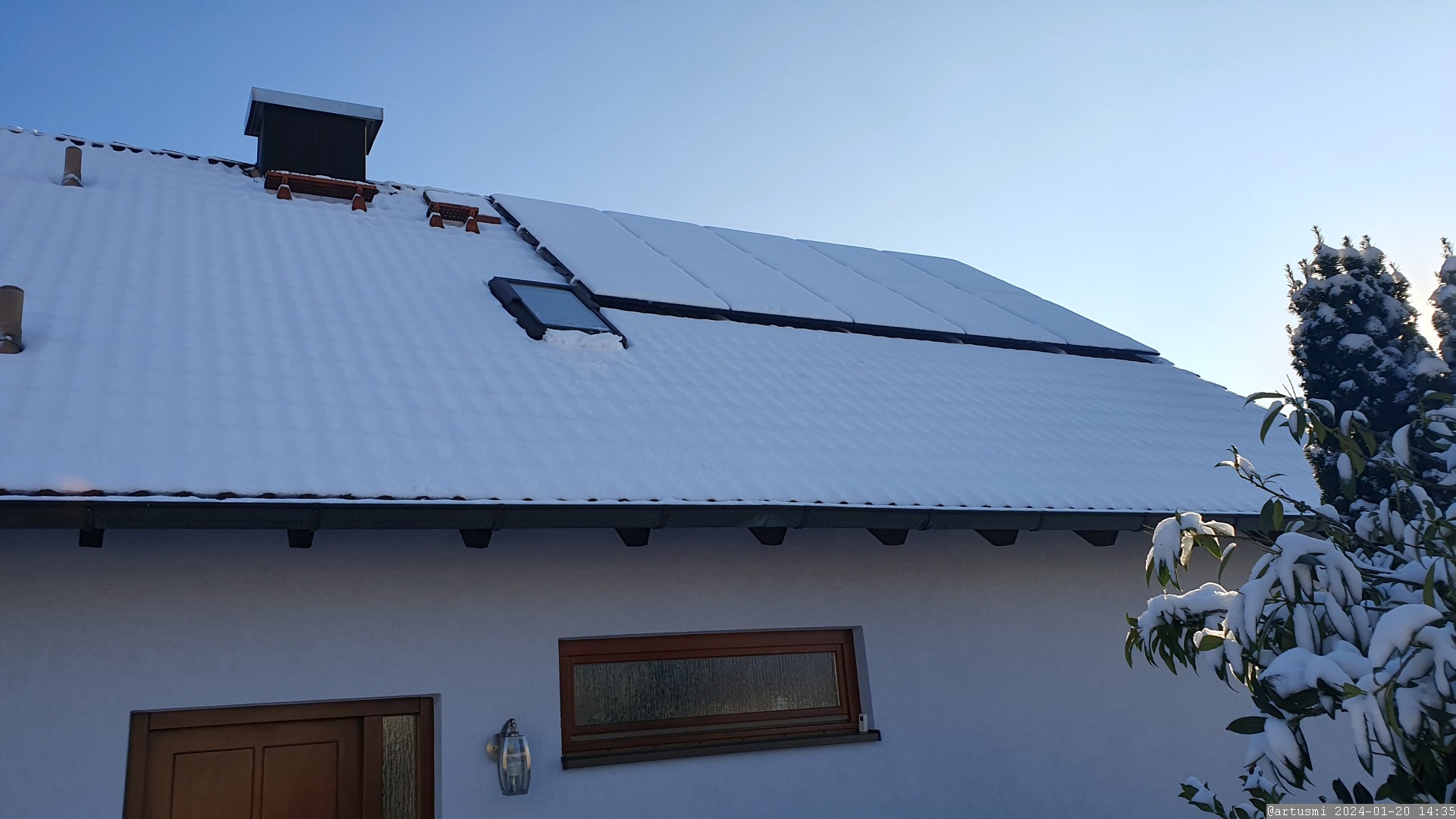

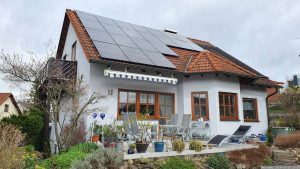

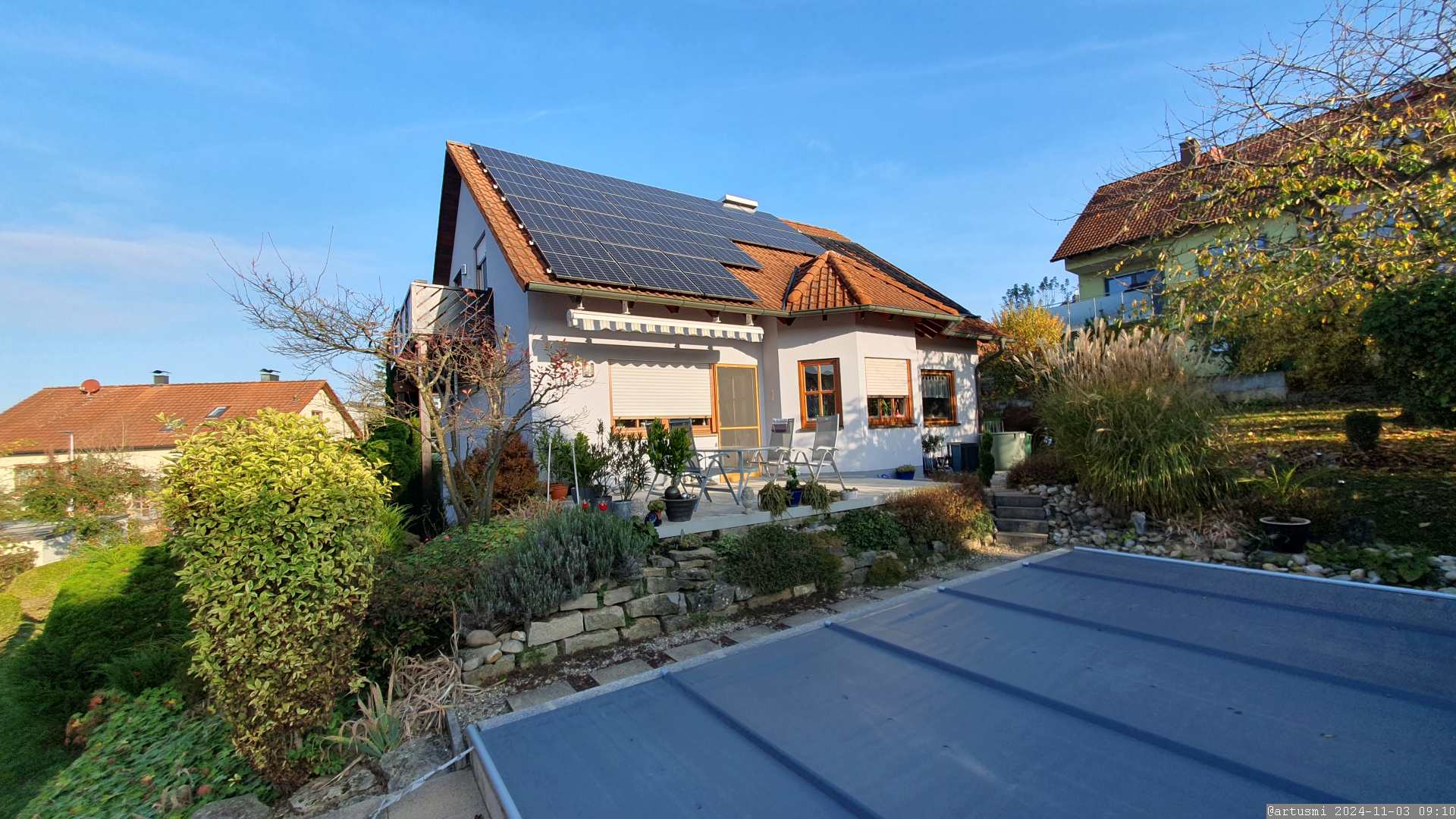

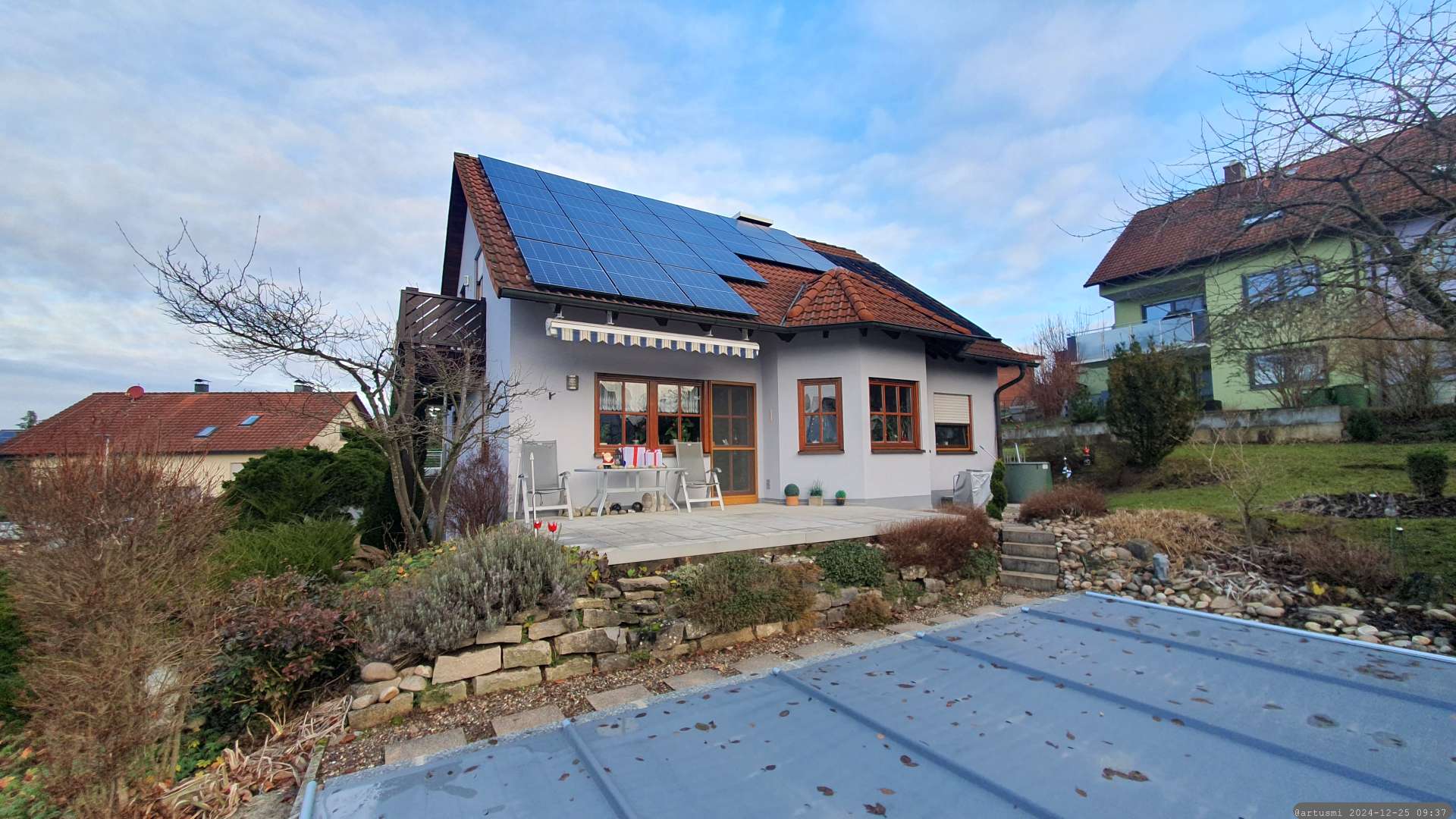

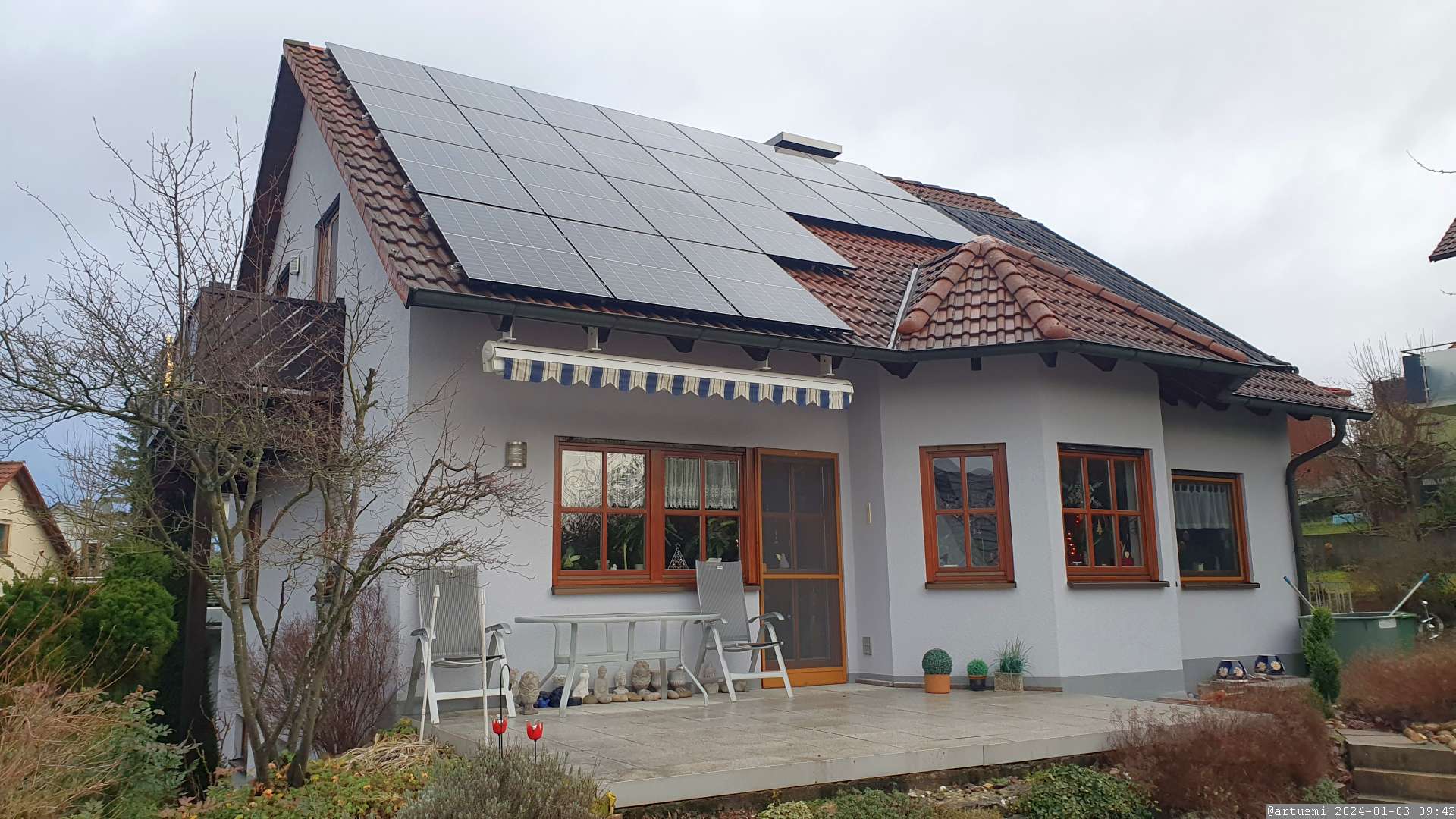

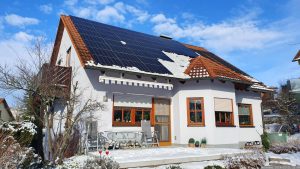

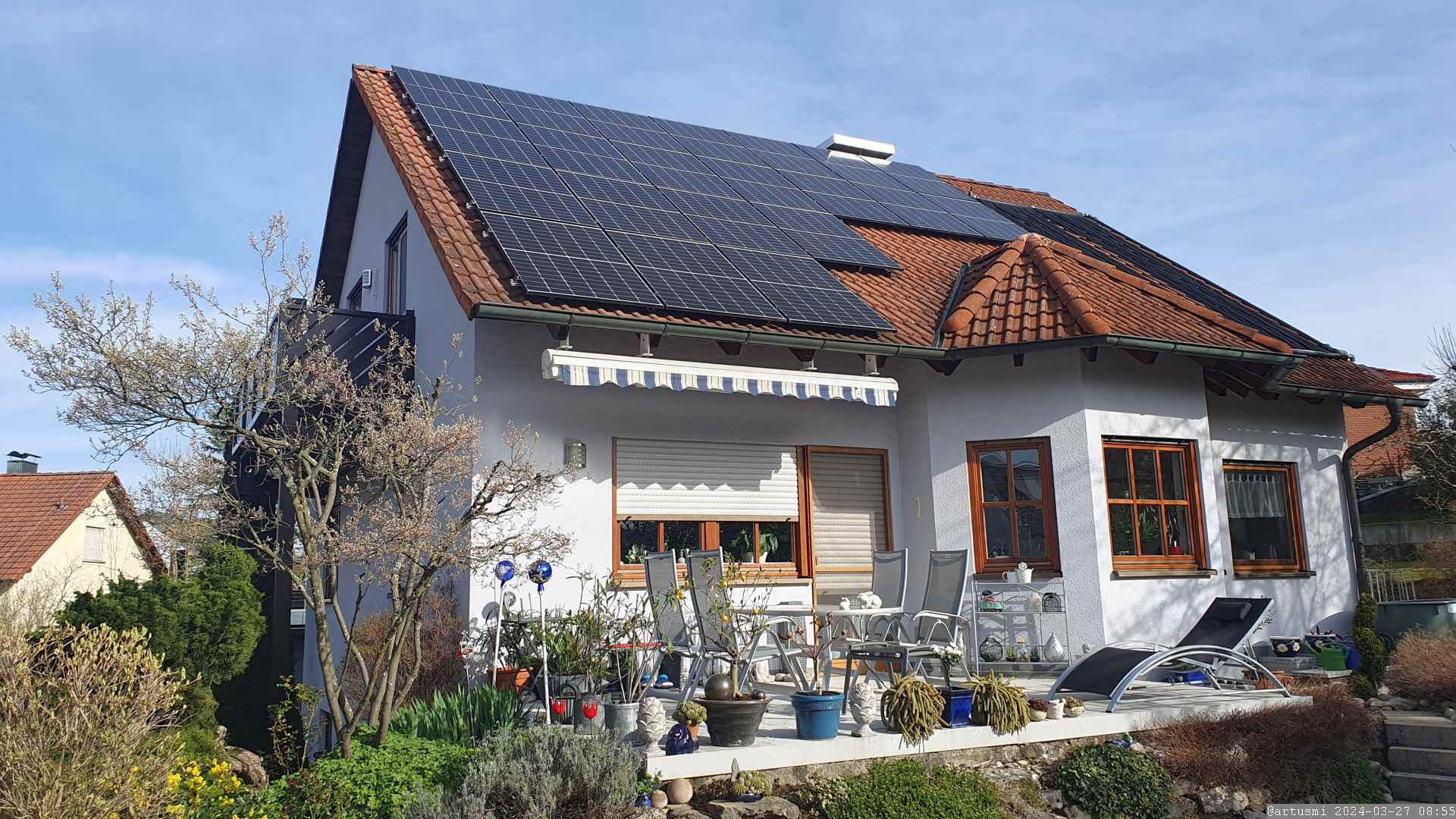

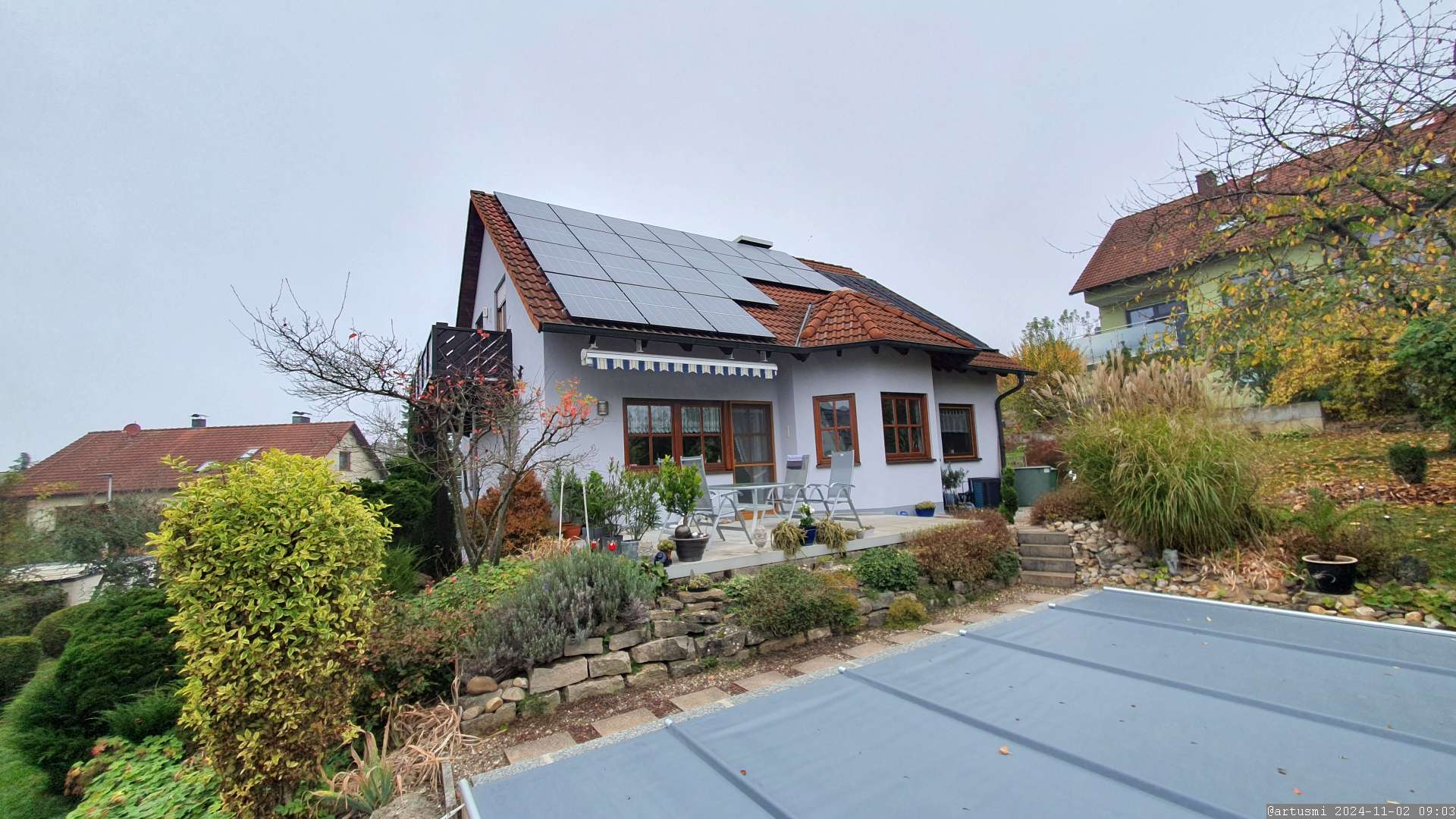

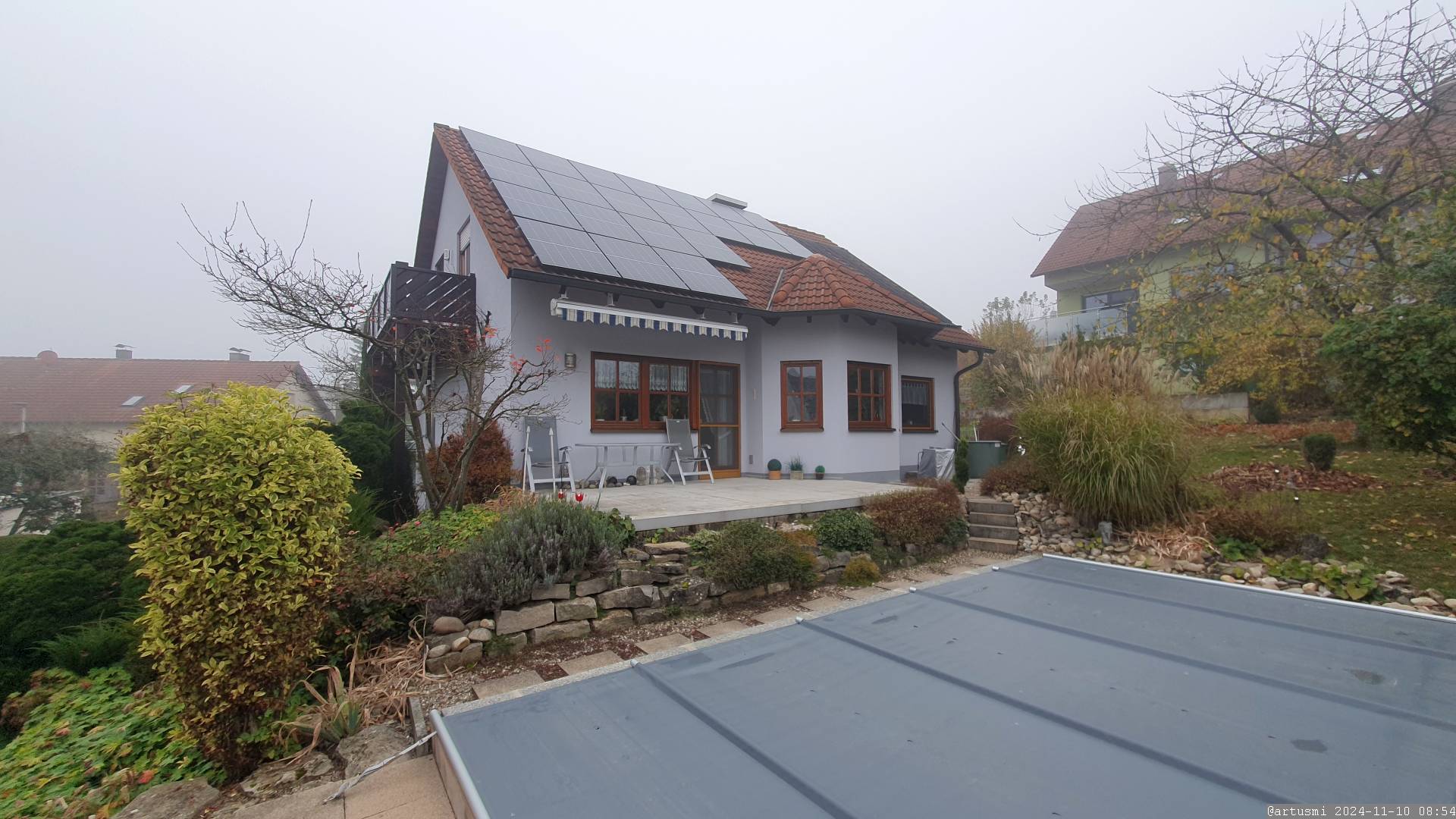

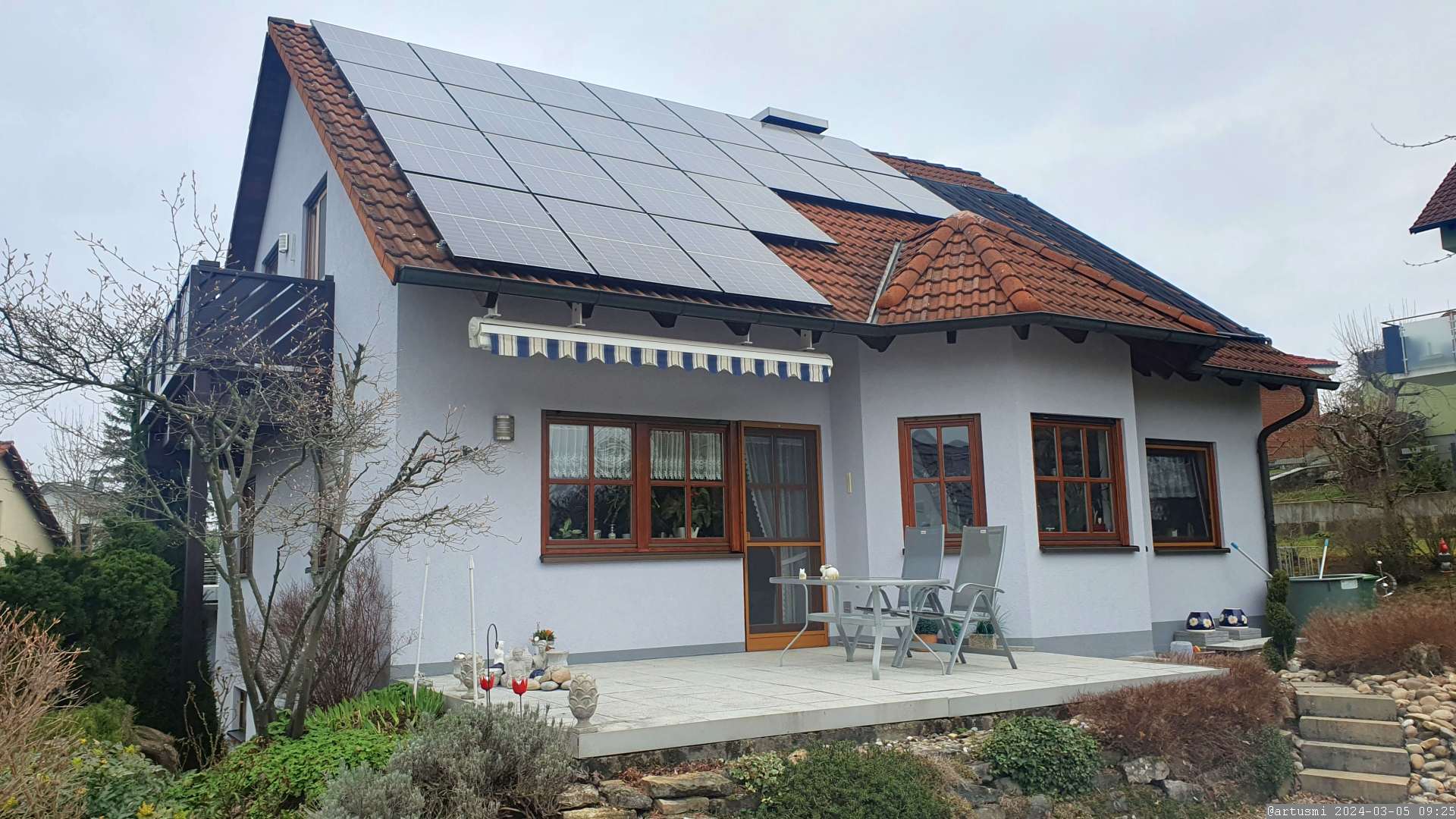

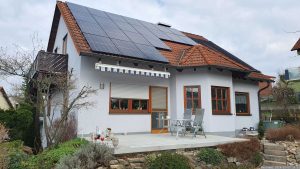

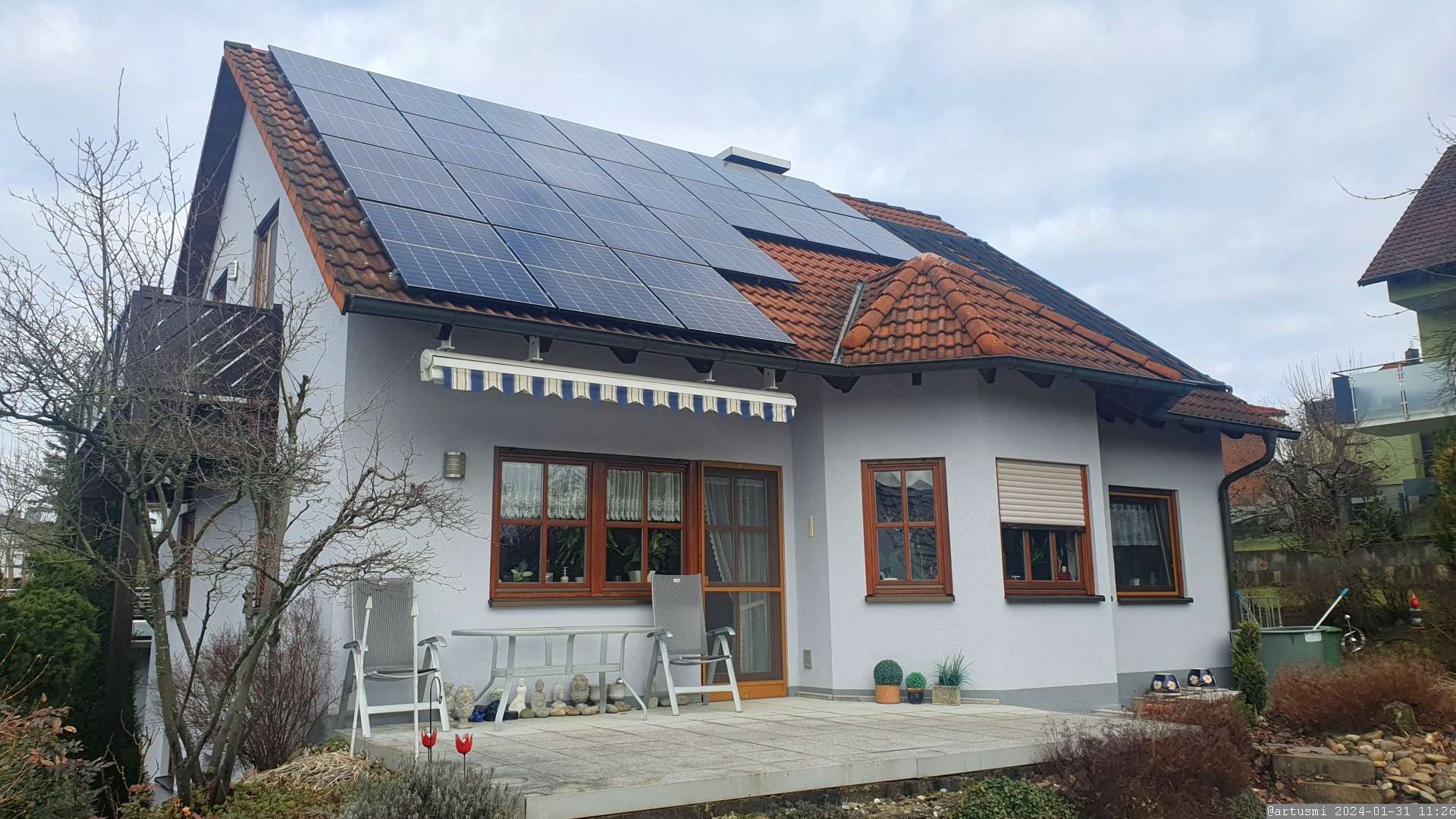

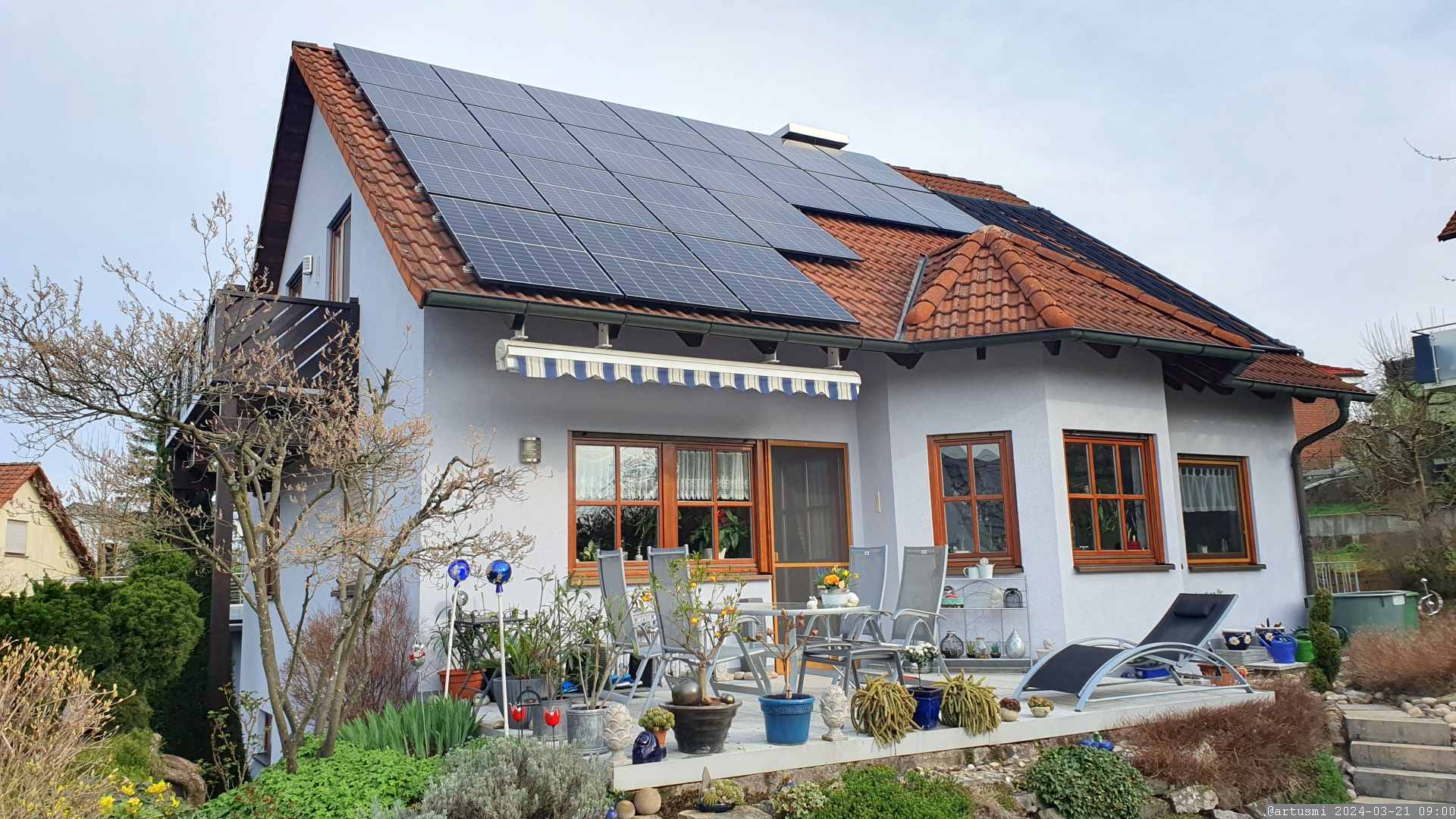

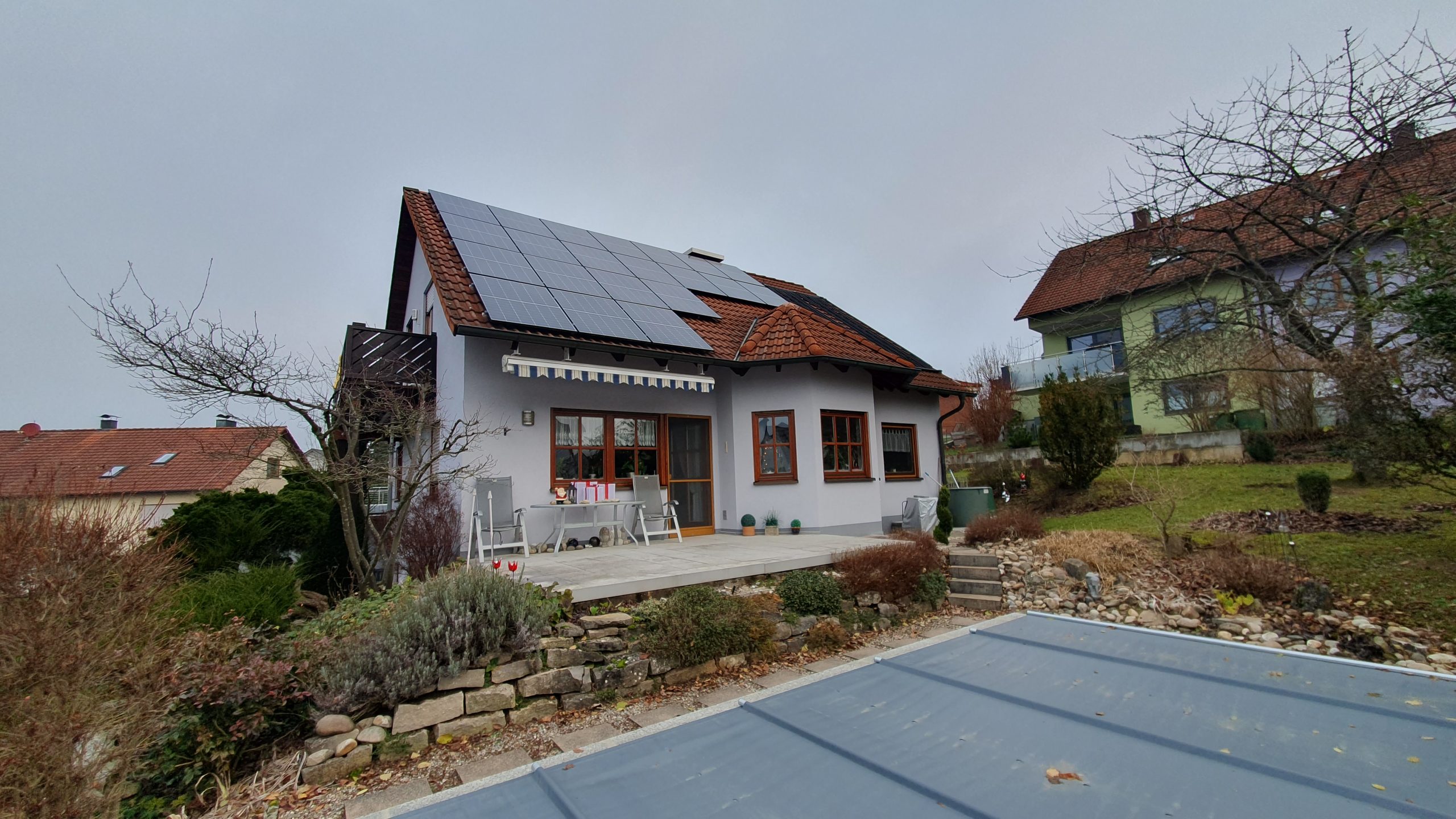

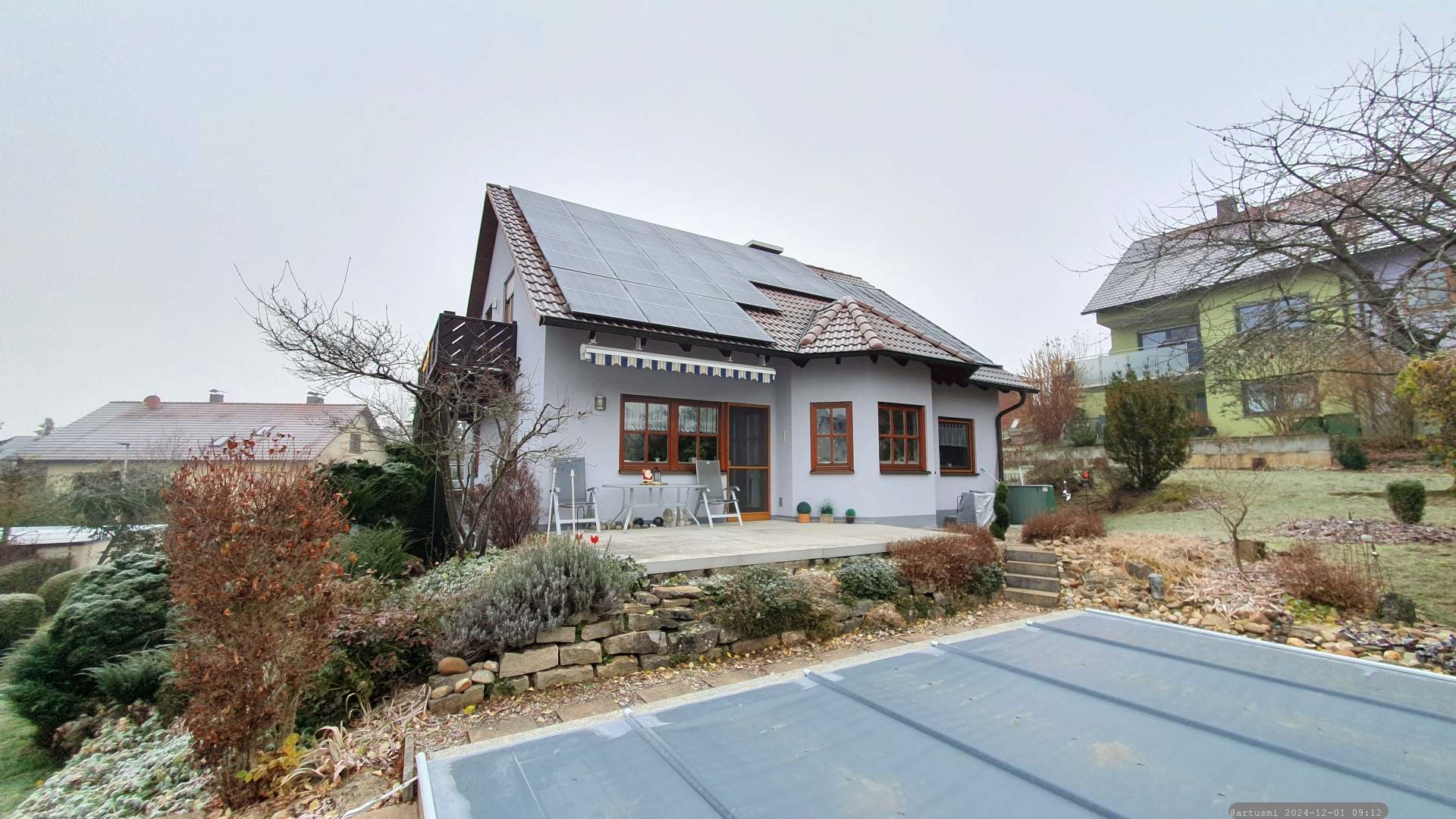

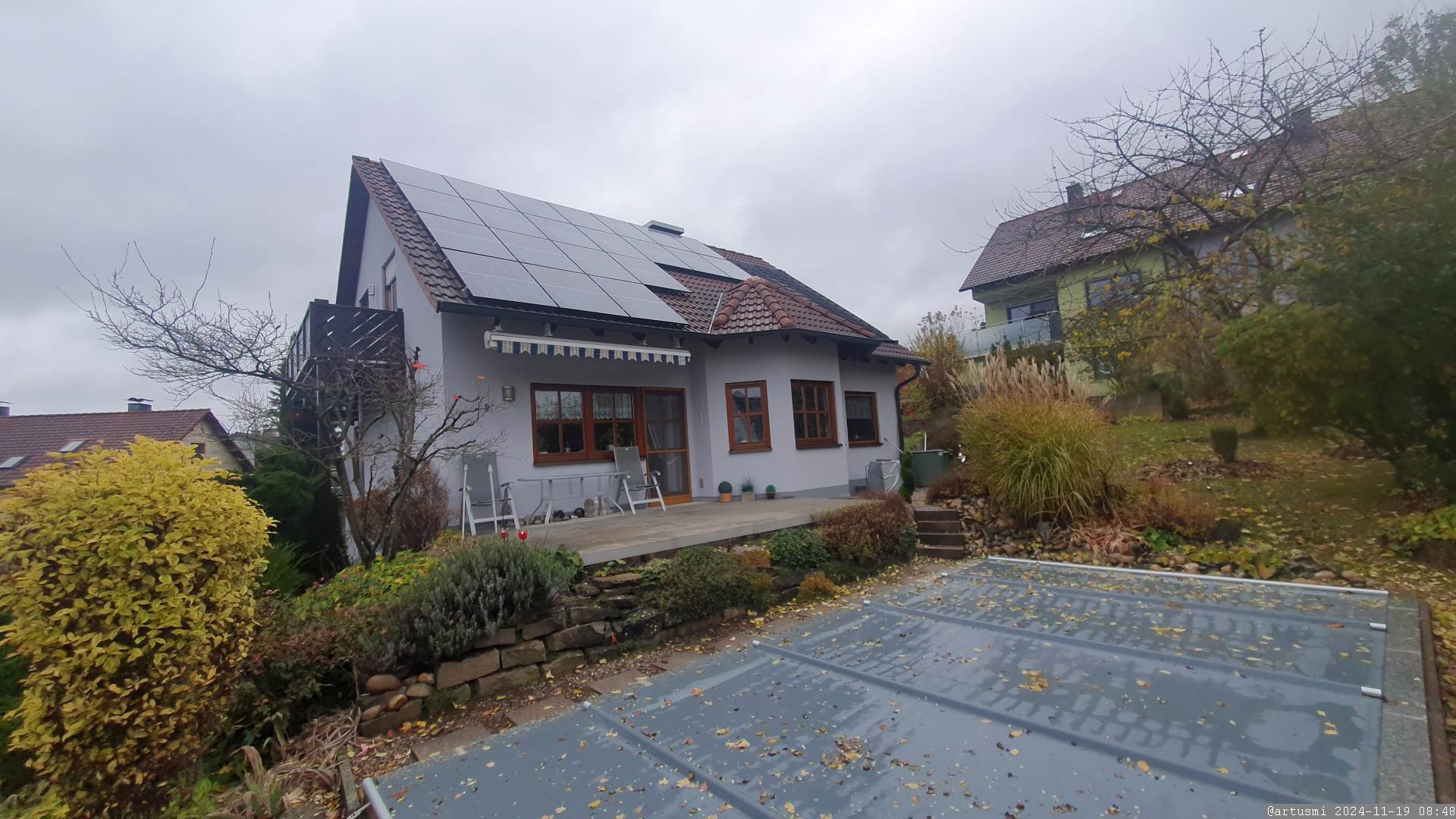

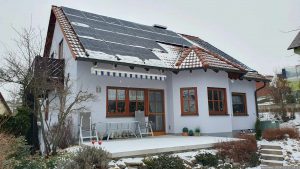

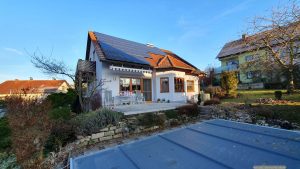

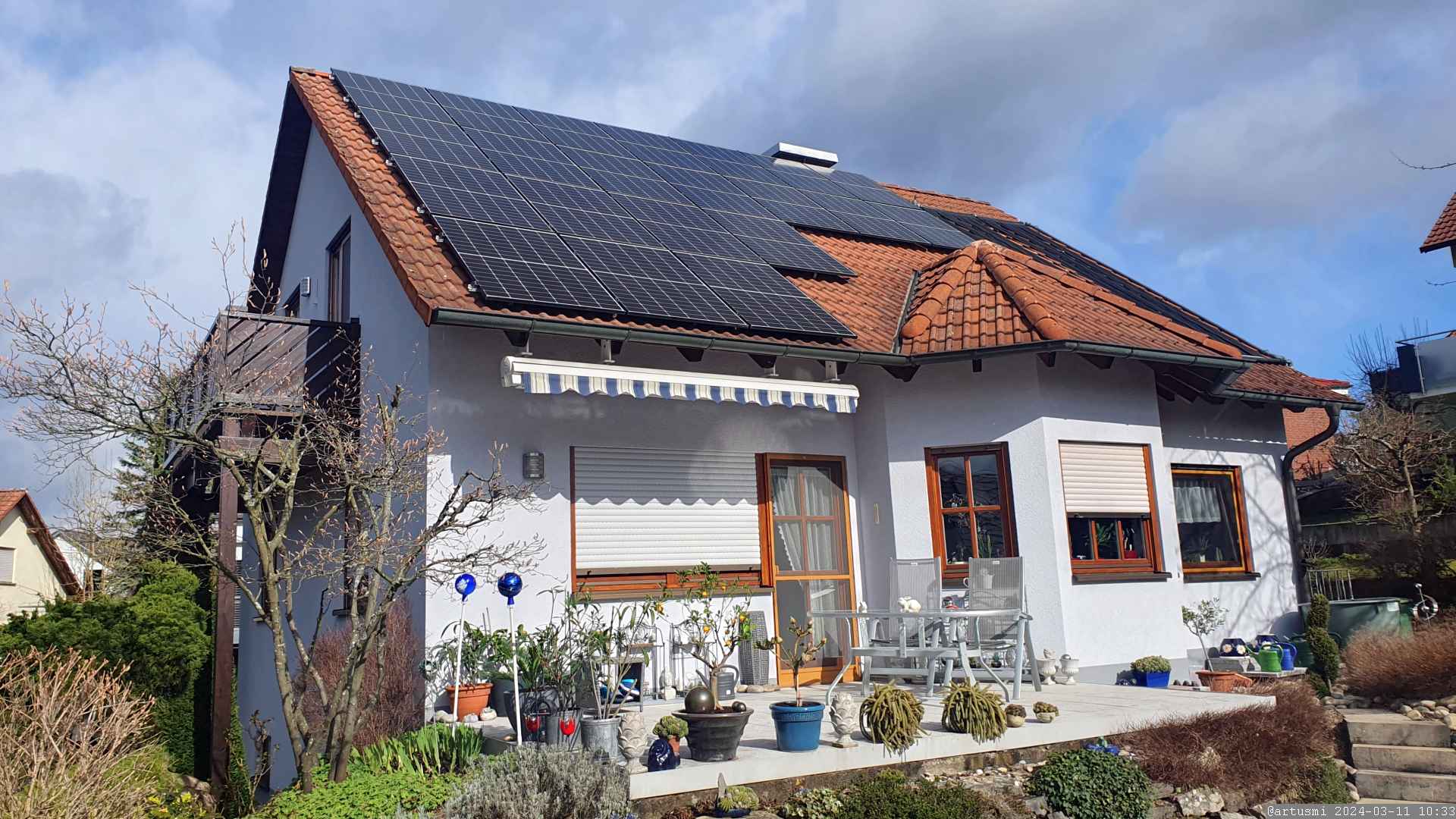

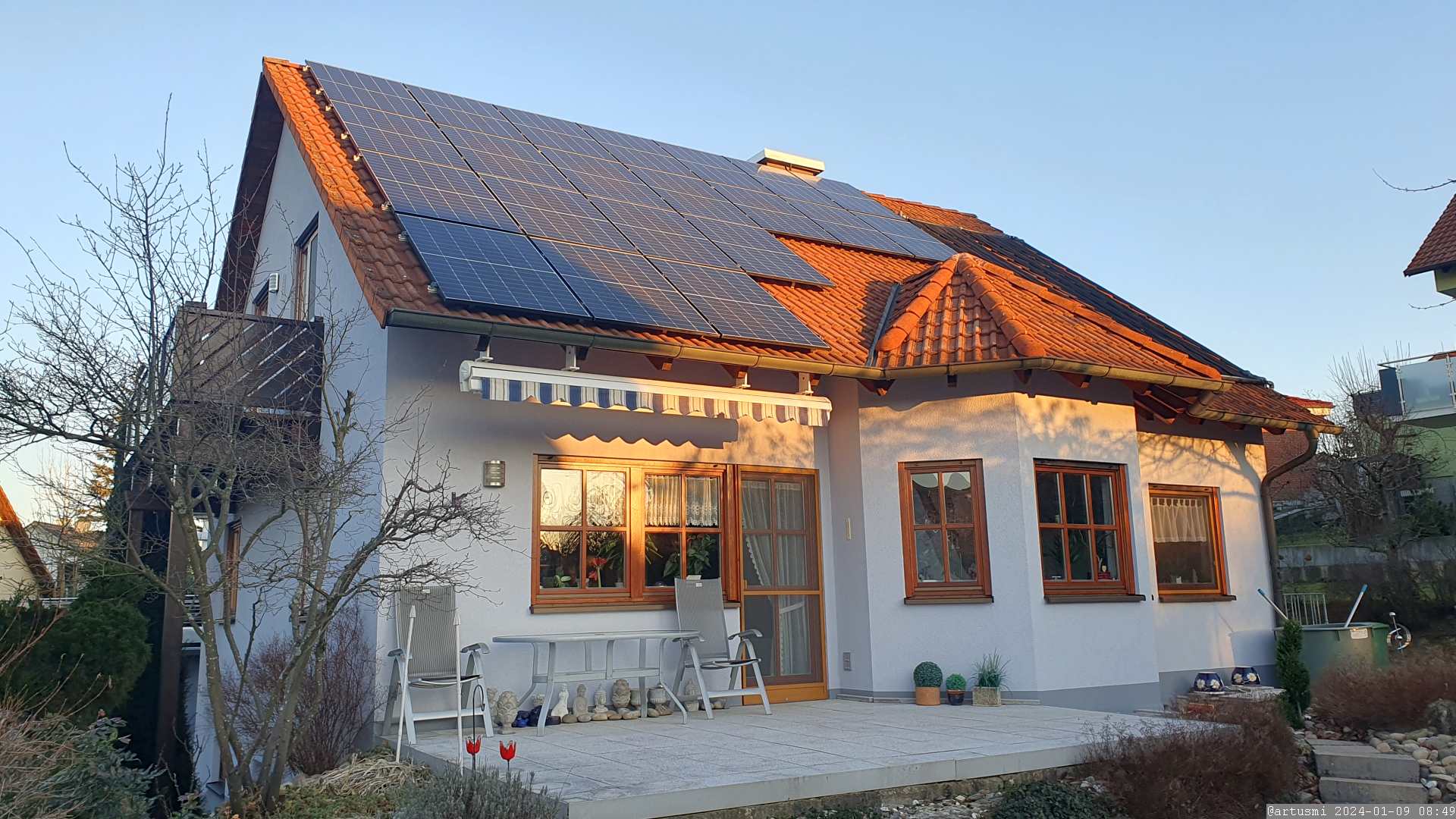

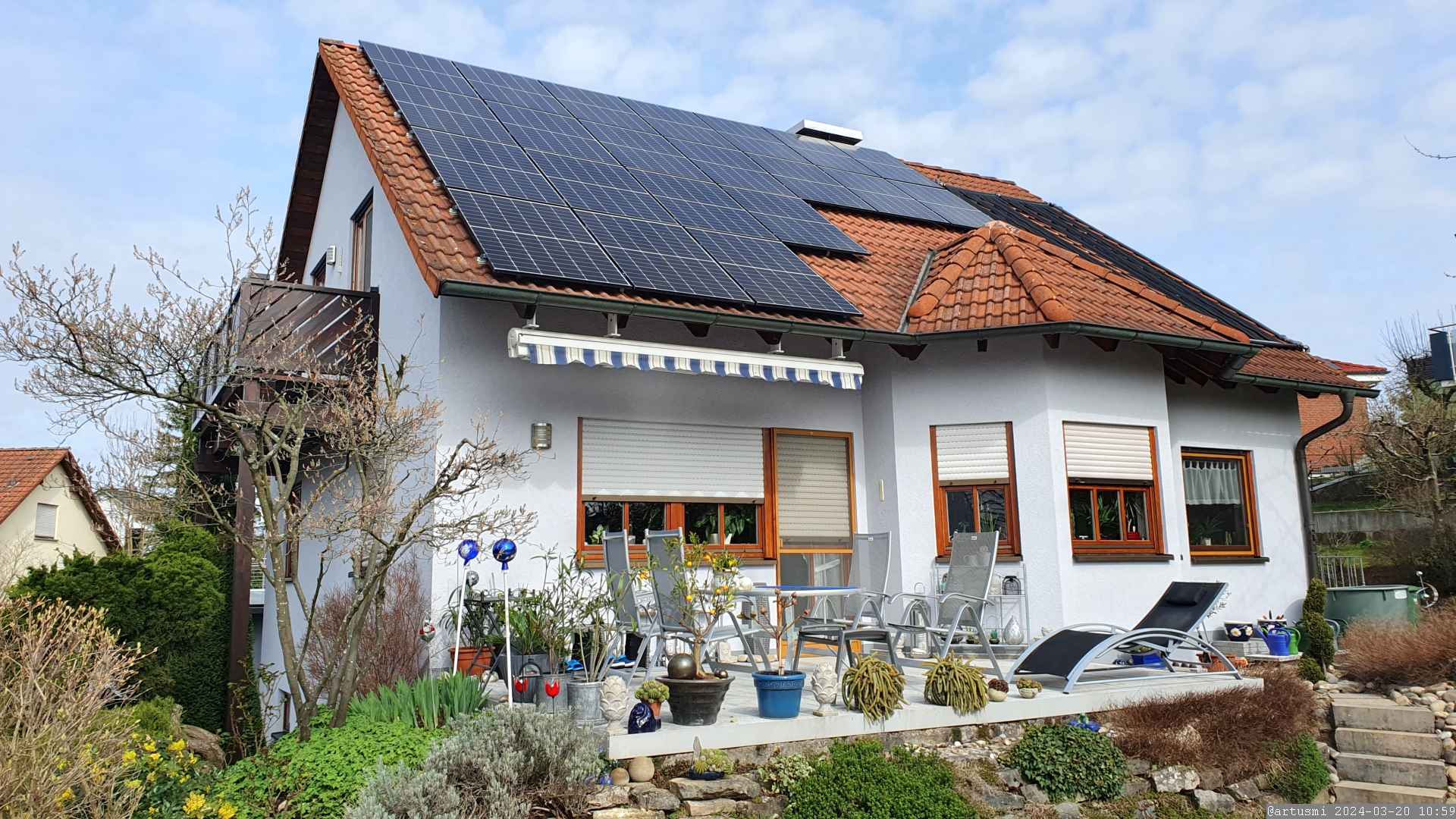

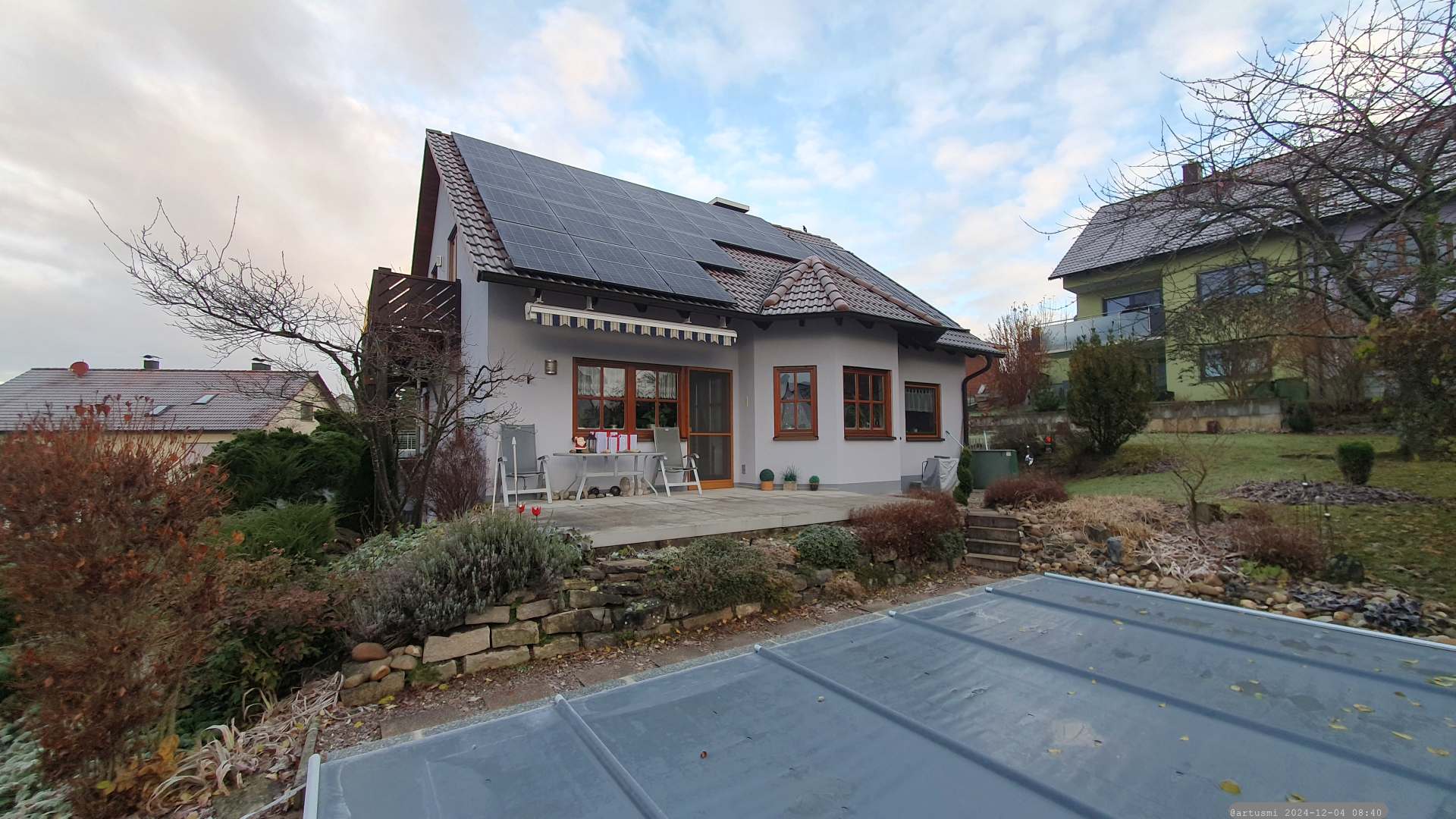

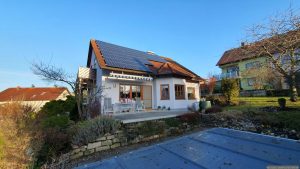

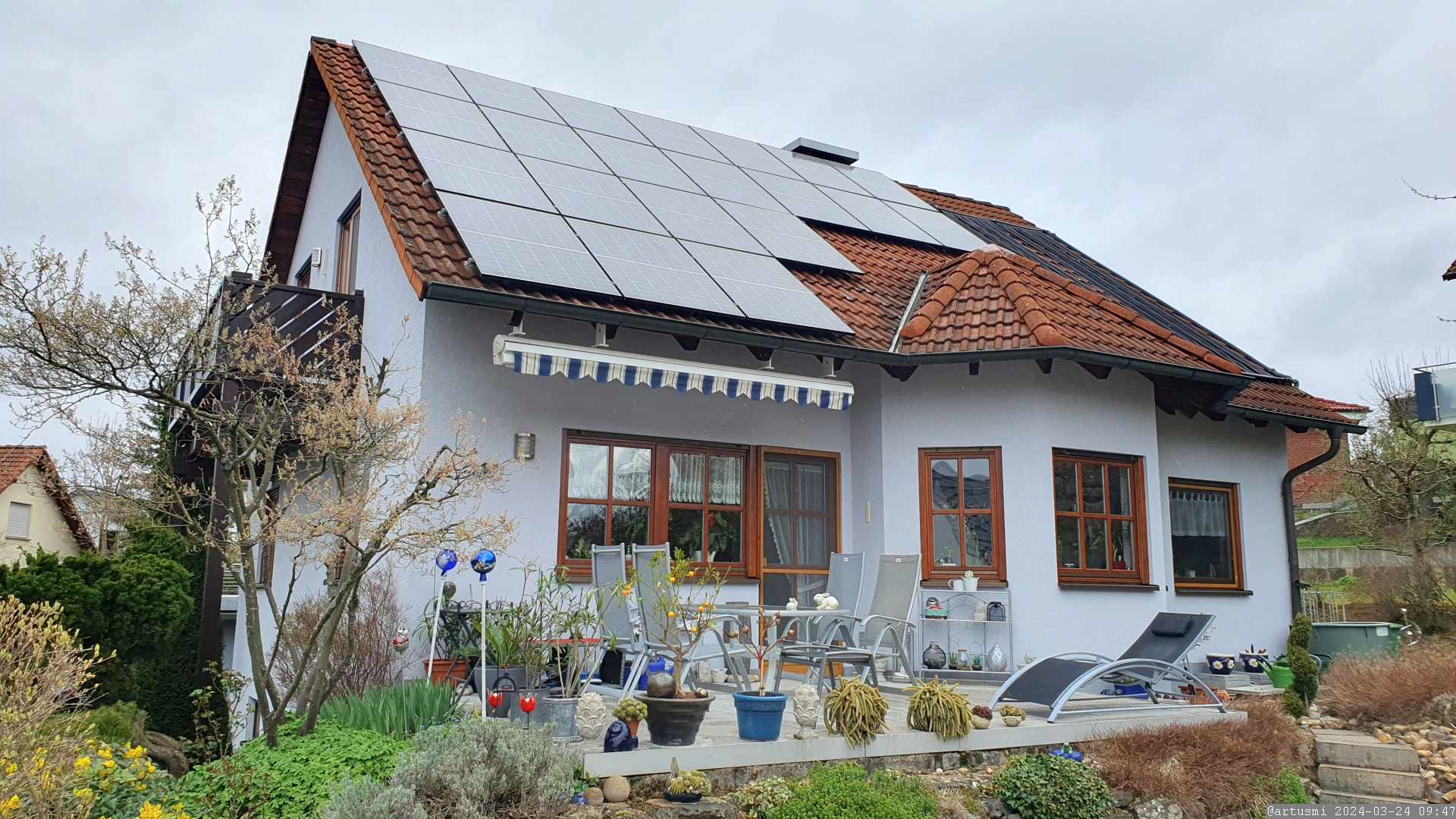

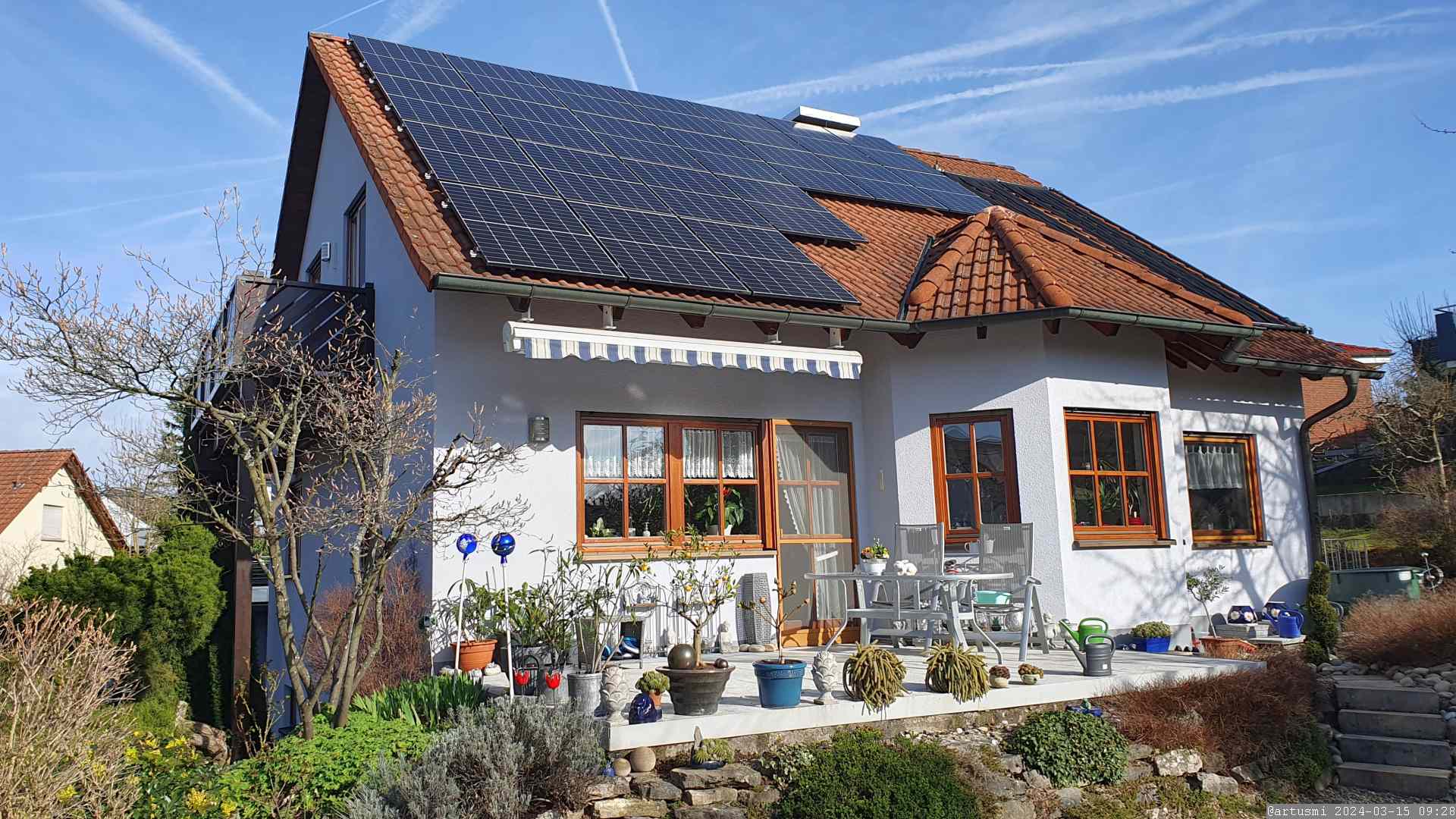

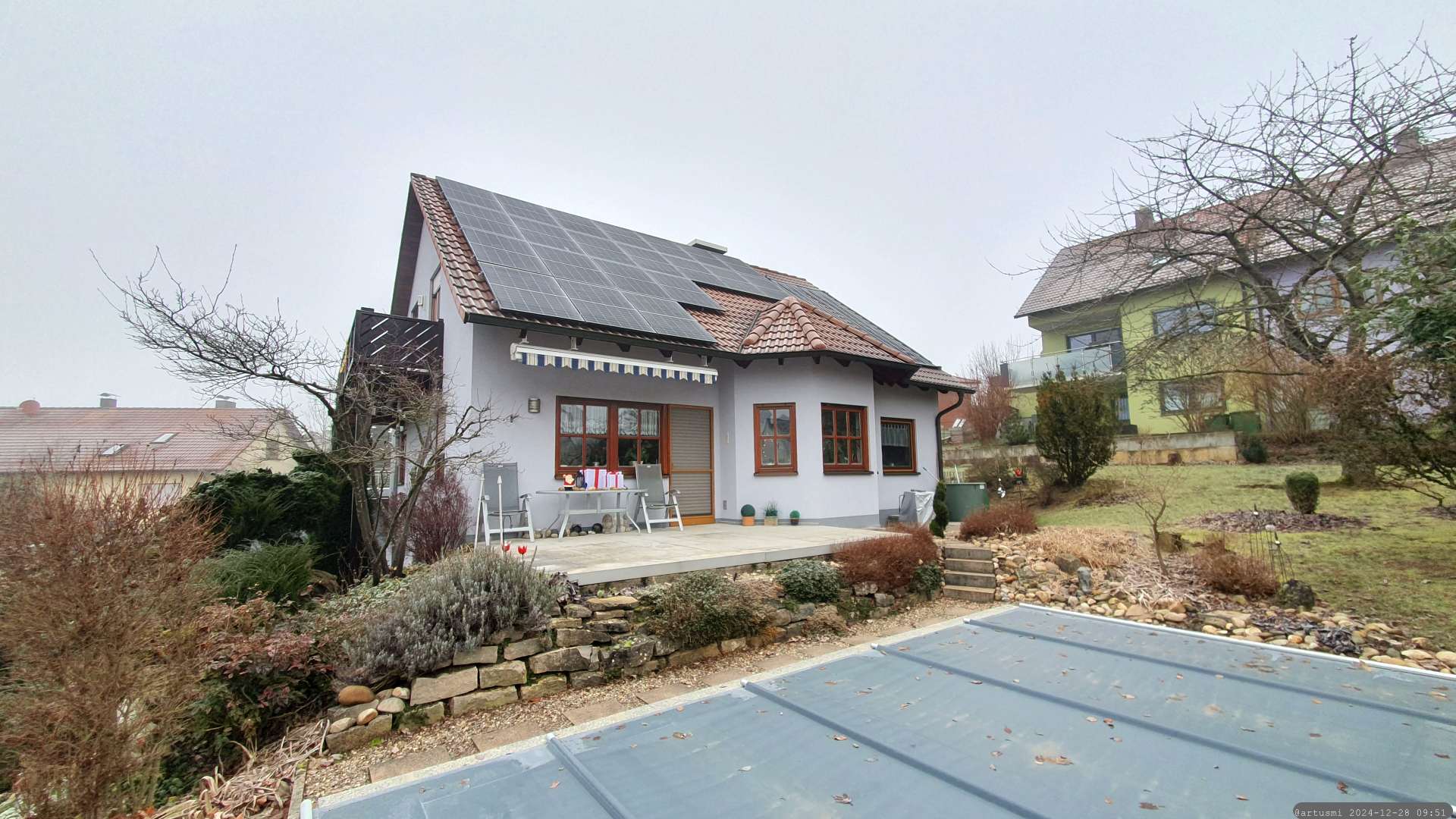

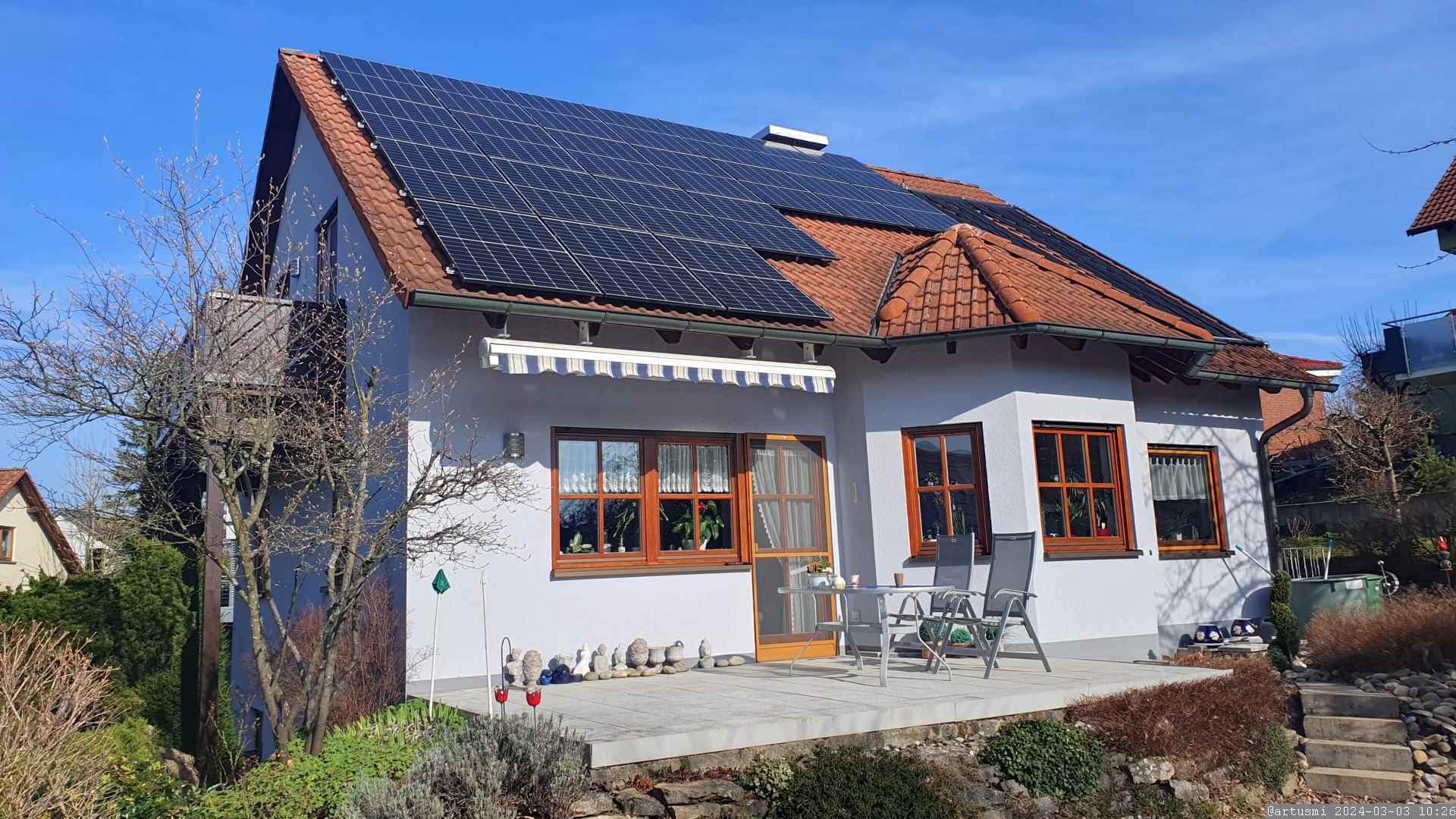

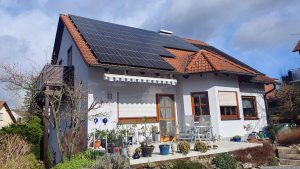

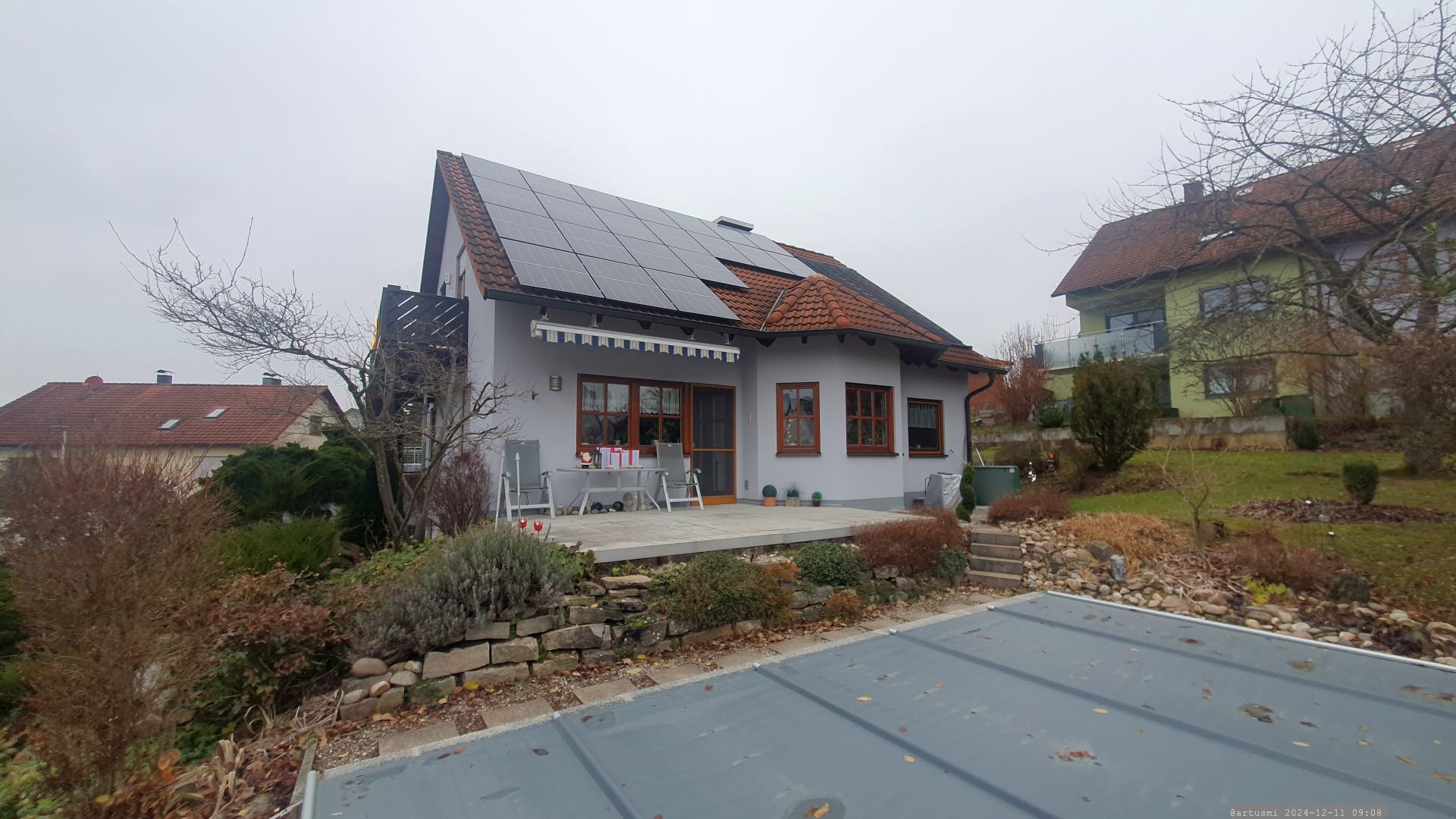

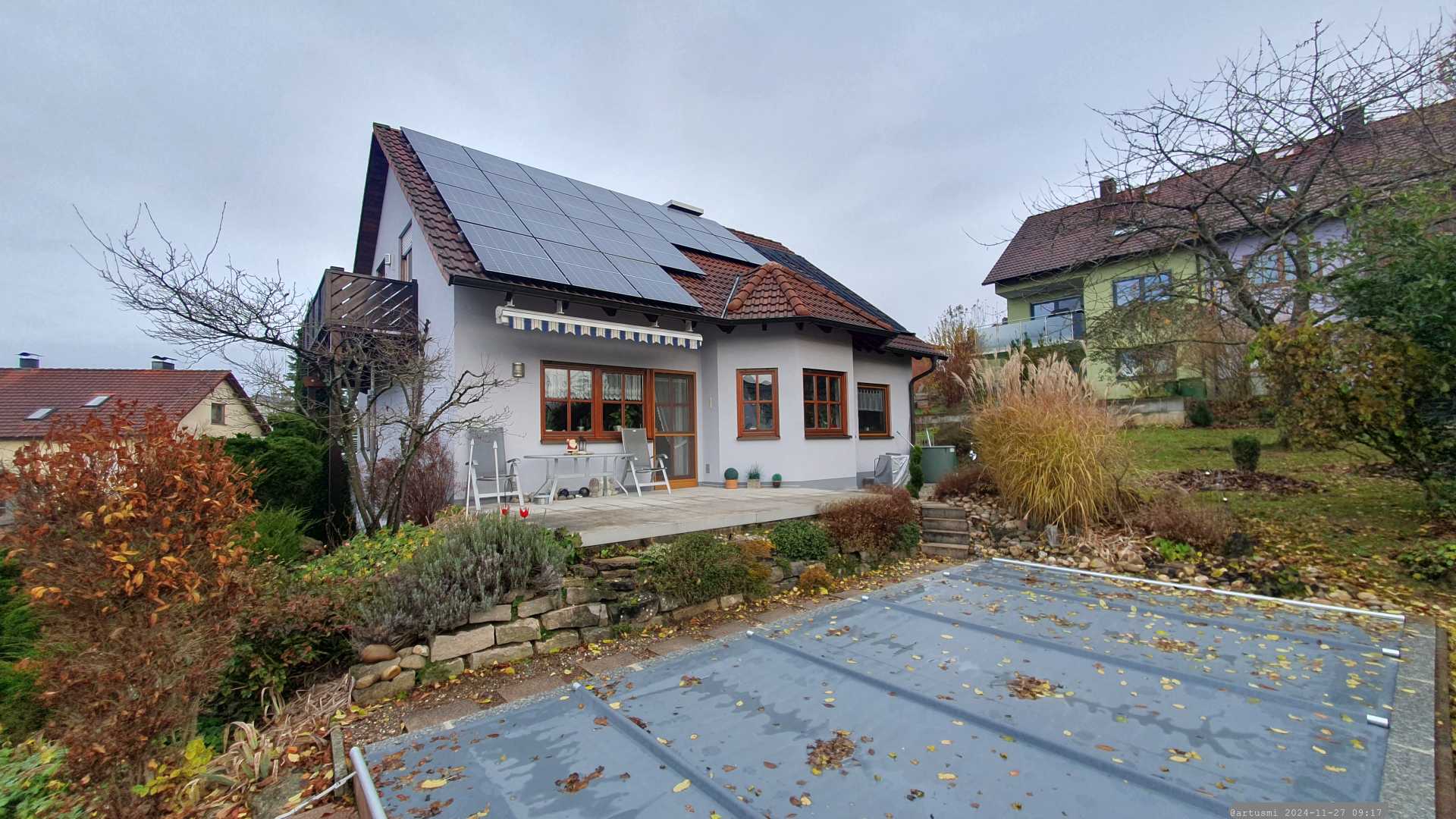

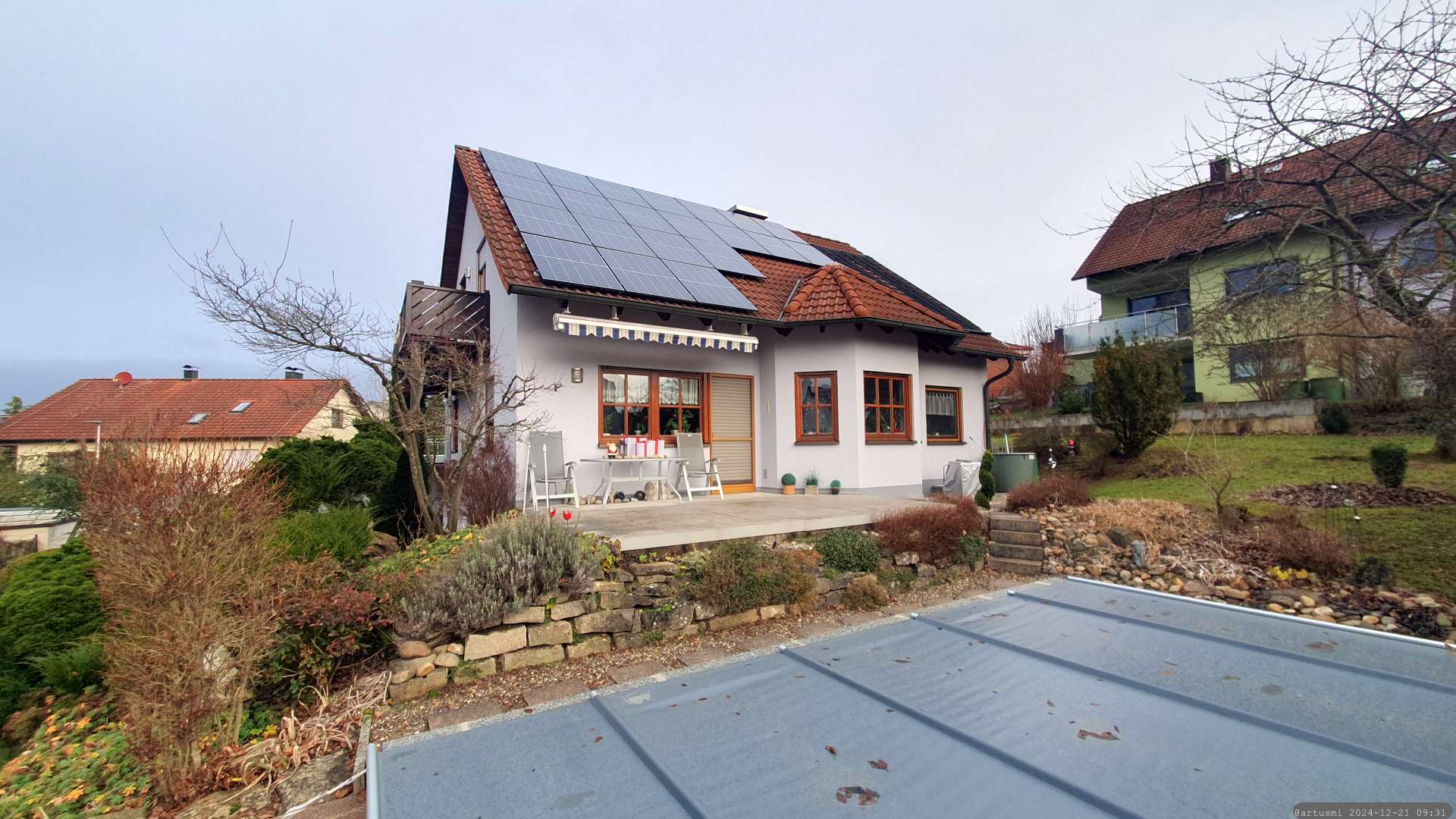

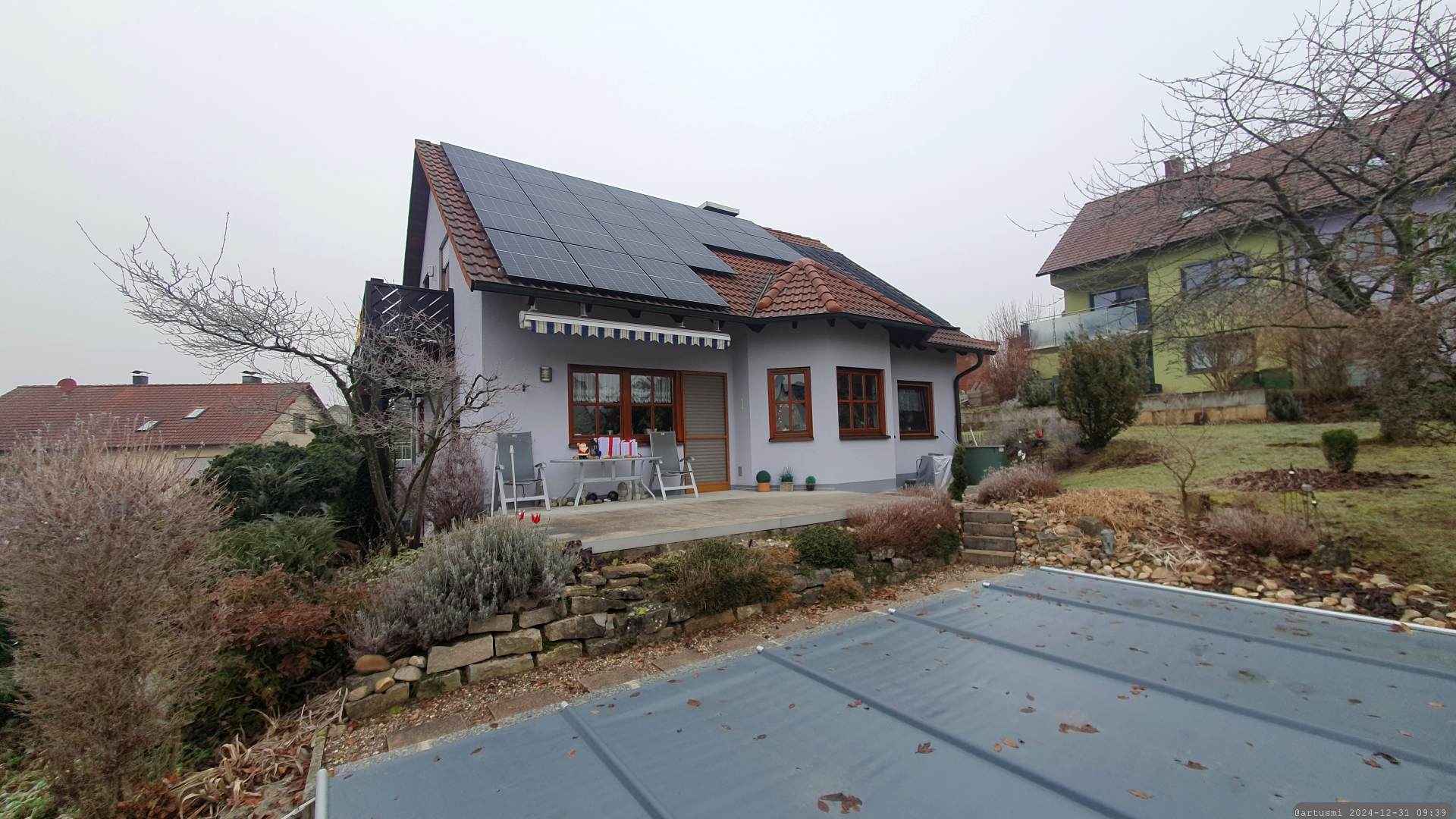

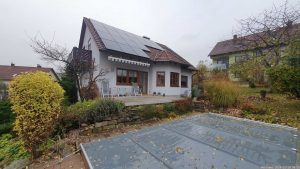

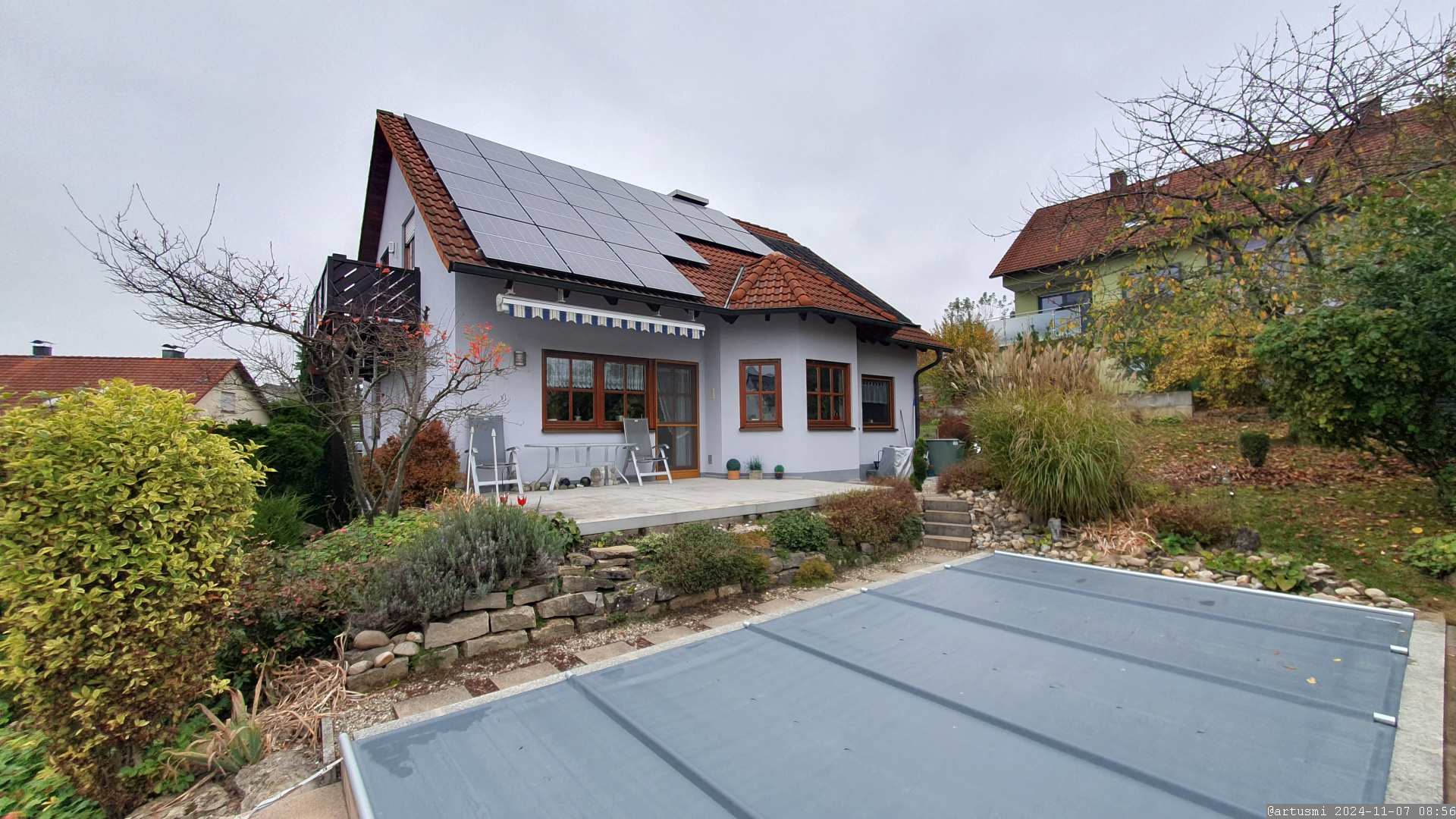

Licht und Schatten an unserer PV-Anlage
Weitere Infos:
und in den Monatsbeiträgen
- PV-Anlage und Wärmepumpe im Januar 2024
- PV-Anlage und Wärmepumpe im Februar 2024
- PV-Anlage und Wärmepumpe im März 2024
- PV-Anlage und Wärmepumpe im April 2024
- PV-Anlage und Wärmepumpe im Mai 2024
- PV-Anlage und Wärmepumpe im Juni 2024
- PV-Anlage und Wärmepumpe im Juli 2024
- PV-Anlage und Wärmepumpe im August 2024
